AR03.20-P-3000BA Replace Front Crankshaft Radial Sealing Ring



AR03.20-P-3000BA Replace front crankshaft radial sealing ring

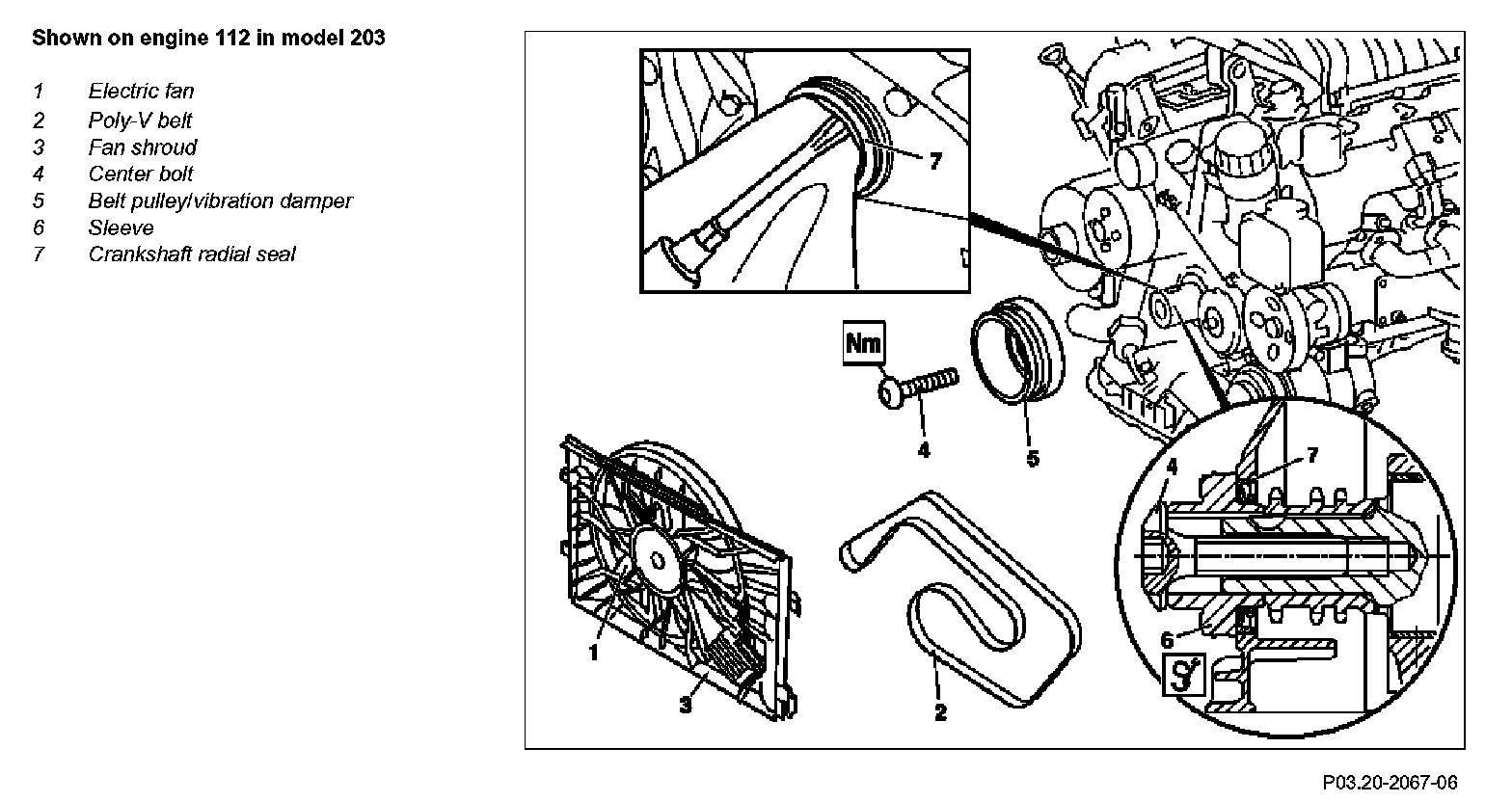

Component Identification:




Modification notes:

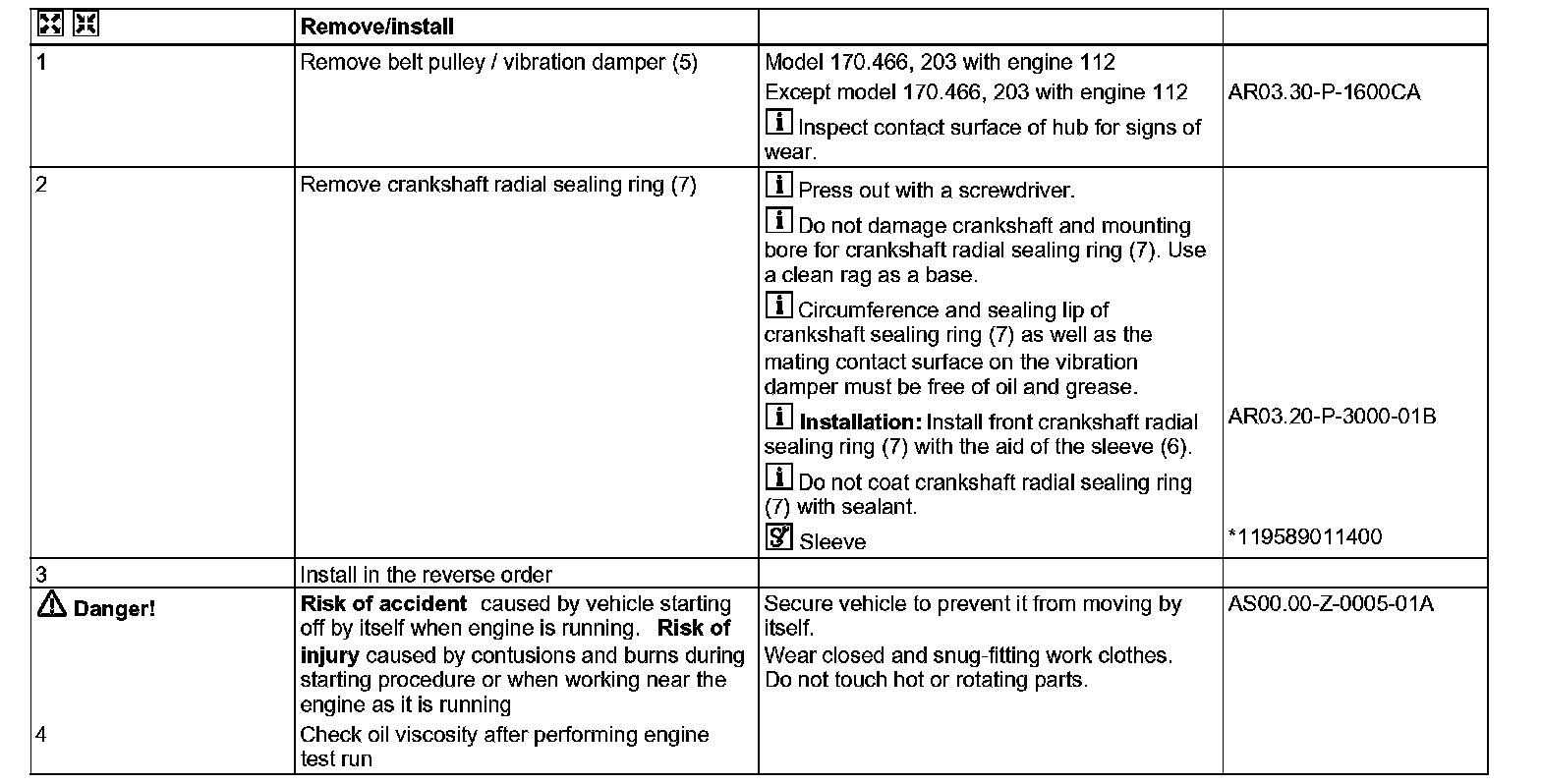

Steps 1-4:

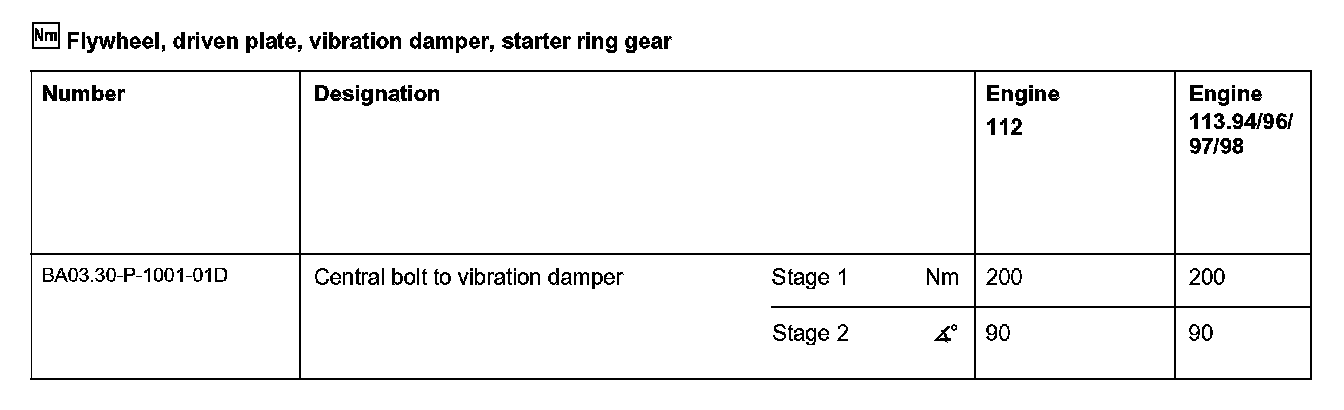

Flywheel, driven plate, vibration damper, starter ring gear:




Special Tools:
