AH01.45-P-0001-01PV Notes on Application of Sealing Compound to Oil Pan

Notes on application of sealing compound to oil pan

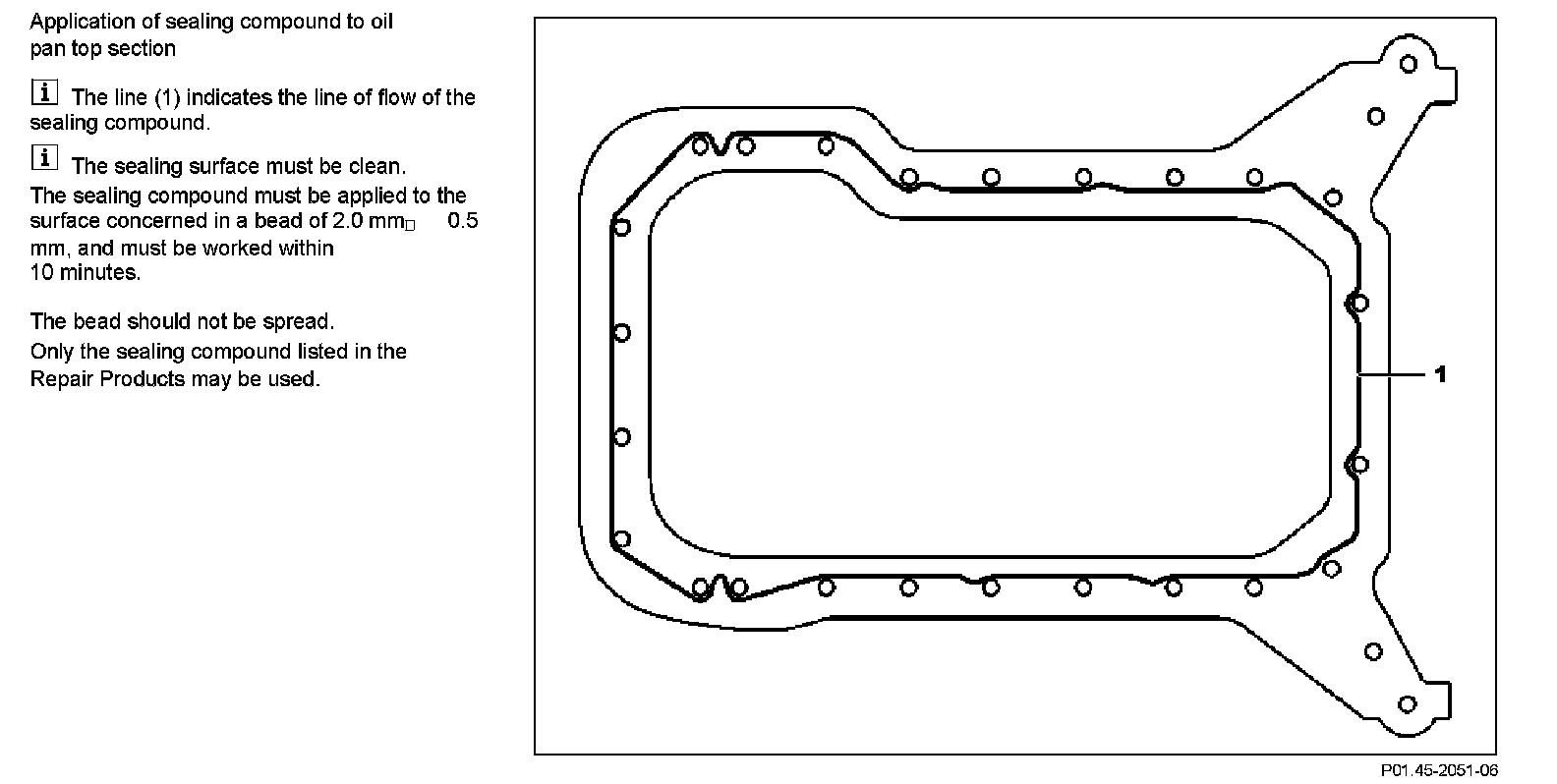

Application of sealing compound to oil pan top section
The line (1) indicates the line of flow of the sealing compound.
The sealing surface must be clean.
The sealing compound must be applied to the surface concerned in a bead of 2.0 mm - 0.5 mm, and must be worked within 10 minutes.
The bead should not be spread.
Only the sealing compound listed in the Repair Products may be used.

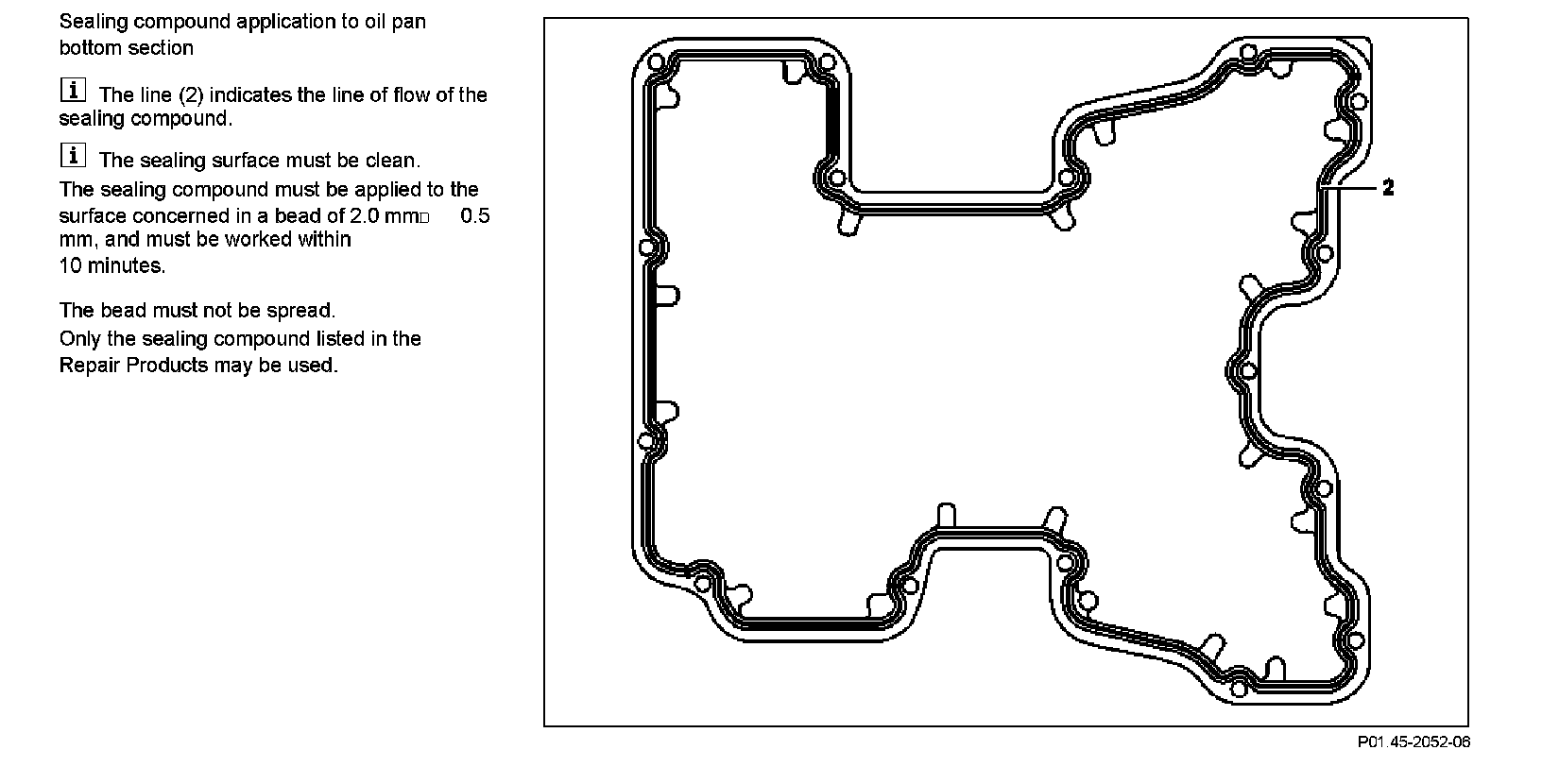

Sealing compound application to oil pan bottom section
The line (2) indicates the line of flow of the sealing compound.
The sealing surface must be clean.

The sealing compound must be applied to the surface concerned in a bead of 2.0 mm - 0.5 mm, and must be worked within 10 minutes.
The bead must not be spread.
Only the sealing compound listed in the Repair Products may be used.
