AR22.10-P-4350PV Remove/Install Left Engine Support

Remove/Install Left Engine Support






DANGER:
- Risk of death, Death may result if vehicle slips or topples from the lifting platform.
- Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.

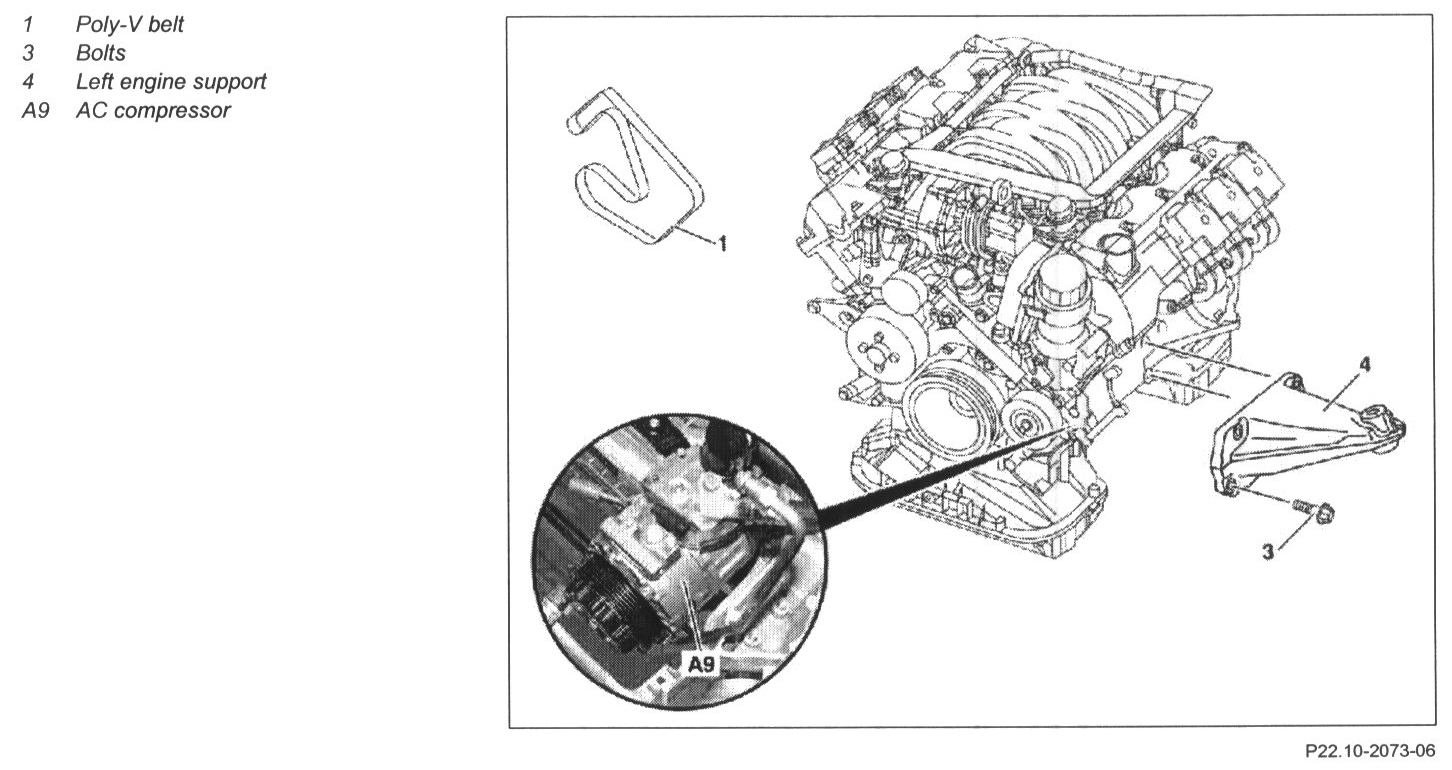

1 Remove engine mounts
2 Remove poly V-belt (1)
3 Dismount refrigerant compressor (A9)

NOTE: Attach refrigerant compressor (A9) with connected lines in the engine compartment.

4 Dismount left engine support (4) from crankcase

NOTE: To do this, unscrew screws (3).

CAUTION: Installation: Bolts (3) must be replaced, because the connection can loosen or the screws can tear off if reused.

5 Remove left engine support (4)
6 Install in the reverse order.
