Valve Spring: Service and Repair

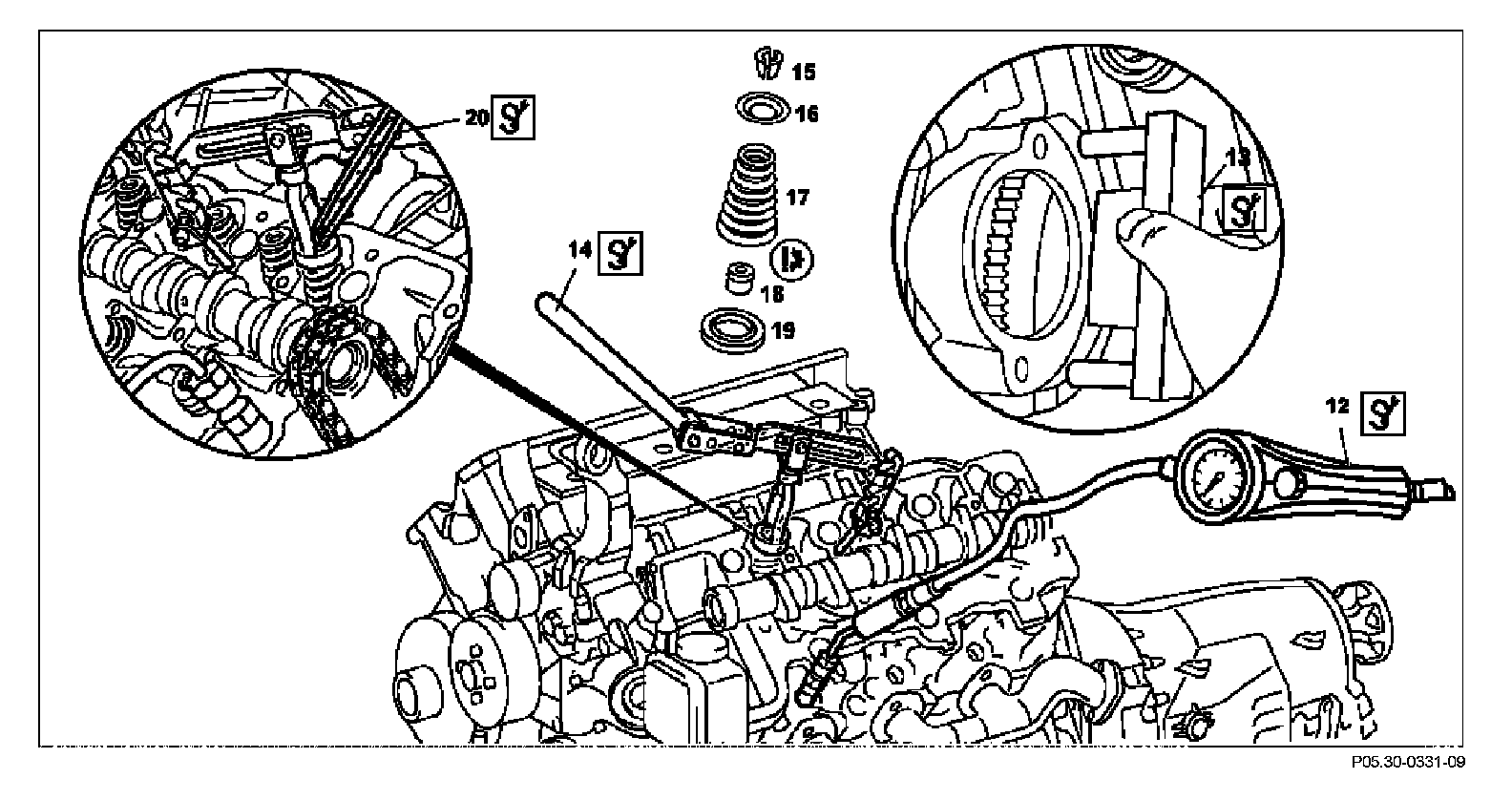

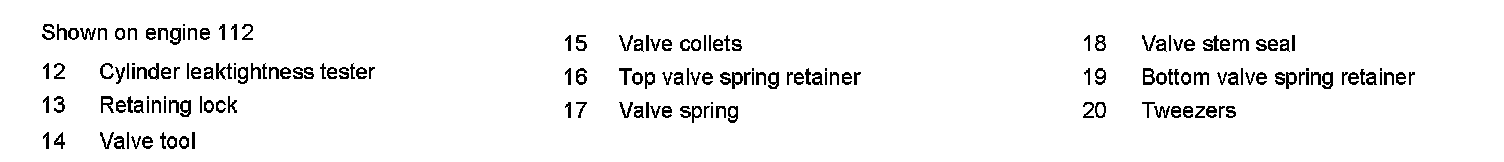

Remove/Install Valve Springs and / or Valve Stem Seals

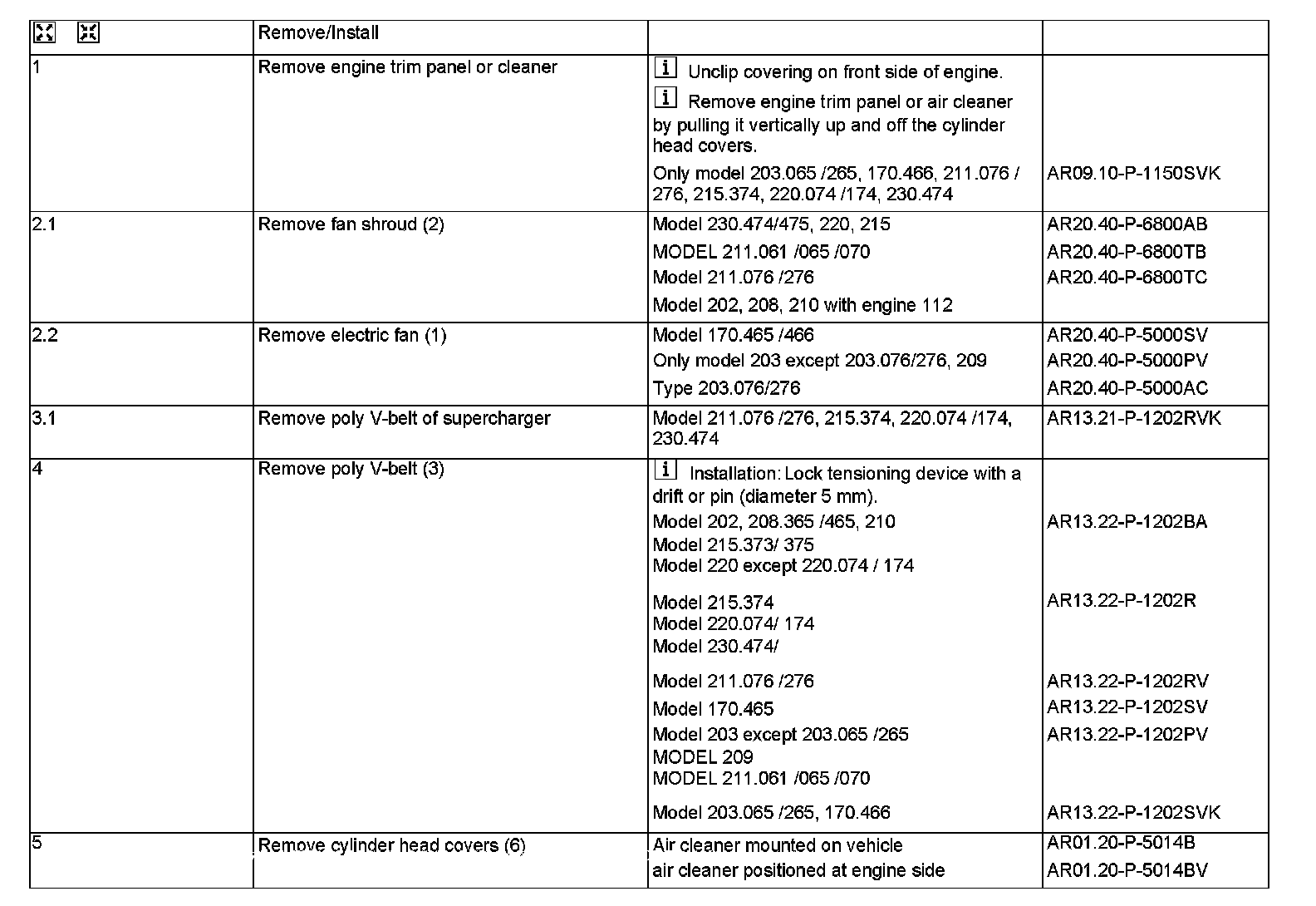

Steps 1-5:

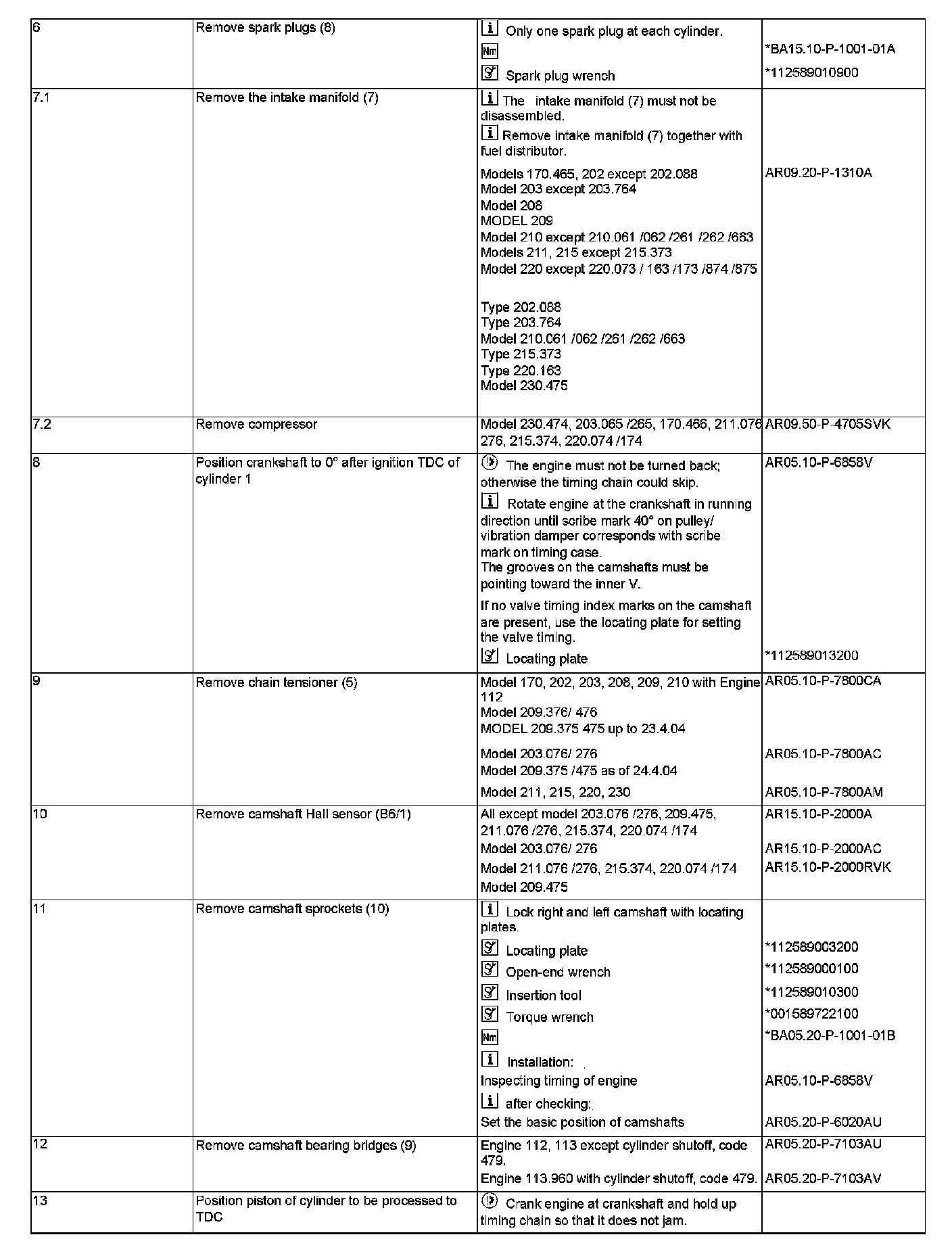

Steps 6-13:





Steps 14-24:

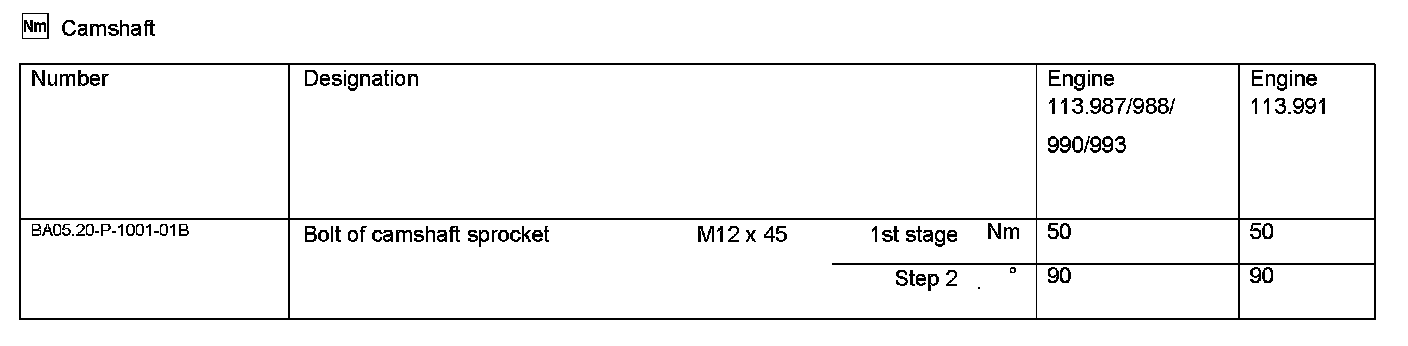

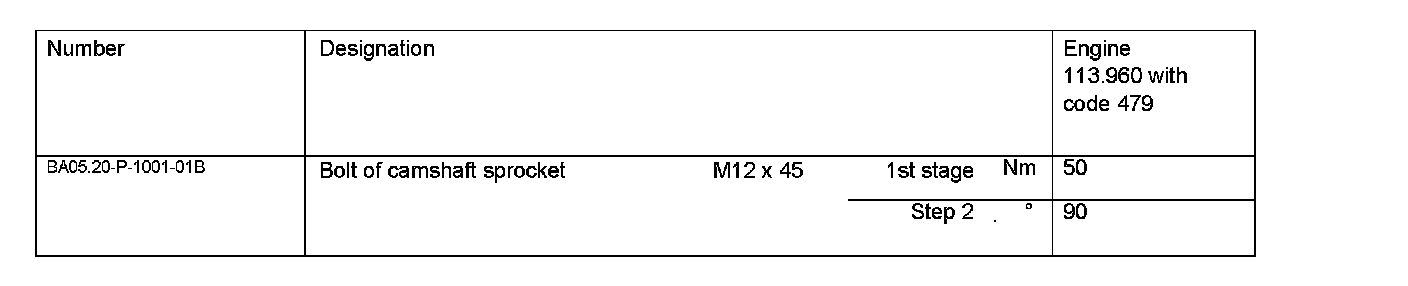

Camshaft:
