Valve Seat: Specifications



BE05.30-P-1000-03C Check values for valve seat rings

Modification notes:

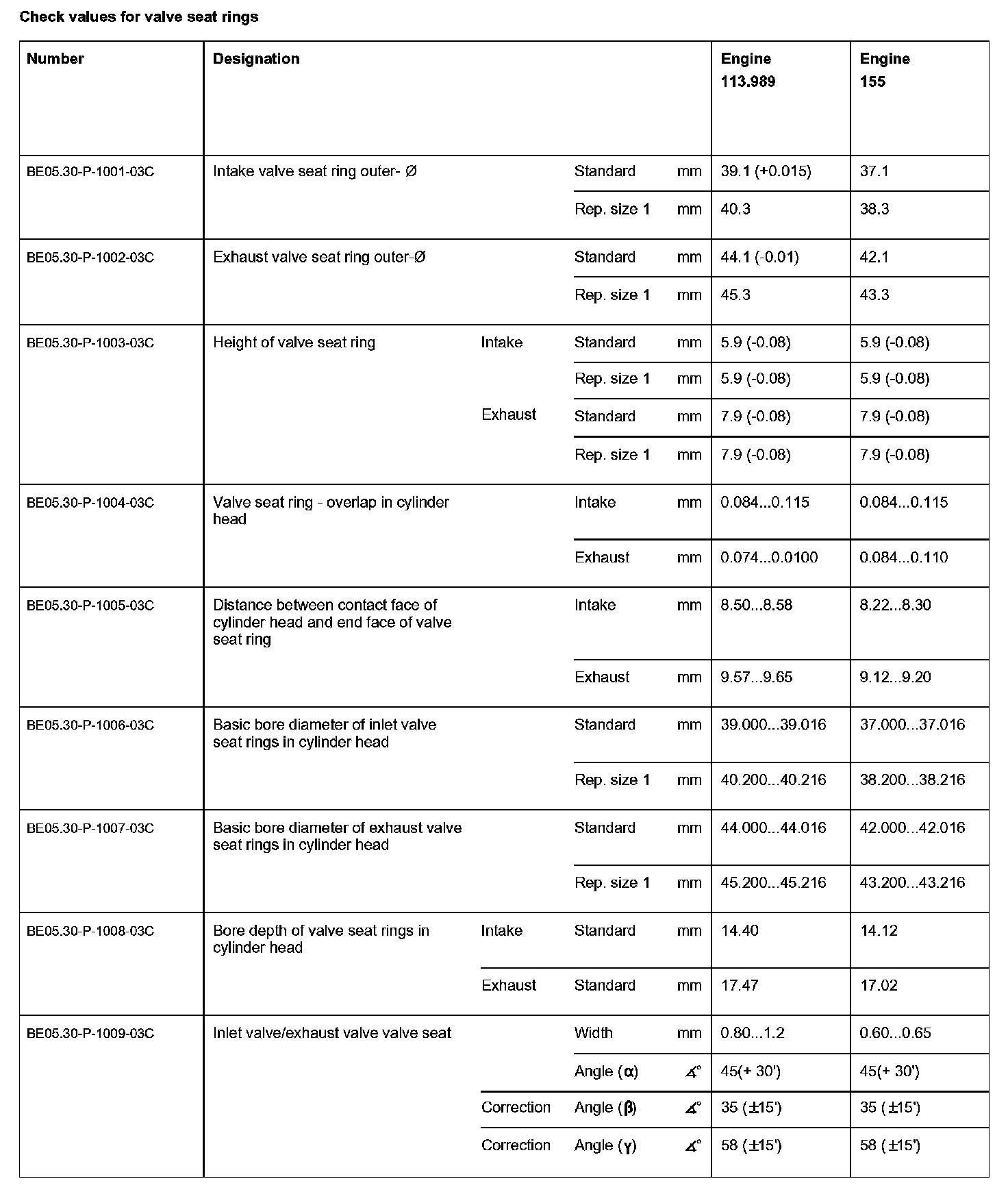

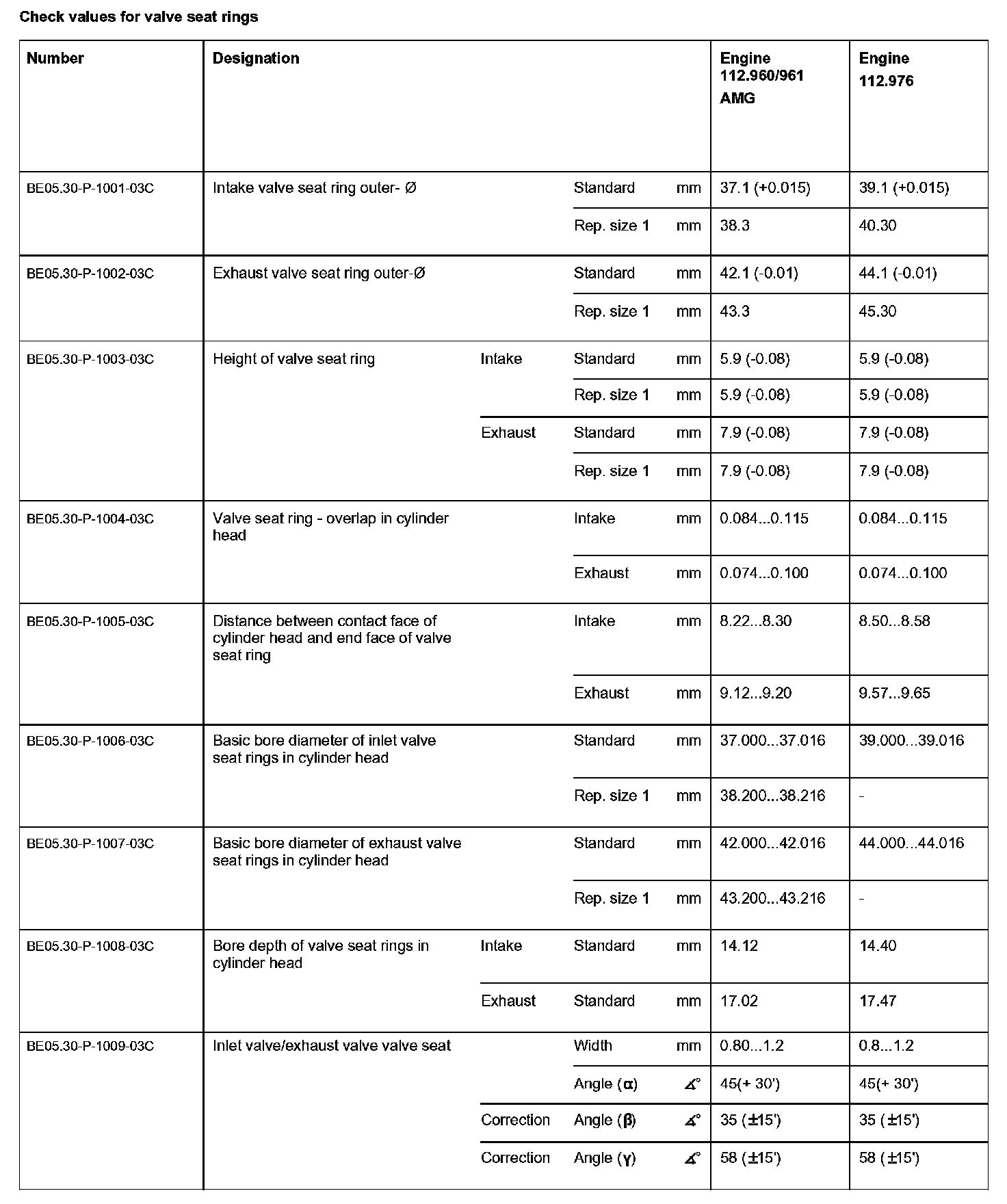

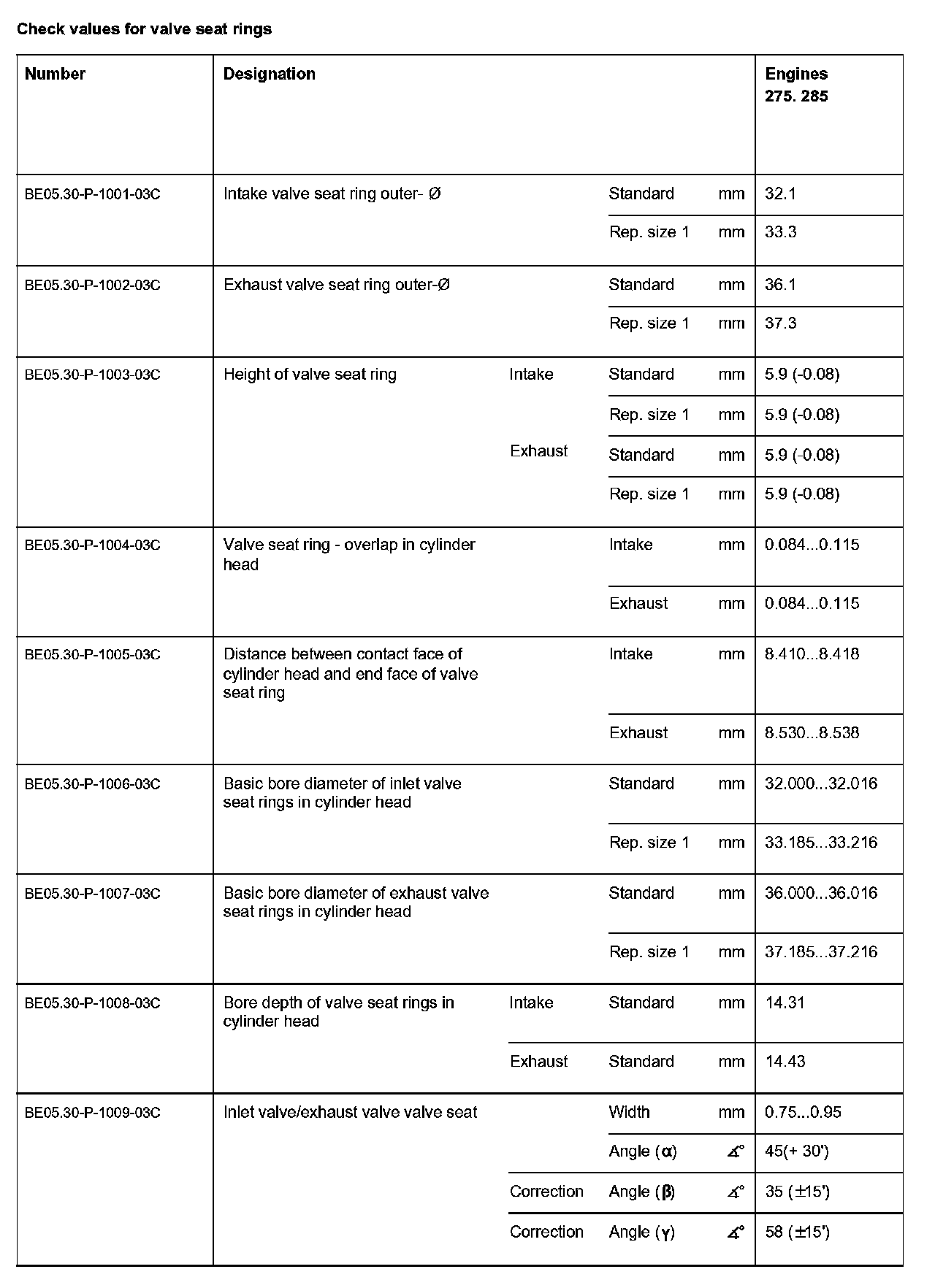

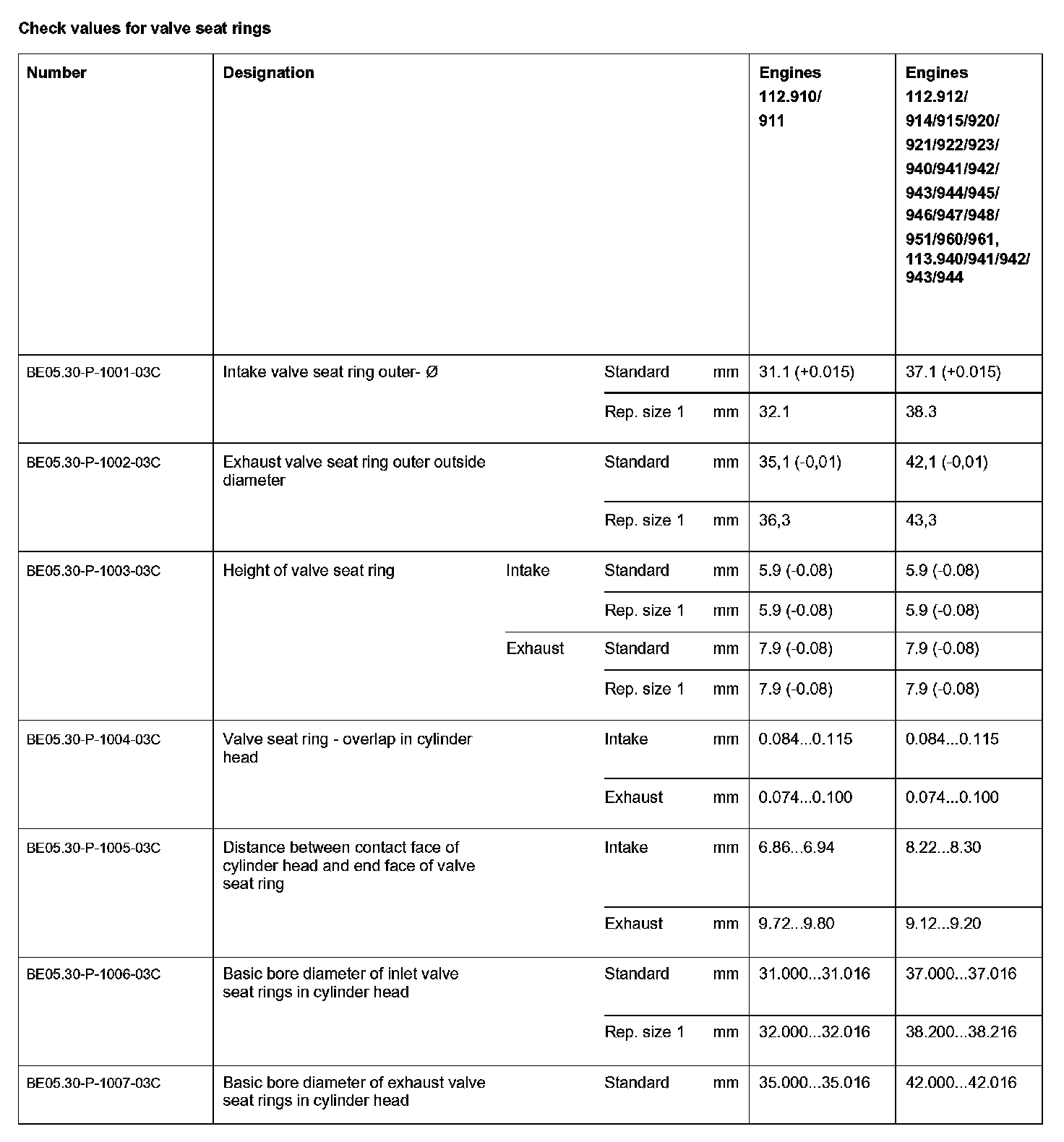

Check values for valve seat rings:




Check values for valves:




Check values for valves:




Check values for valves:




Check values for valves:




Check values for valves:
