AR05.30-P-4510-01AV Checking and Machining Dimensions For Valve Seats

AR05.30-P-4510-01AV Checking and Machining Dimensions For Valve Seats

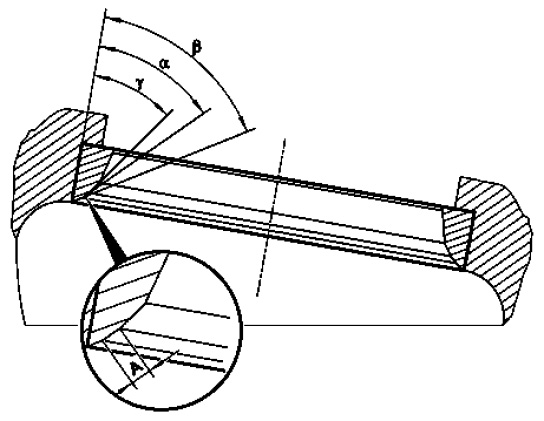

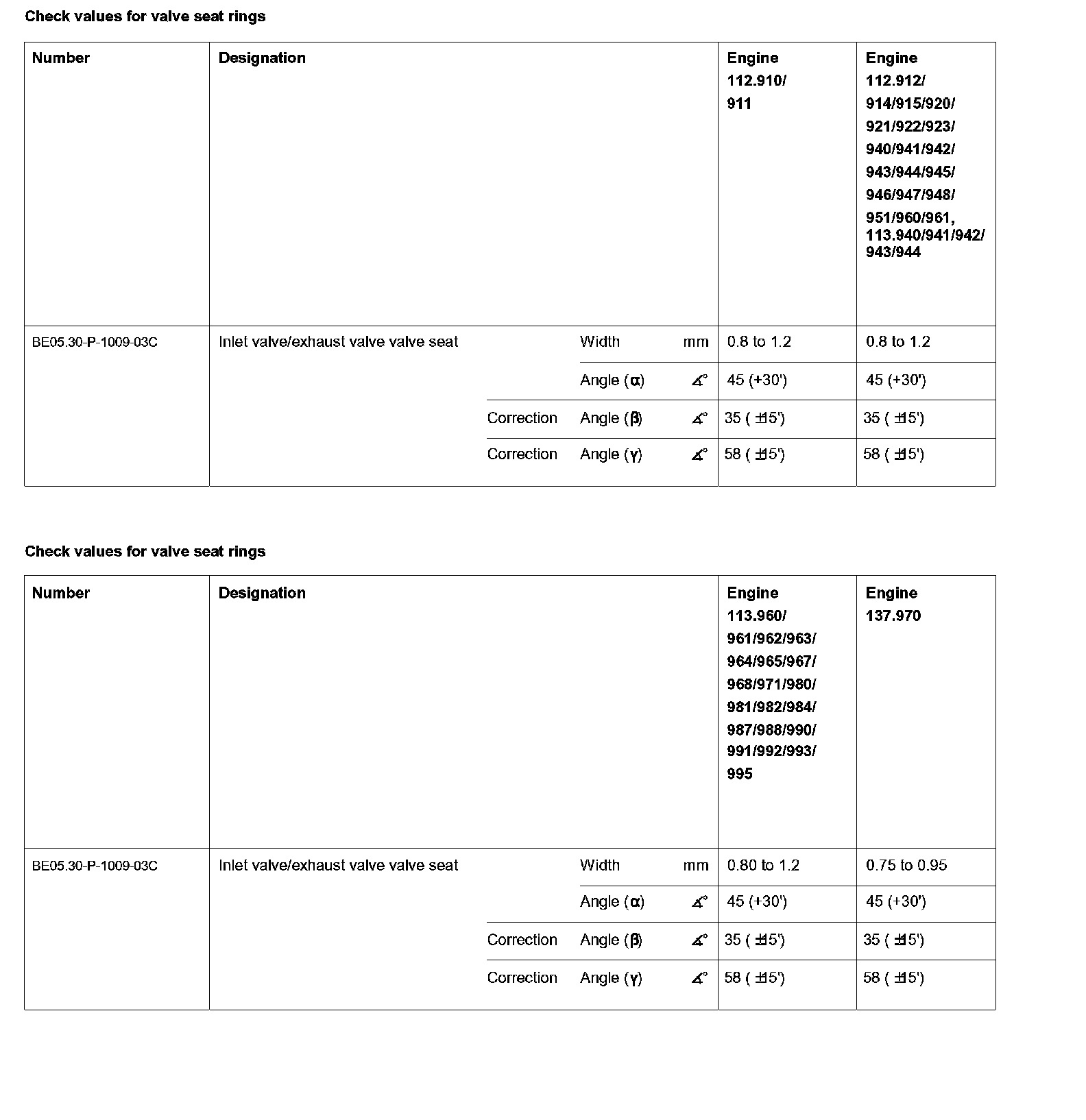

Shown at exhaust valve seat ring

a Valve seat angle
B Top correction angle
y Bottom correction angle
A Width of valve seat
