AR05.30-P-3731-06AV Inspect Valve Guides

AR05.30-P-3731-06AV Inspect Valve Guides








102 589 01 23 00
Feeler

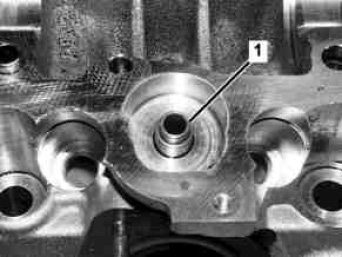

1 Clean bore of valve guide (1) (never use a hard object).
2 Inspect surface of bore for scores or signs of rubbing.

If damage to the surface is present, the valve guide must be replaced and the valve stem inspected for uneven areas. If the stem is damaged, the valve must be replaced together with the valve guide.

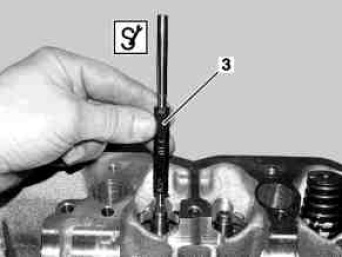

3 If it is possible to insert the side of the hole gauge (3) marked with "+220" over its full length (5 mm) into the valve guide, it is then necessary to replace the valve guide.

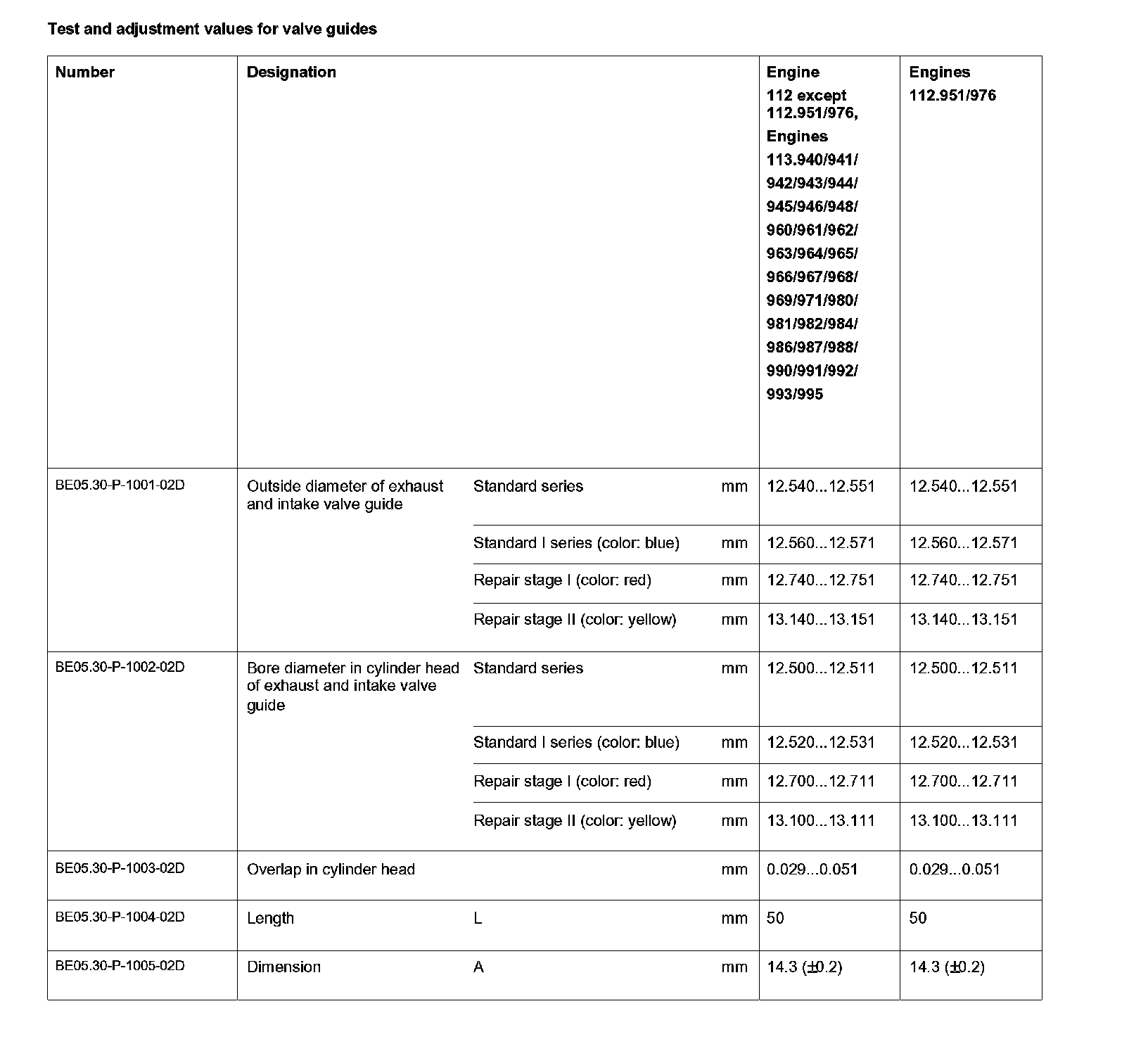

Inspect bore of valve guide in longitudinal and transverse direction.
