AR05.30-P-3731-03AV Insert Valve Guide, Inspect

AR05.30-P-3731-03AV Insert Valve Guide, Inspect








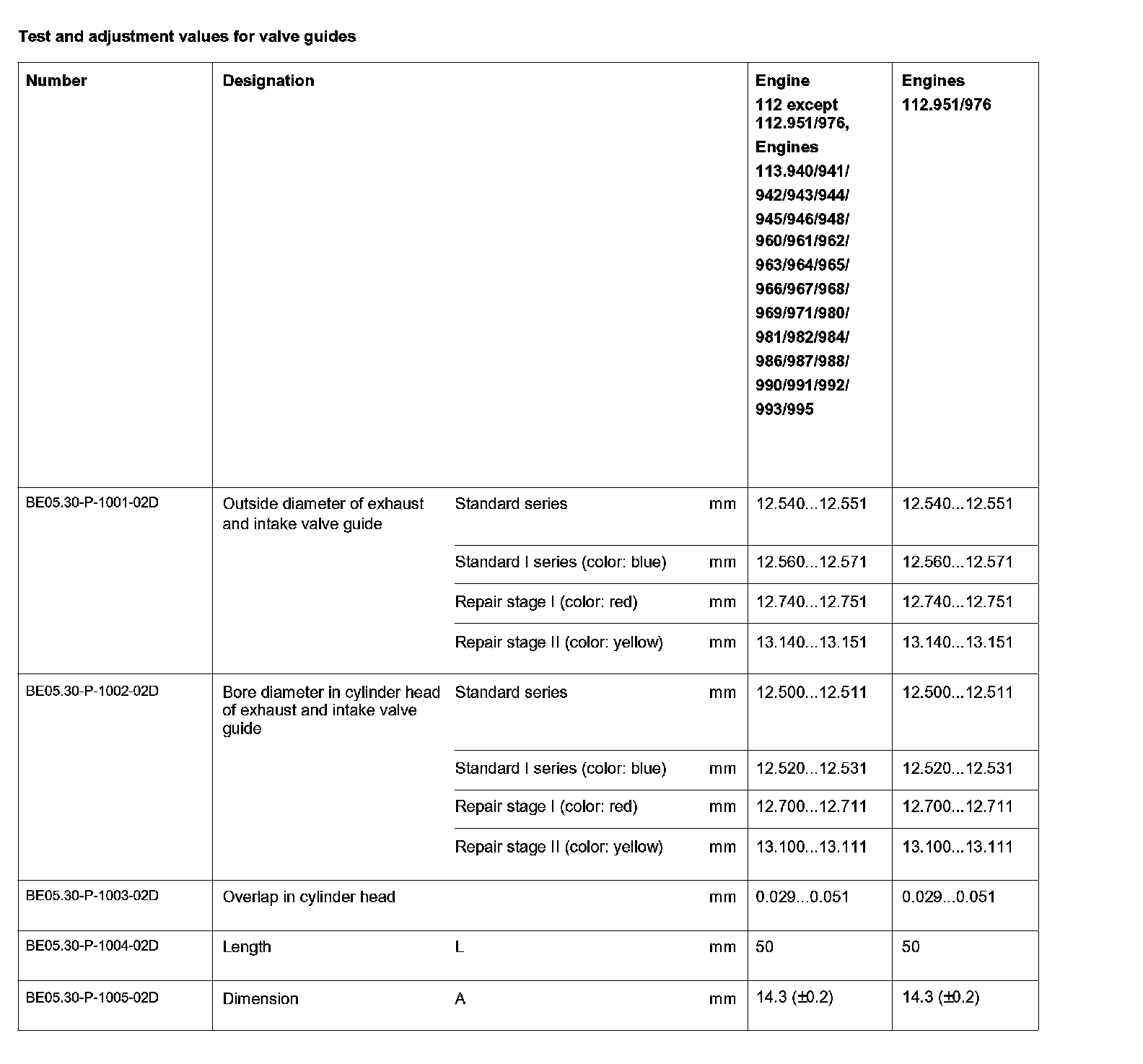

606 589 00 31 00
Supports (1 pair)





113 589 00 15 00
Drift





102 589 01 23 00
Feeler gauge

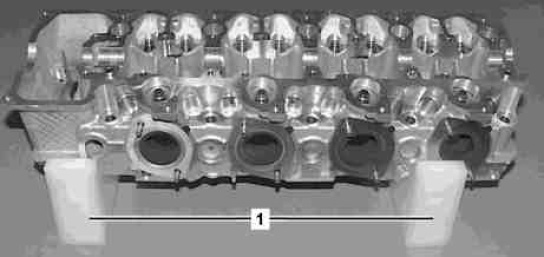

1 Place cylinder head onto the supports (1).





2 Coat the outside of valve guide (5) with oil.

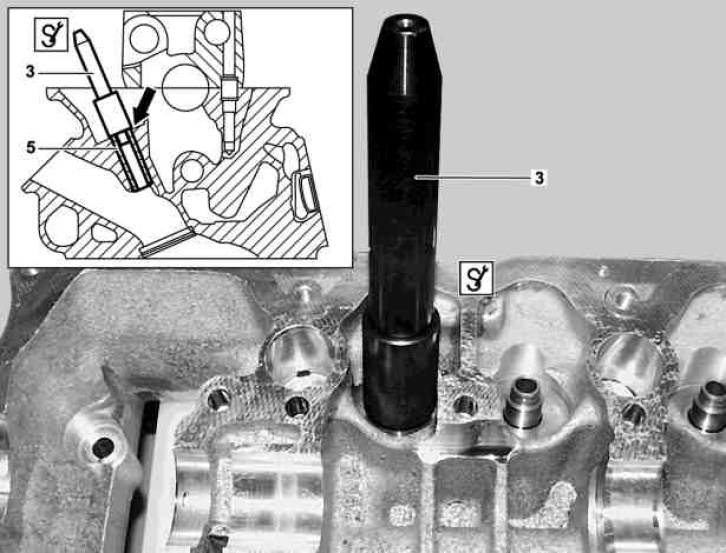

3 Position the valve guide (5) and knock into the cylinder head as far as the stop (arrow) of the insertion drift (3).

Check the secure seating of the valve guide (5). The installation depth of the valve guide (5) is set by the drift punch (3).

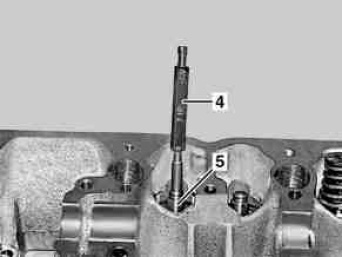

4 Check the valve guide (5) with the feeler gauge (4).

The side of the feeler gauge (4) marked with '0' must be inserted completely into the valve guide (5). The valve guide (5) must be replaced if the feeler gauge (4) cannot be inserted completely. The valve guide (5) is made of powdered metal, so reaming is not possible.
