AR05.30-P-3731-03VT Insert Valve Guide, Inspect

AR05.30-P-3731-03VT Insert valve guide, inspect

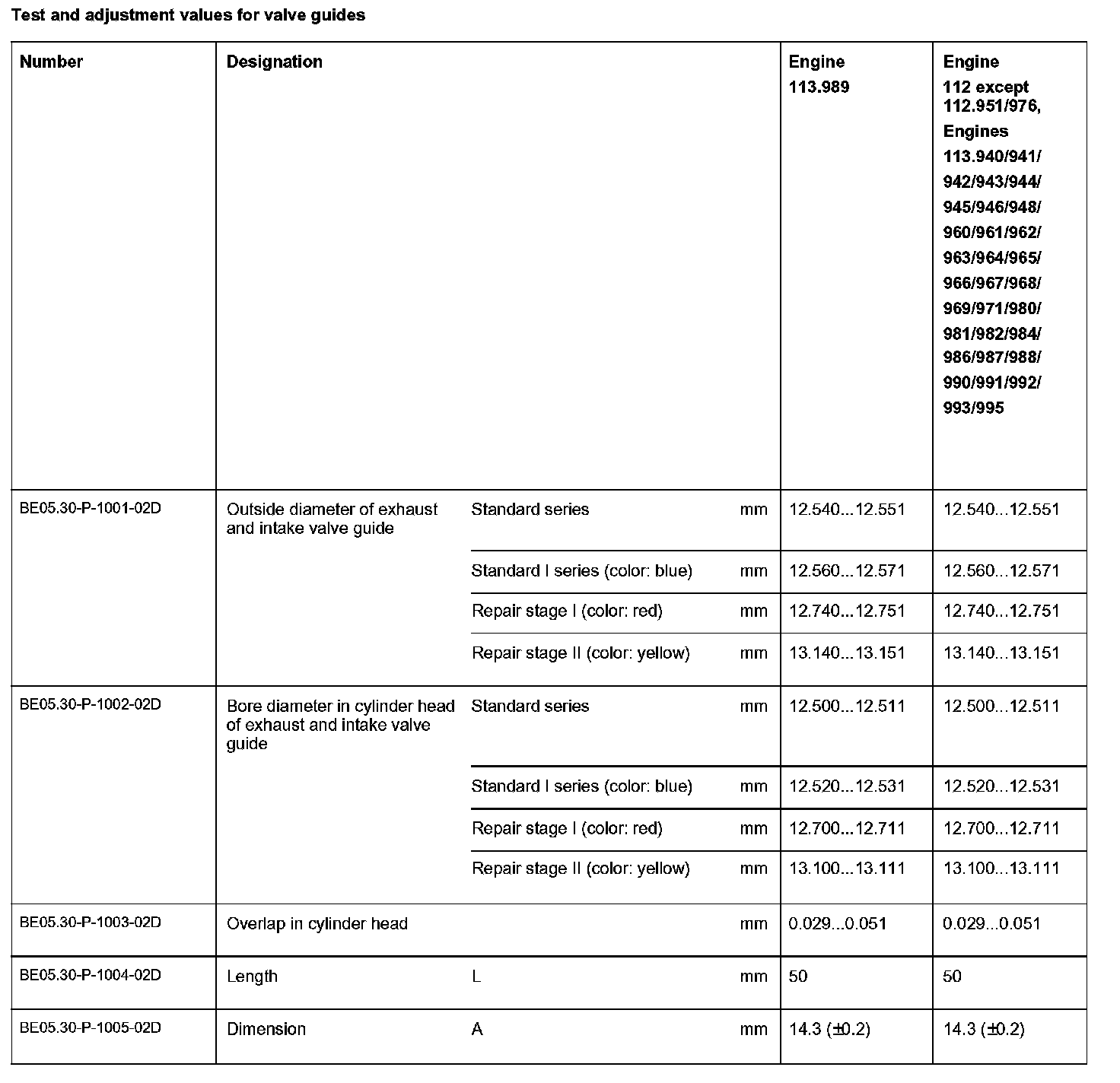

Test and adjustment values for valve guides:

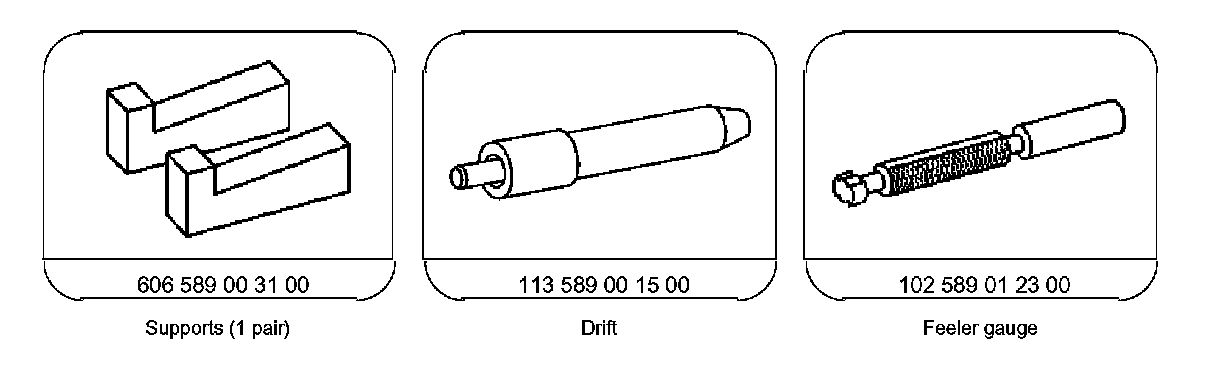

Special Tools:

Component Identification:

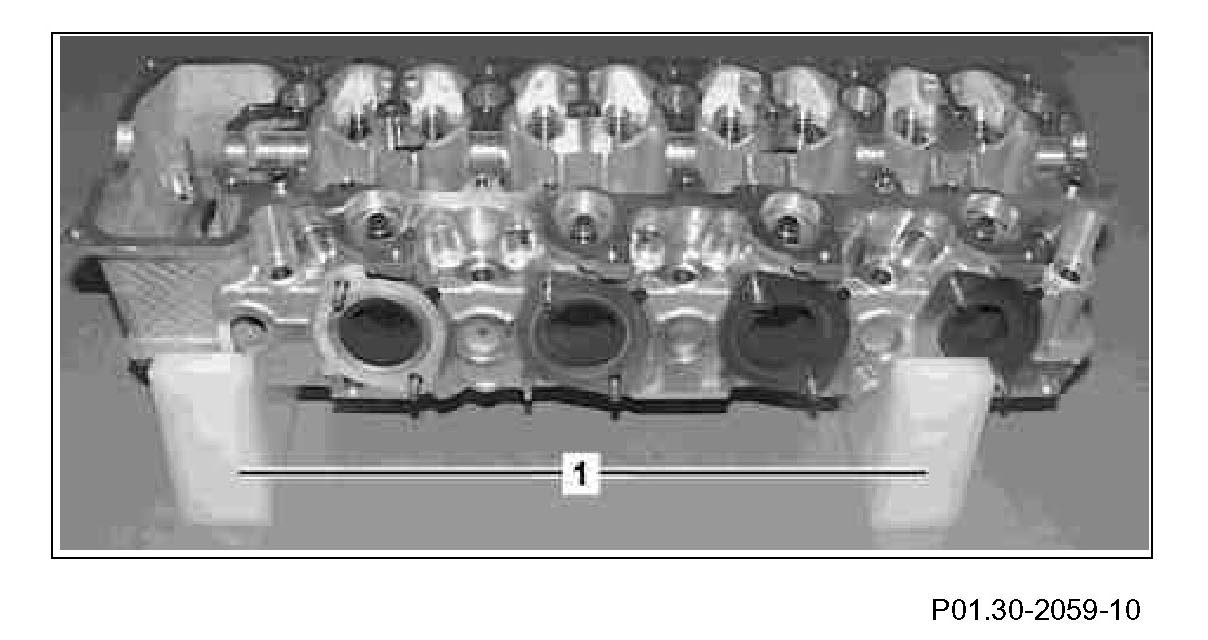

1 Place cylinder head onto the supports (1 pair) (1).

Component Identification:

2 Coat the outside of valve guide (5) with oil.

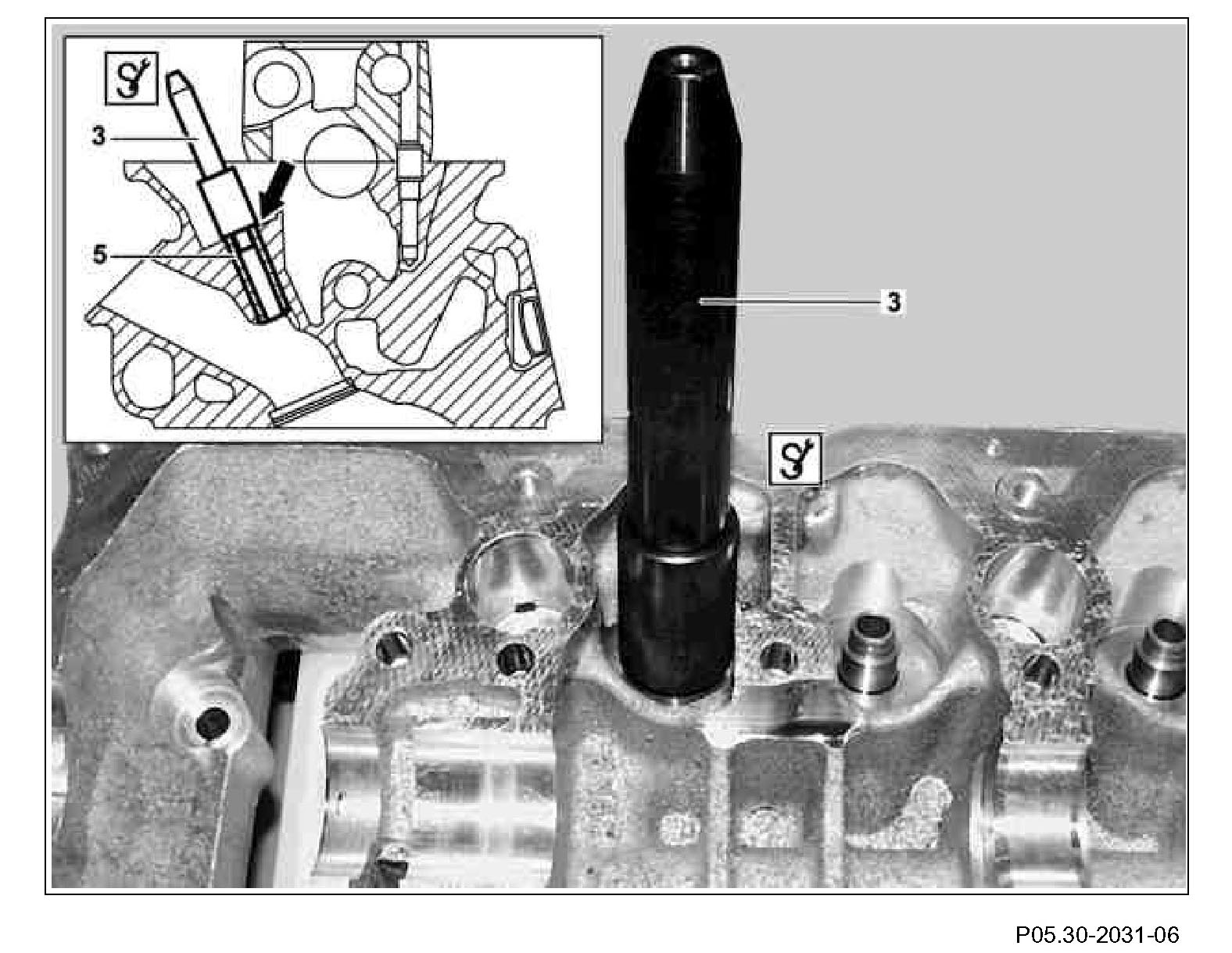

3 Position the valve guide (5) and knock into the cylinder head as far as the stop (arrow) of the drift (3).

Check the secure seating of the valve guide (5). The installation depth of the valve guide (5) is fixed by the drift (3).

Component Identification:

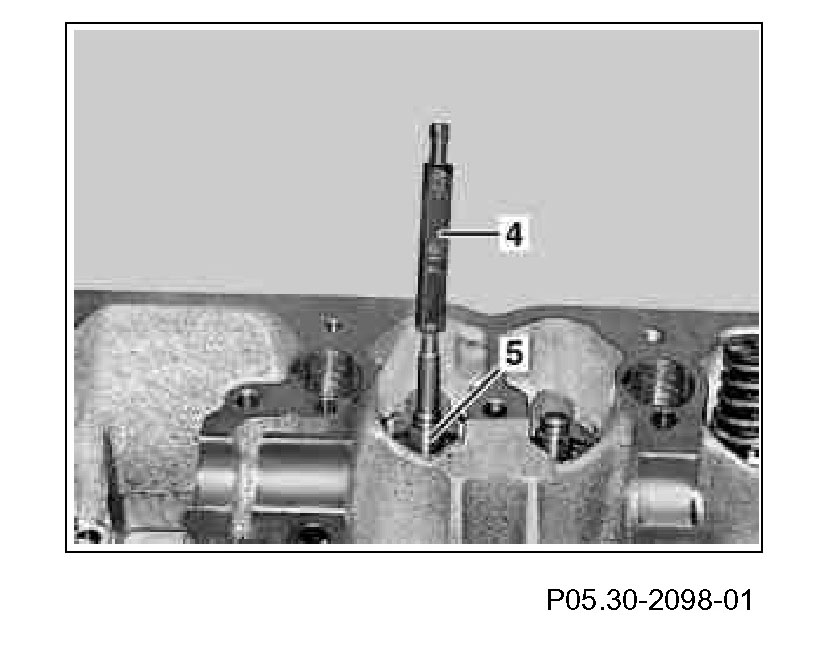

4 Check the valve guide (5) with the feeler gauge (4).

The side of the feeler gauge (4) marked with '0' must be inserted completely into the valve guide (5). The valve guide (5) must be replaced if the feeler gauge (4) cannot be inserted completely. The valve guide (5) is made of powdered metal. Reaming is not possible.
