AR05.30-P-3731-01AV Knocking Out Valve Guide

AR05.30-P-3731-01AV Knocking out valve guide

Special Tools:

Component Identification:

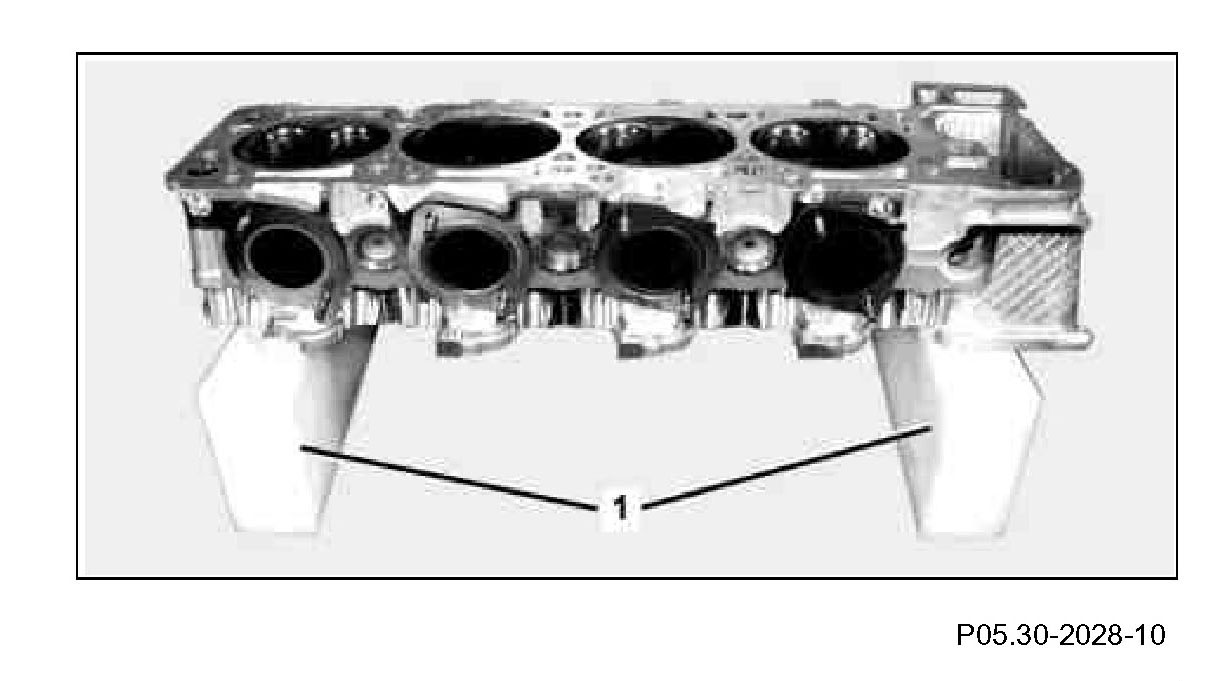

1 Place the cylinder head on both the supports (1).

Align the supports (1) that the valve guide to be knocked out cannot hit the supports (1).

Component Identification:

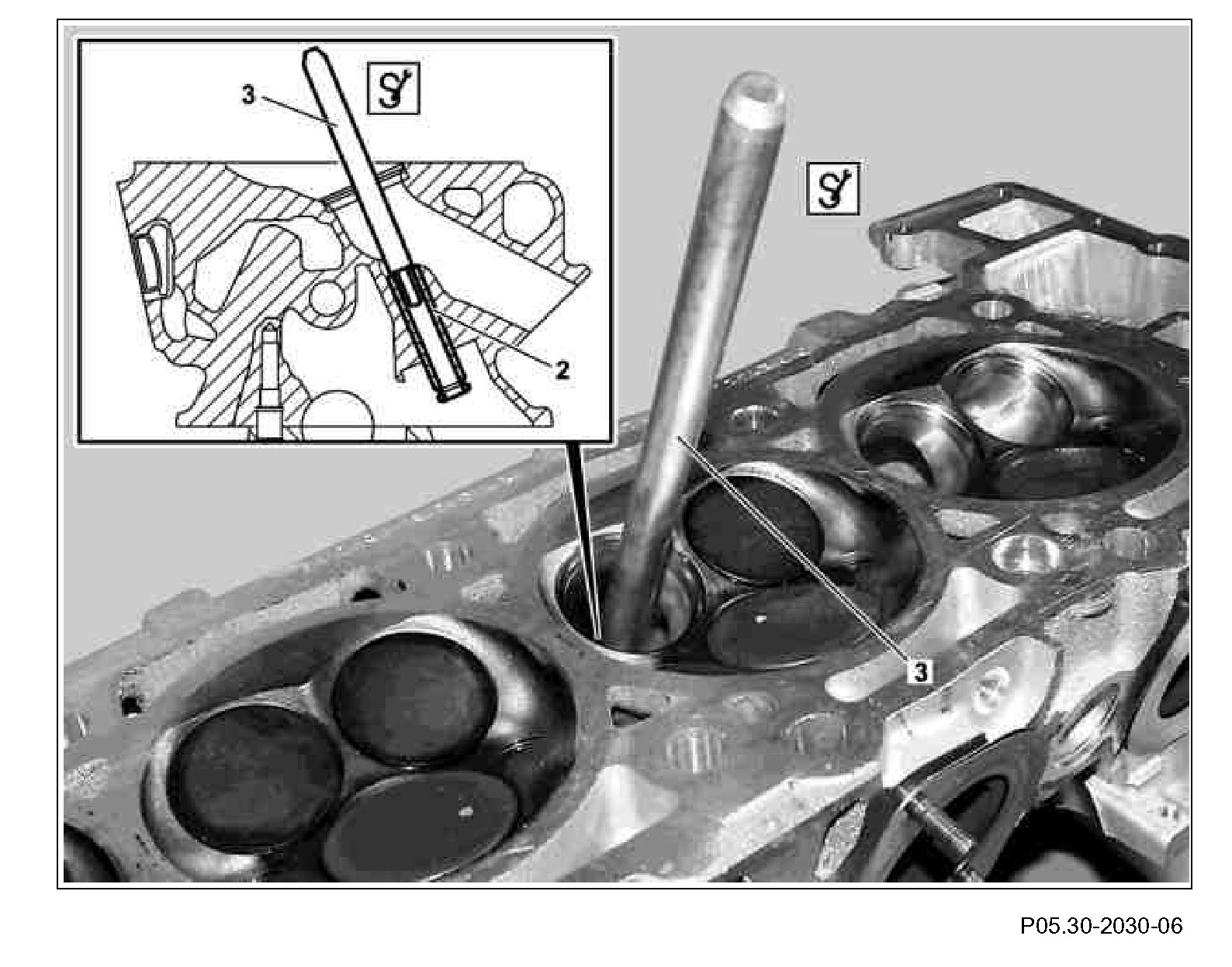

2 Knock out the valve guide (2) from the side of the combustion chamber using a drift (3).
