Harmonic Balancer - Crankshaft Pulley: Testing and Inspection

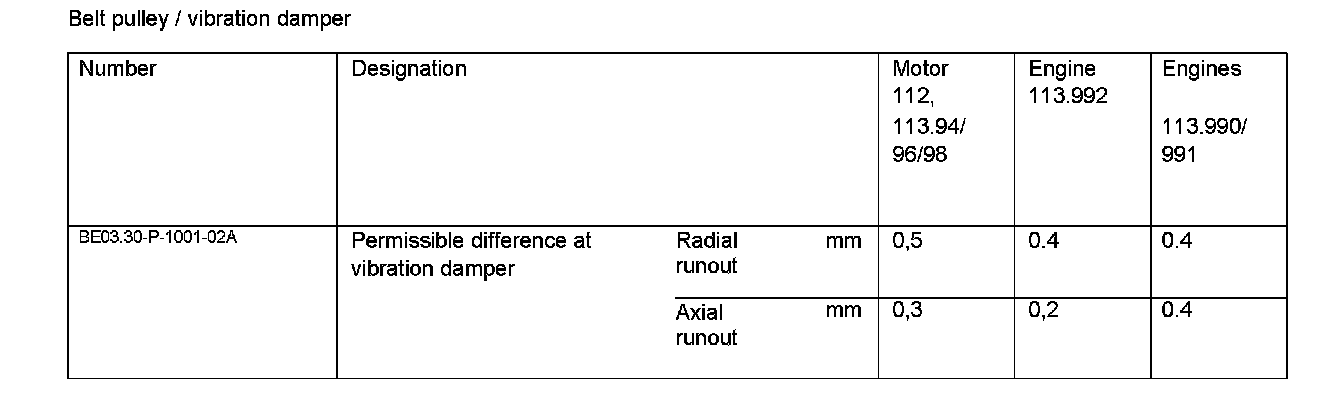

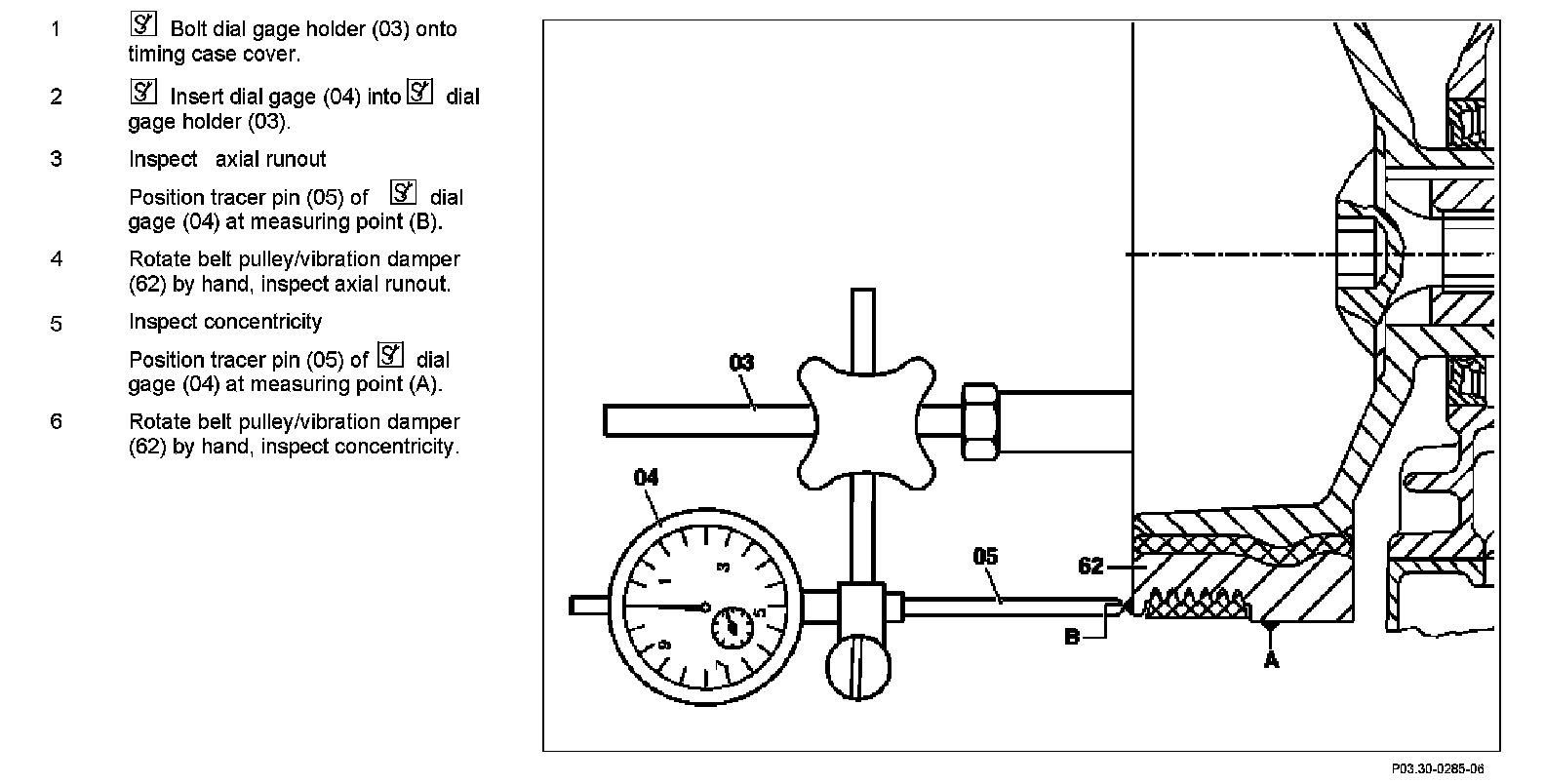

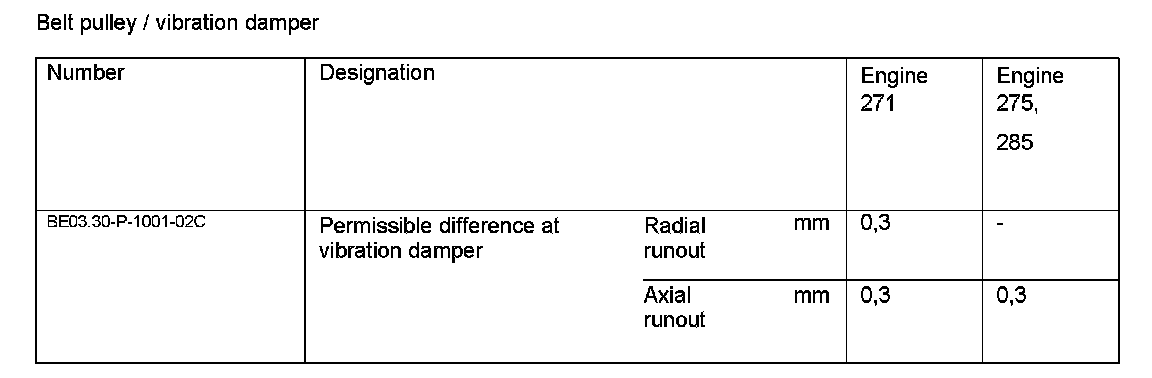

Inspecting belt pulley / vibration damper for axial and radial runout
