Removal and Replacement

AR03.30-P-1600CA Remove/Install Belt Pulley/Vibration Damper
ENGINES 112.947 in MODEL 170
ENGINES 112 in MODELS 202, 208, 209, 210, 220
ENGINES 113 in MODEL 209
ENGINES 113 (except 113.991) in MODEL 215, 220
ENGINES 112.913 in MODEL 211.061 /261
ENGINES 112.949 in MODEL 211.065 /265
ENGINES 113.967 in MODEL 211.070 /270
ENGINES 113.981 in MODEL 163.174
ENGINES 113.963 in MODEL 230.475
ENGINES 112.973 in MODEL 230.467
ENGINES 112.917 in MODELS 211.080 /280
ENGINES 112.954 in MODEL 211.082 /282
ENGINES 113.969 in MODEL 211.083 /283
ENGINES 113.988 in MODEL 203.076 /276
ENGINES 113.989 in MODEL 171.473

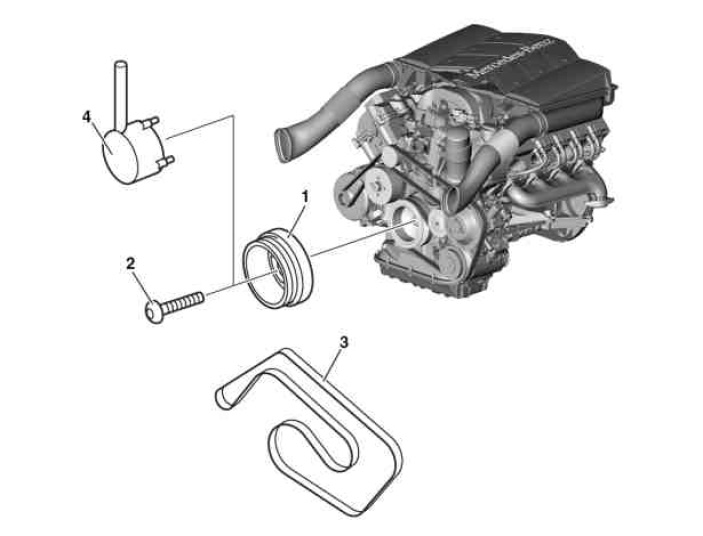

1 Belt pulley/vibration damper
2 Center bolt
3 Poly-V belt
4 Counterholder











112 589 00 40 00
Counterholder
