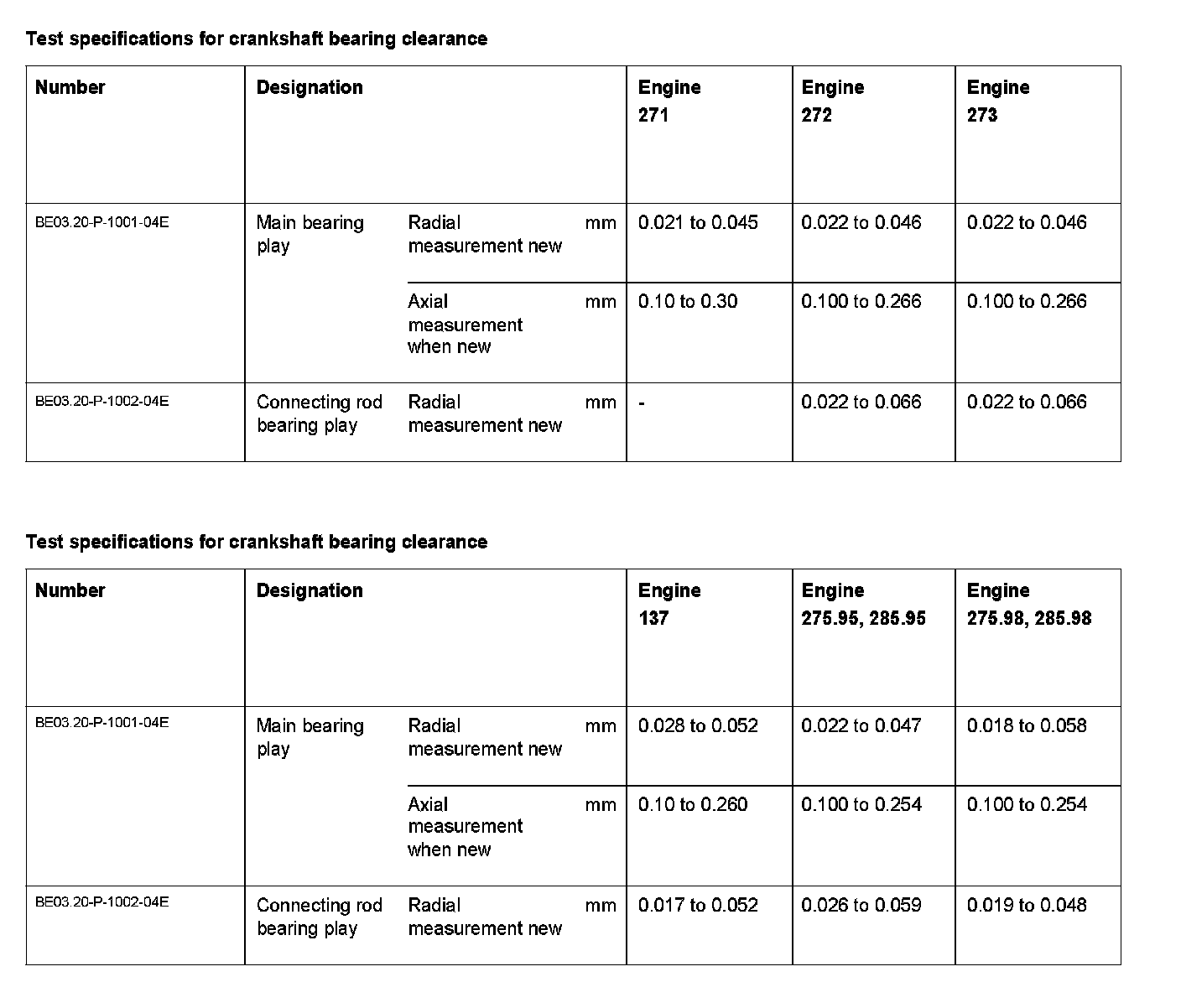

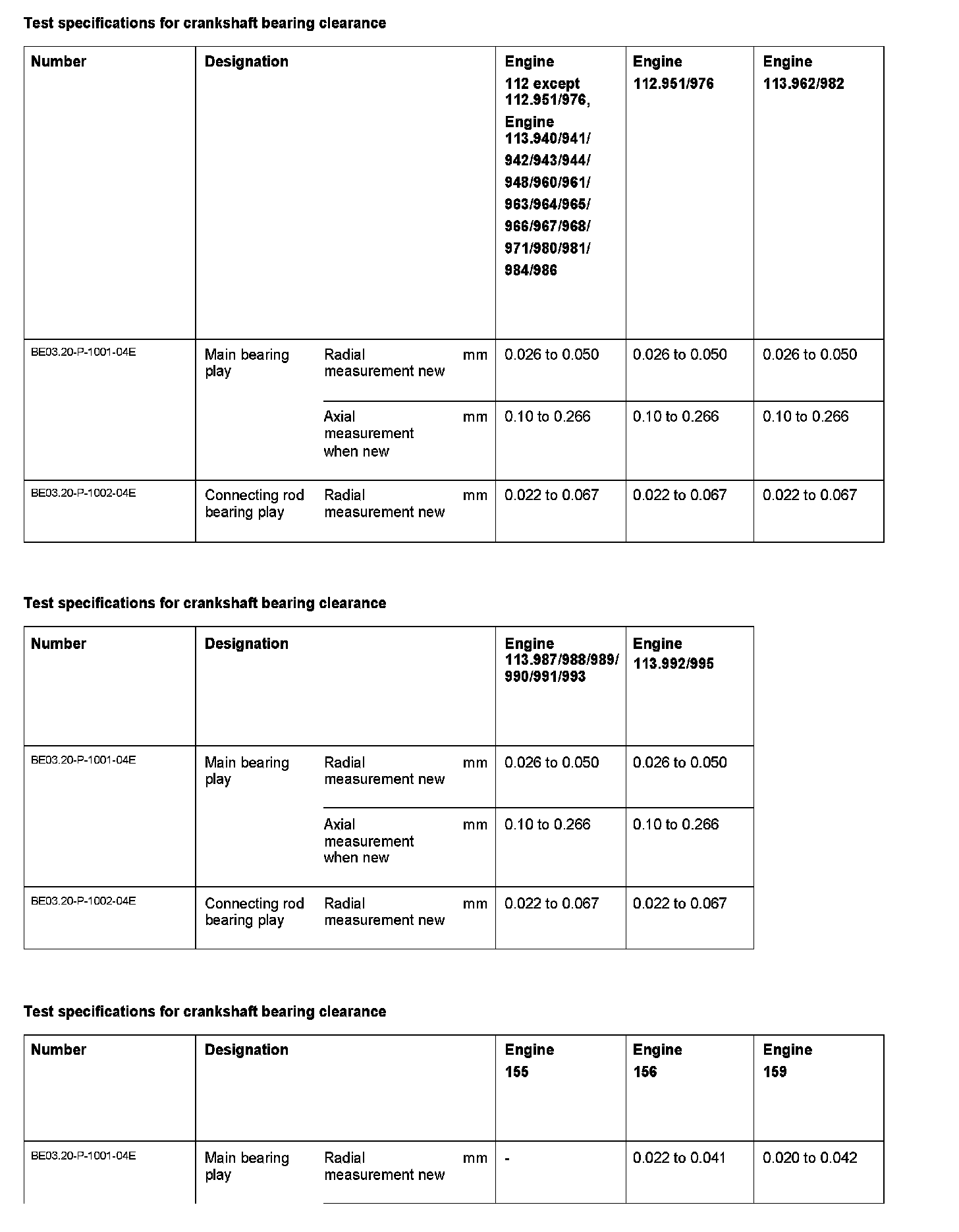

BE03.20-P-1000-04E Test Specifications For Crankshaft Bearing Clearance
BE03.20-P-1000-04E Test Specifications For Crankshaft Bearing Clearance
BE03.20-P-1000-04E Test Specifications For
Crankshaft
Bearing Clearance
ENGINE 112, 113, 137, 155, 156, 159, 271, 272, 273, 275, 285
