Camshaft: Application and ID



AH05.20-N-0100-01A Camshaft code number and assignment

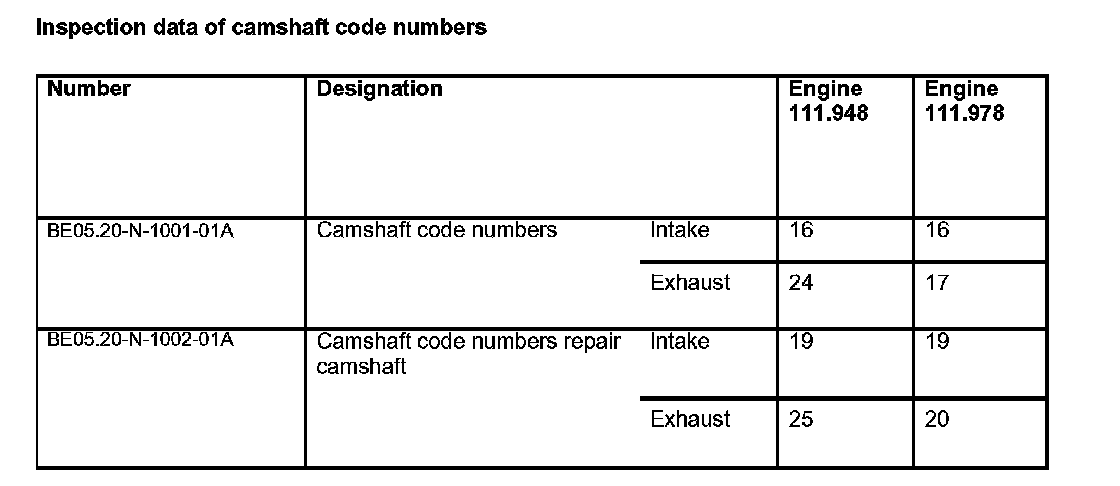

Inspection data of camshaft code numbers

Inspection data of camshaft code numbers:

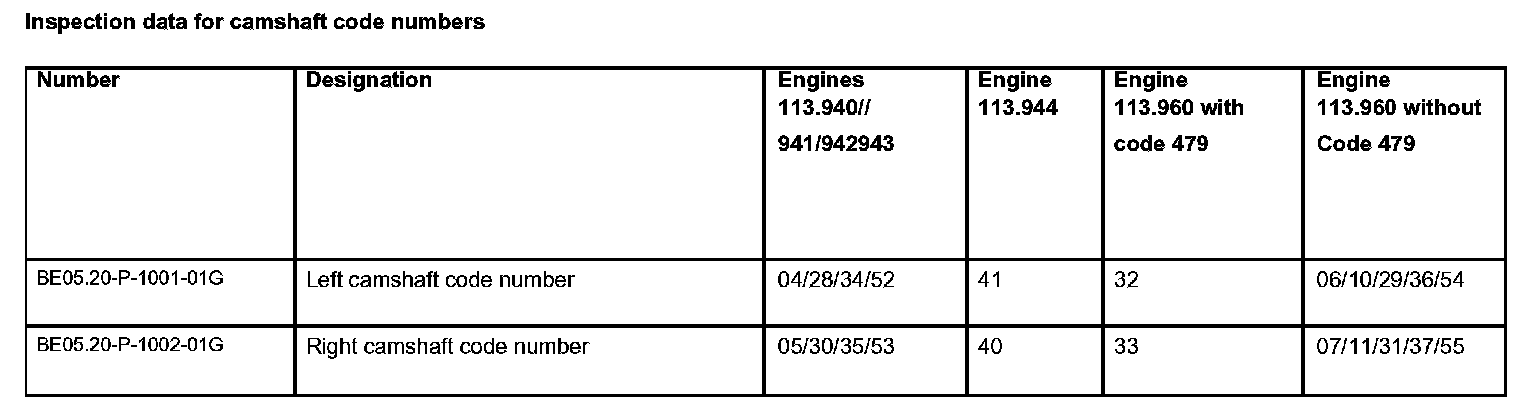

Inspection data for camshaft code numbers

Inspection data for camshaft code numbers:

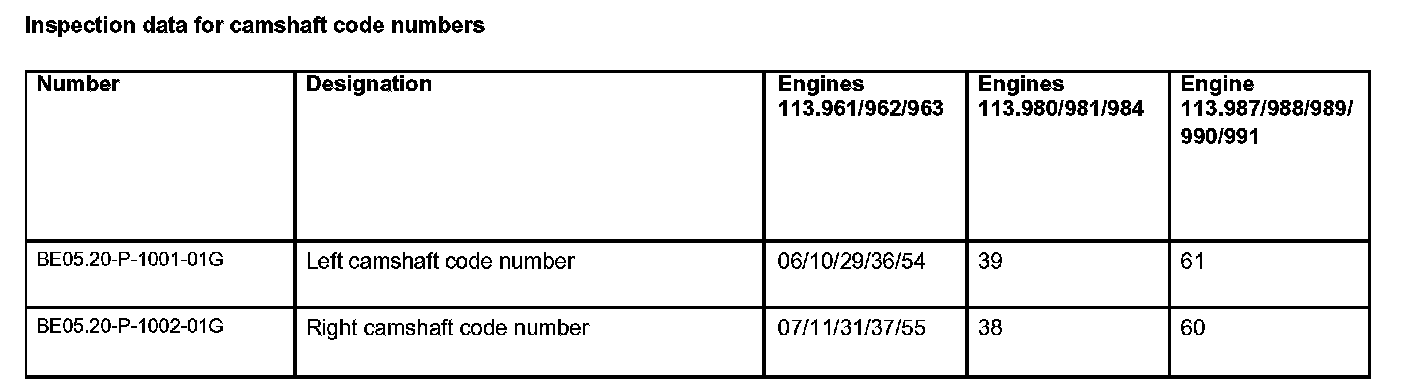

Inspection data for camshaft code numbers

Inspection data for camshaft code numbers:





Component Identification:





Engine 112,113

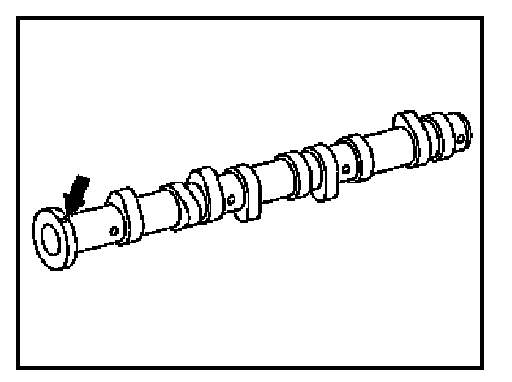

The camshaft code number is located at the flange for the camshaft sprockets (arrow).

Shown on camshaft for engine 112.
