AR20.00-P-1142PV Drain/Fill In Coolant



AR20.00-P-1142PV Drain/fill in coolant

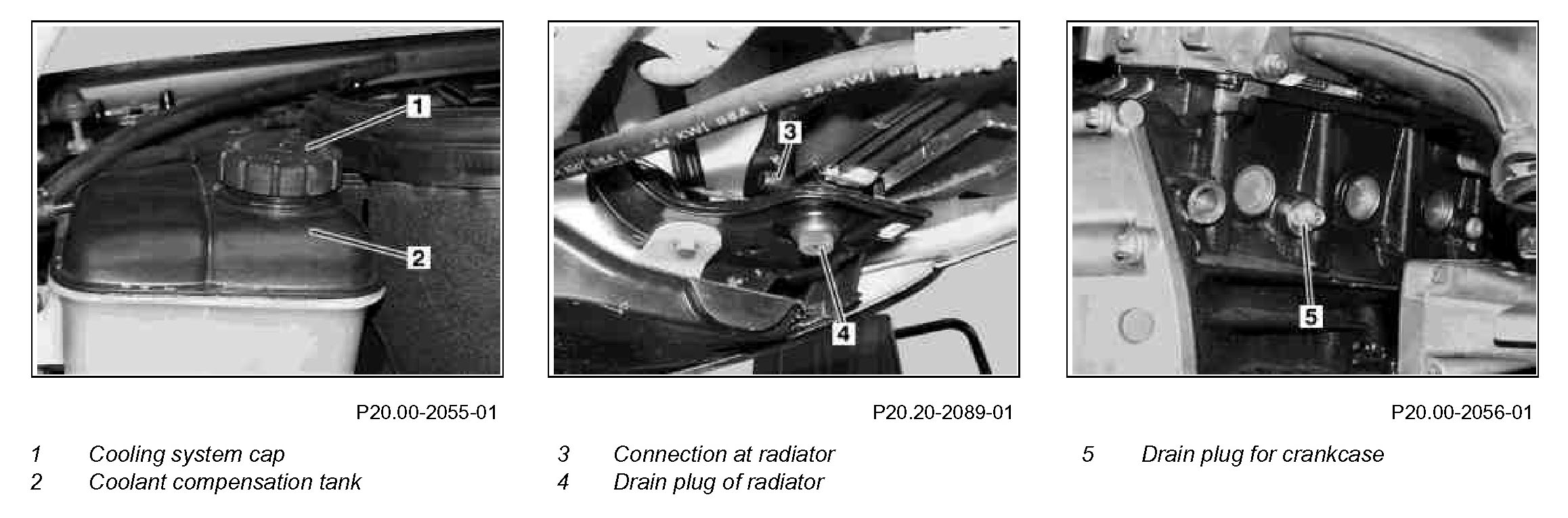

Component Identification:

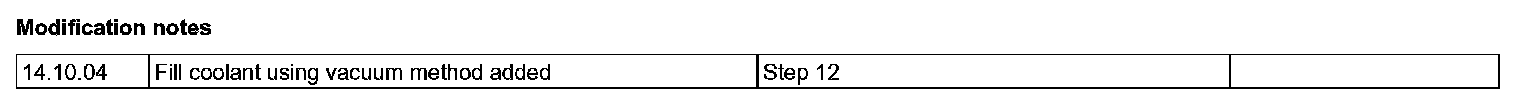

Modification notes:

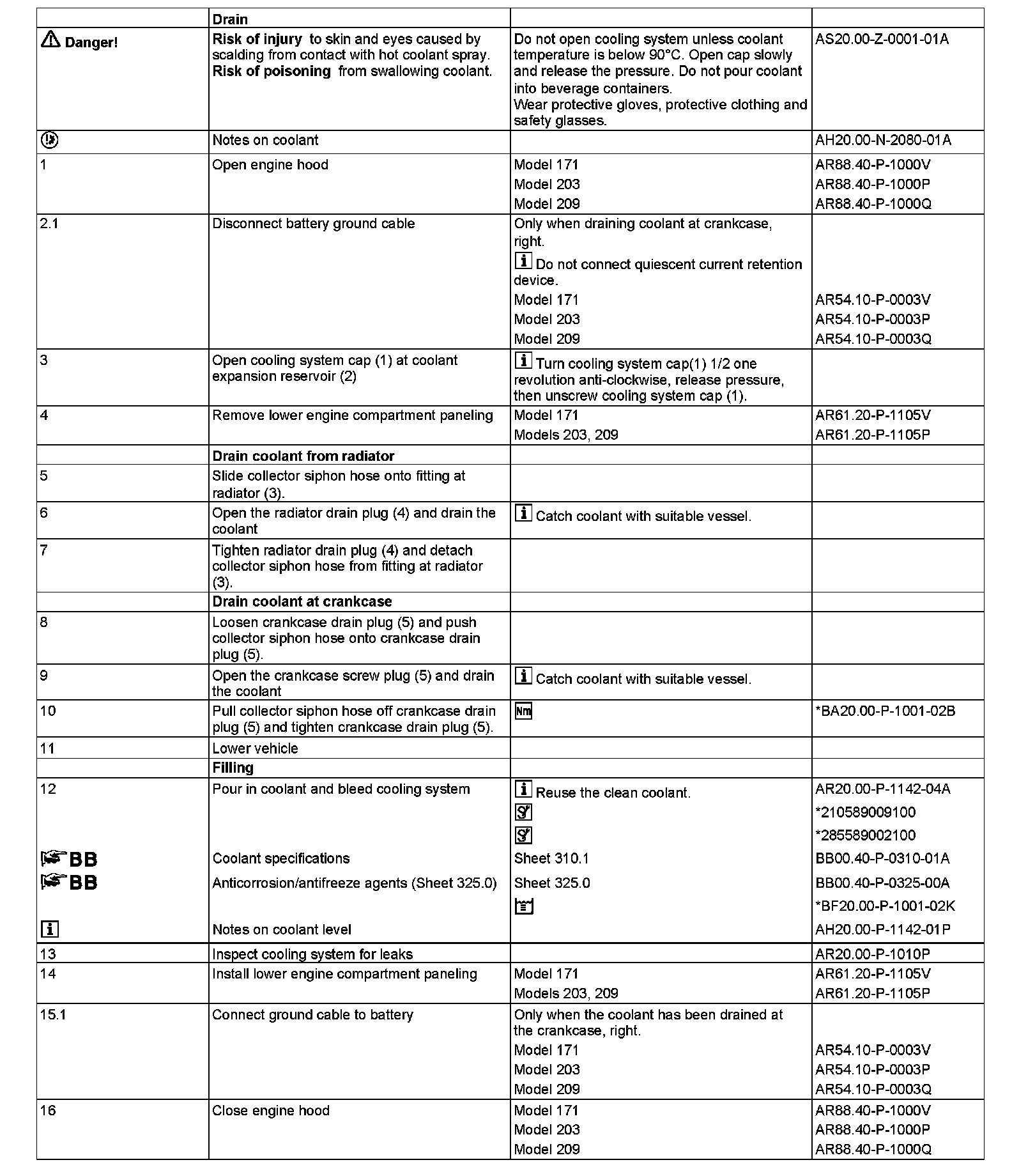

Steps 1-16:

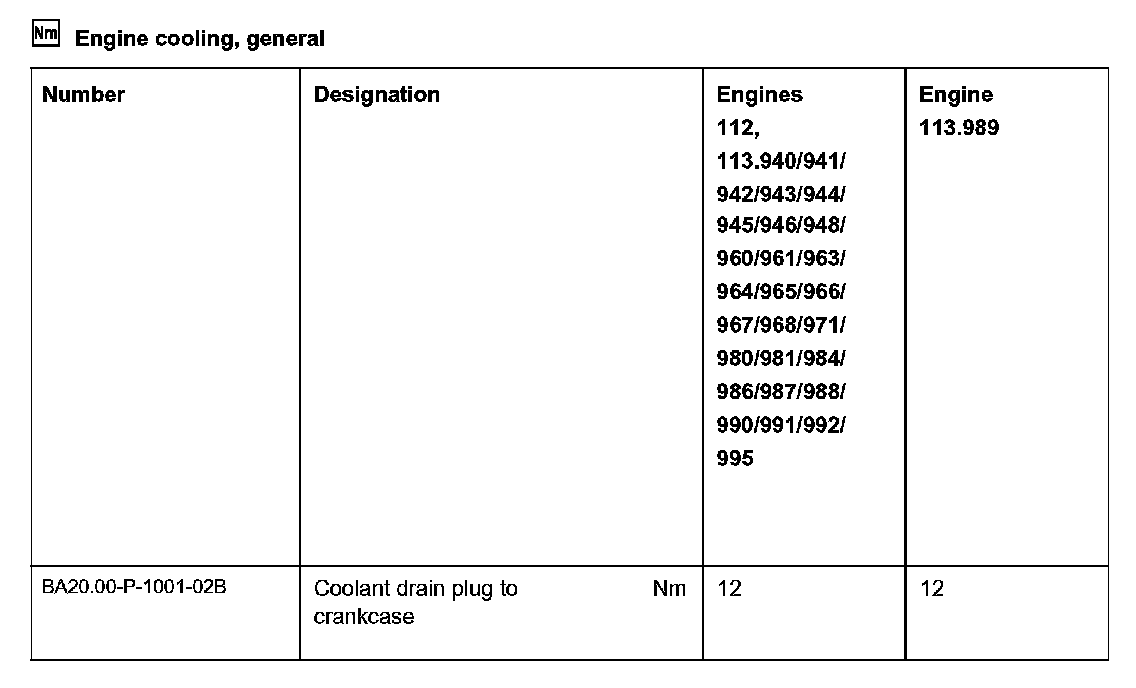

Engine cooling, general:

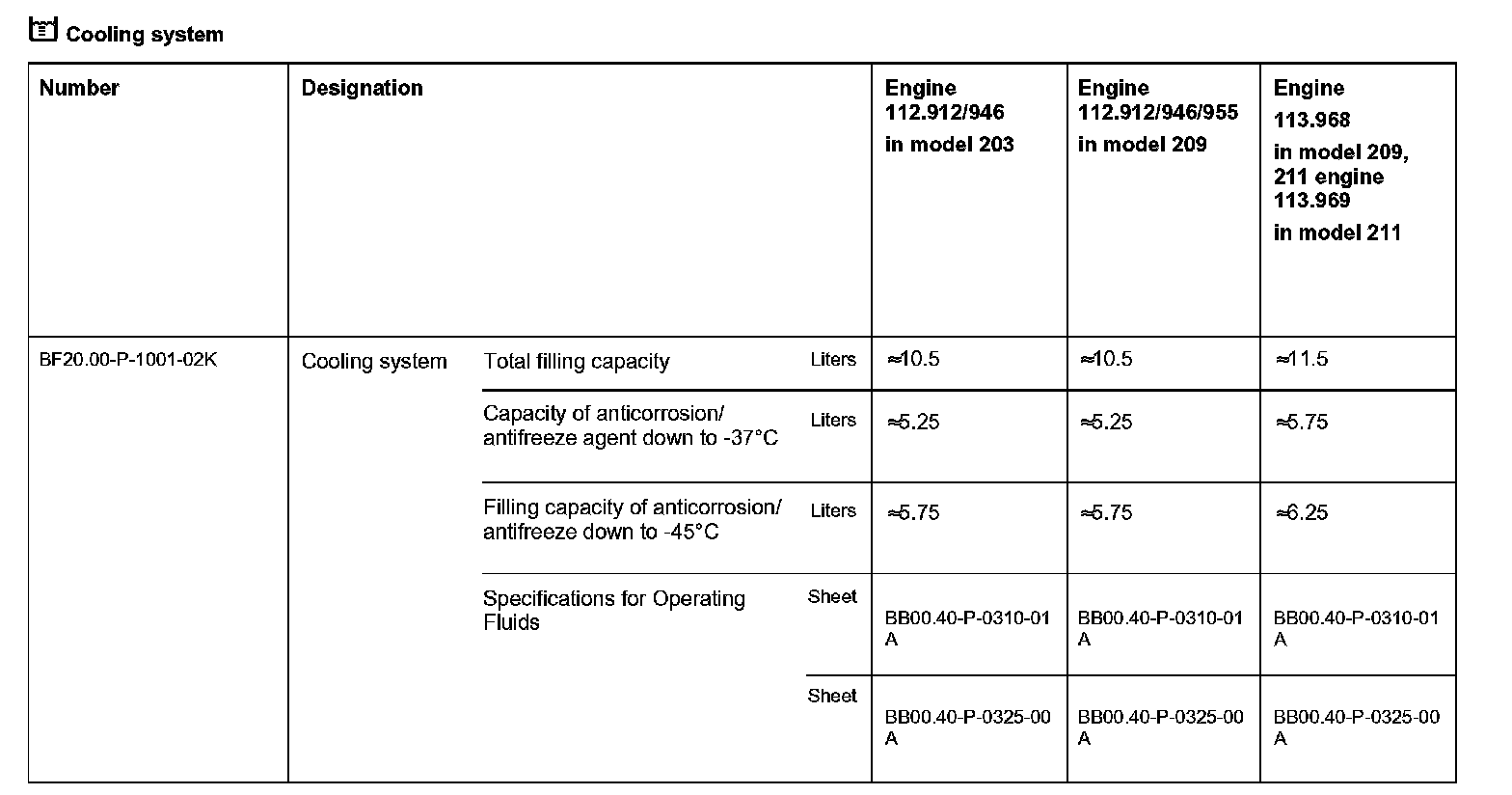

Cooling system:

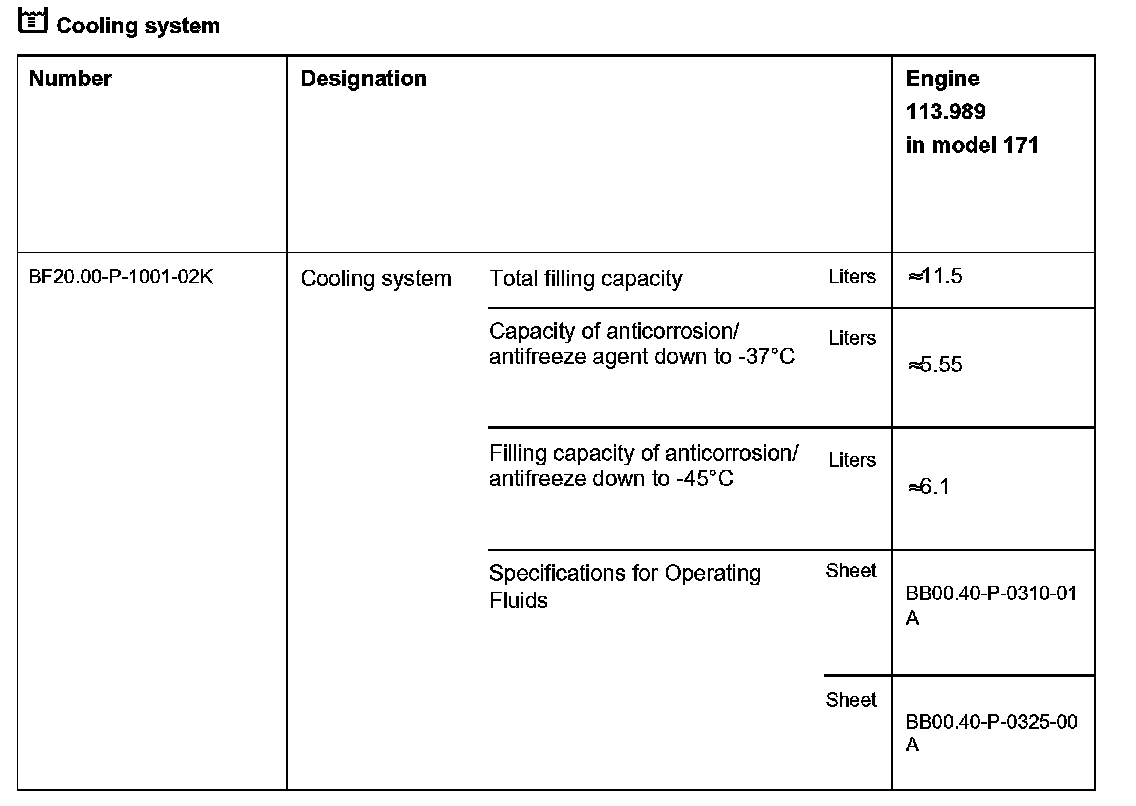

Cooling system:

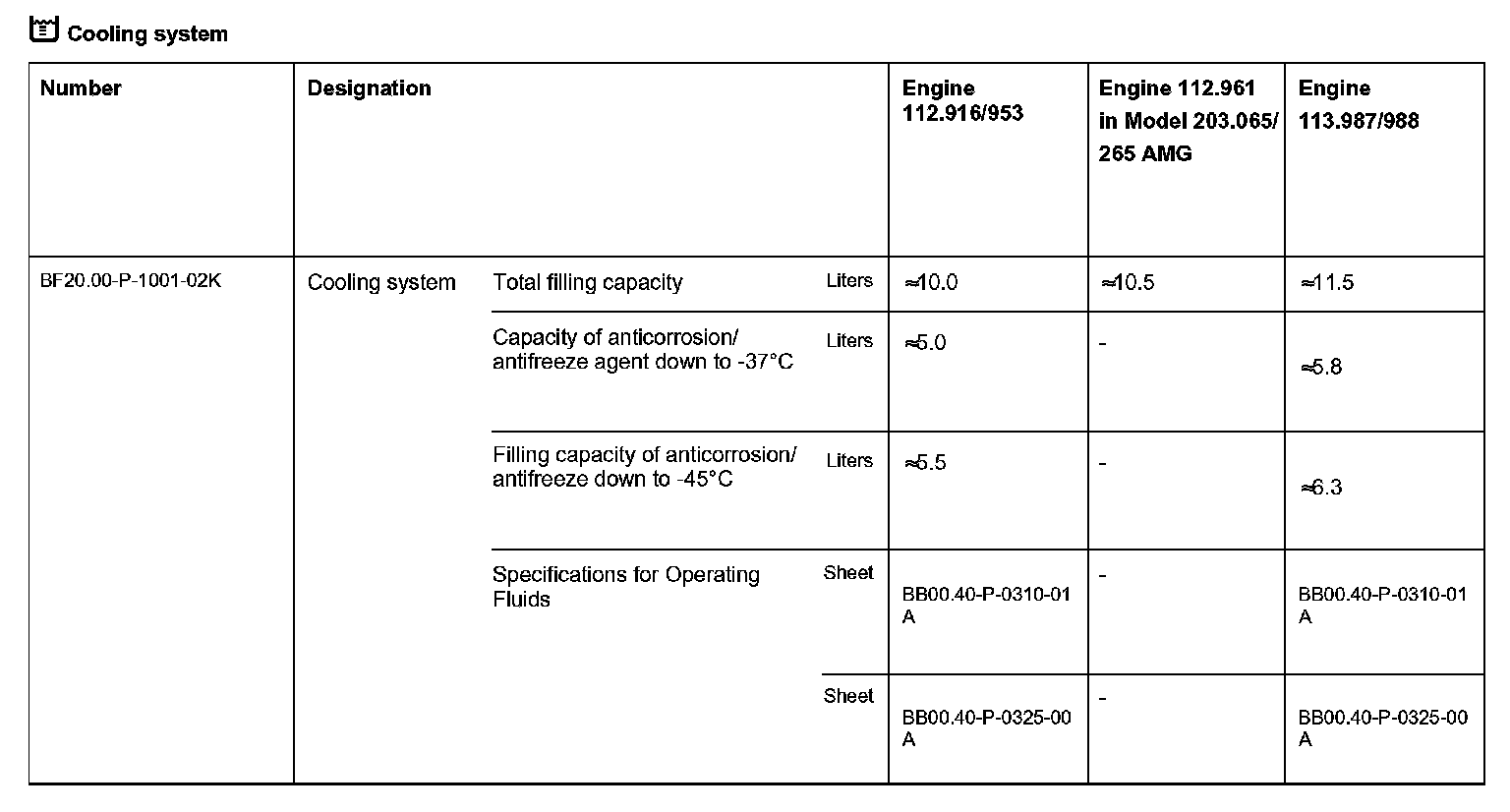

Cooling system:

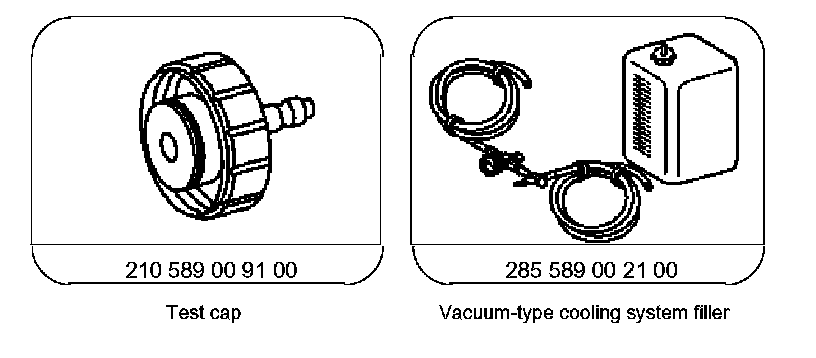

Special Tools:
