AH20.00-P-1142-01P Notes on Coolant Level

AH20.00-P-1142-01P Notes on coolant level

Component Identification:

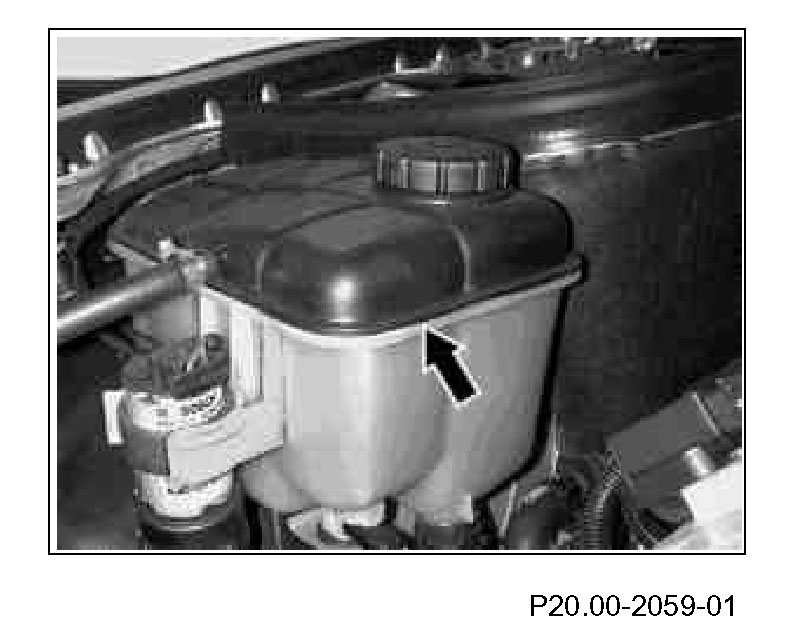

The coolant level must reach on a cold engine up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Shown on model 203 with engine 112
