Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Auxiliary Water Pump >> Service and Repair >> AR83.25-P-1170QQ Remove/Install/Replace Coolant Circulation Pump

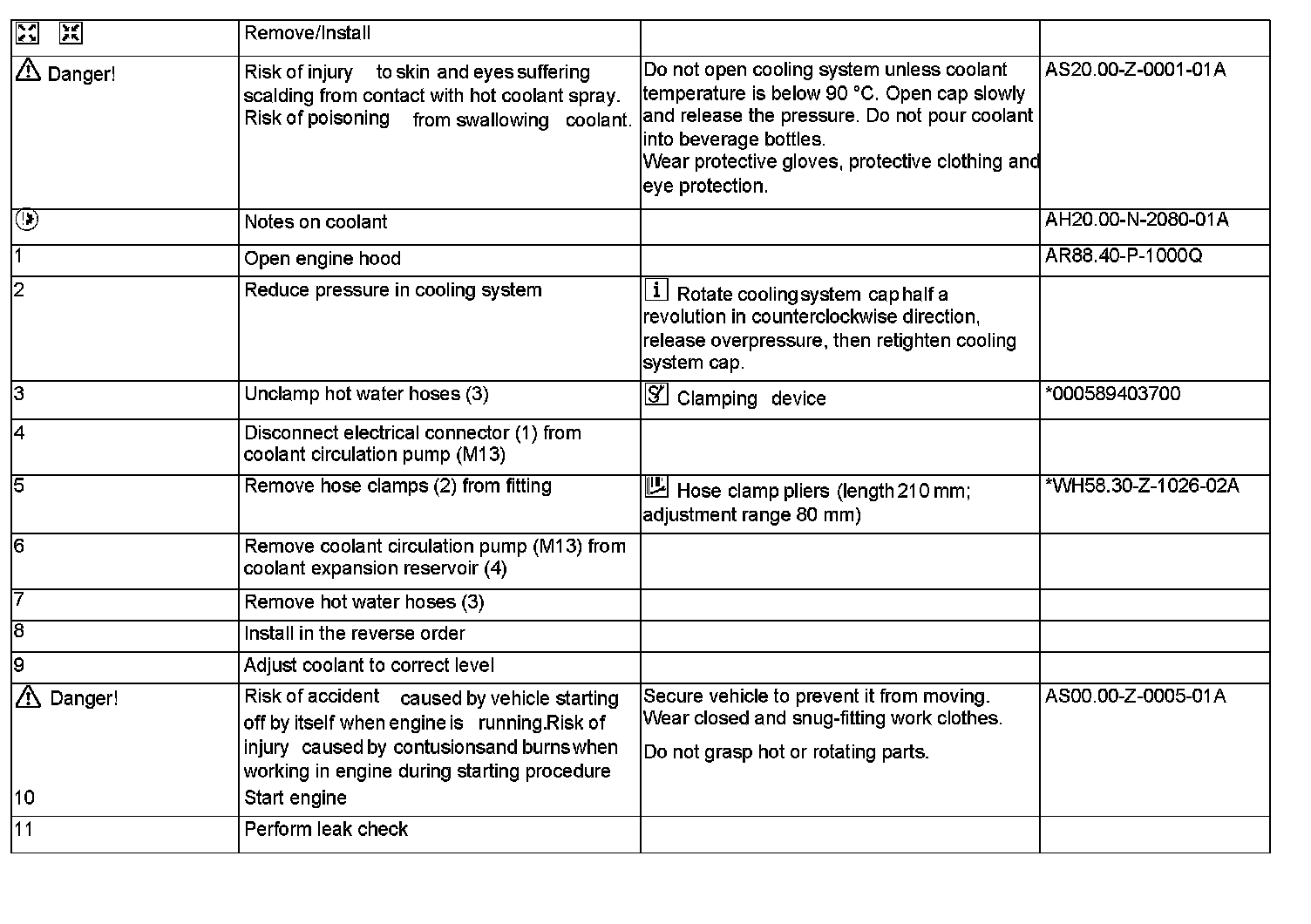

AR83.25-P-1170QQ Remove/Install/Replace Coolant Circulation Pump



AR83.25-P-1170QQ Remove/Install/Replace Coolant Circulation Pump
- with CODE (670a) Residual engine heat utilization (REST)
- with CODE (874) Coolant circulation pump
- with CODE (580a) Automatic air conditioning
- with CODE (581b) Convenience automatic air conditioning
- except CODE (228) Stationary heater

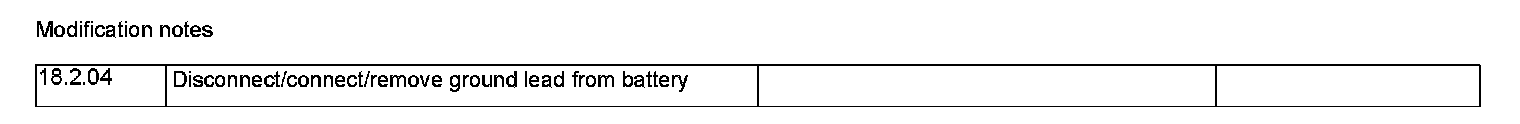

Modification Notes:
