Function Diagrams

Function Diagram For TELE AID Emergency Call System PE82.95-U-2050BA

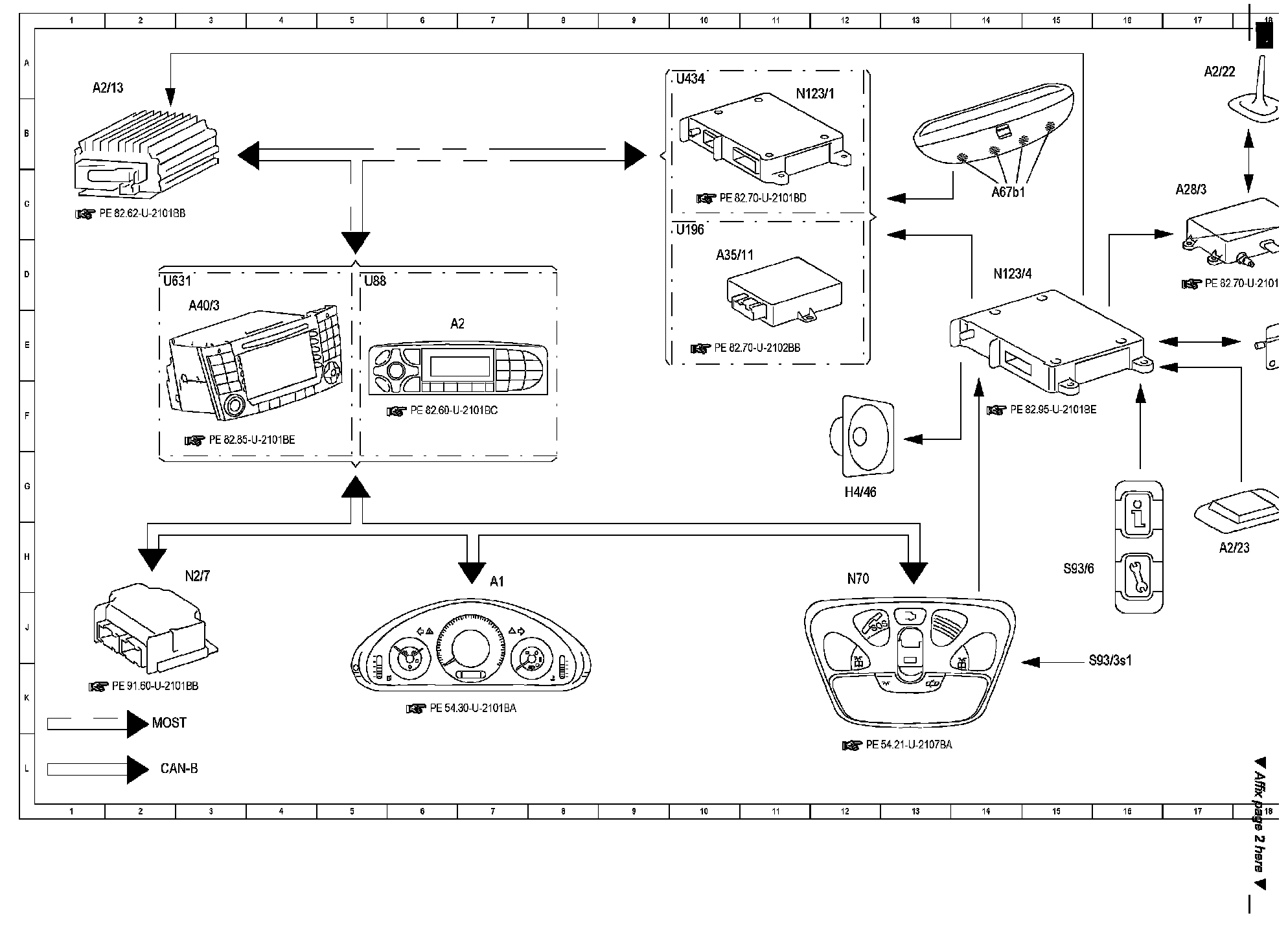

Function Diagram (Part 1):

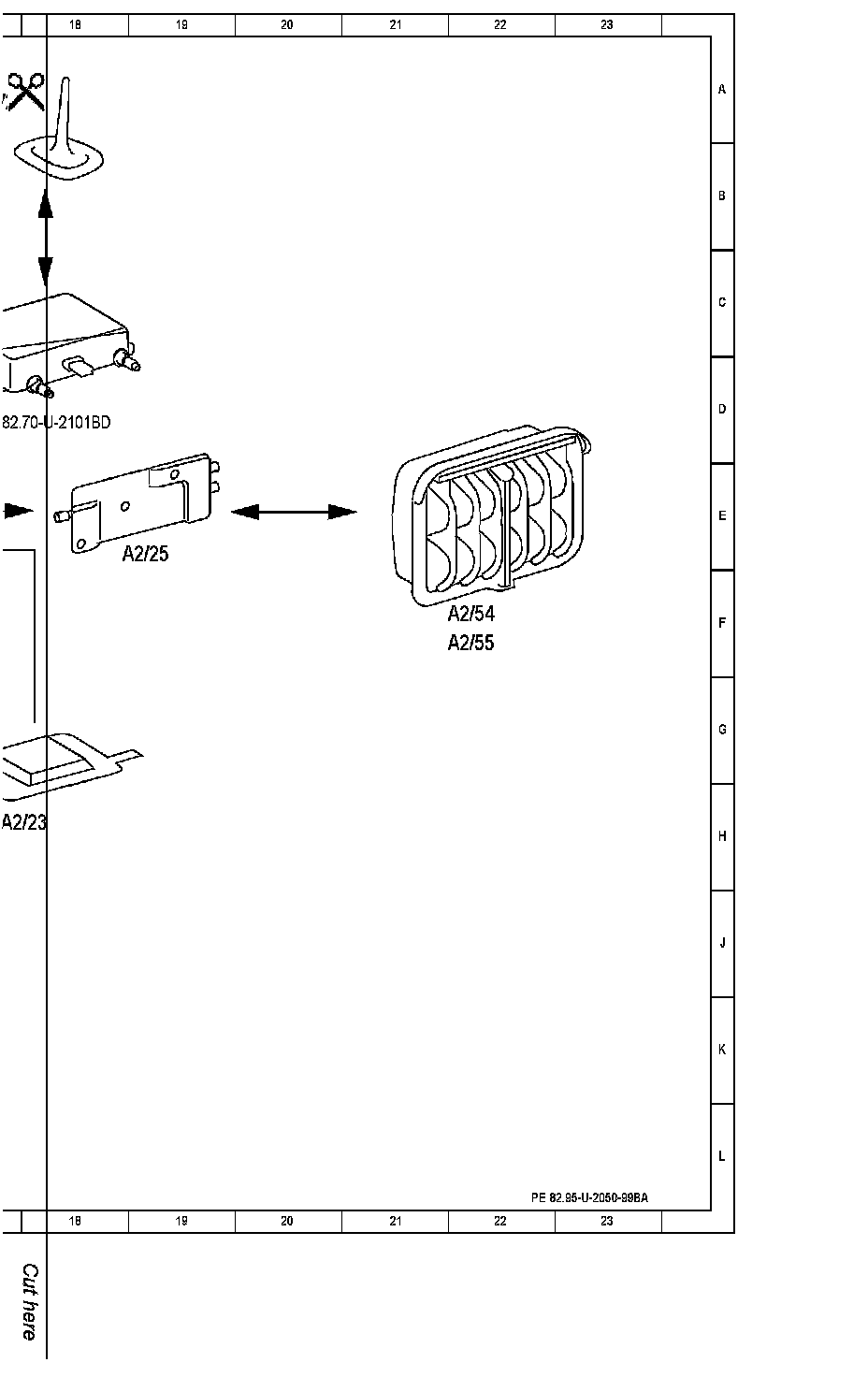

Function Diagram (Part 2):

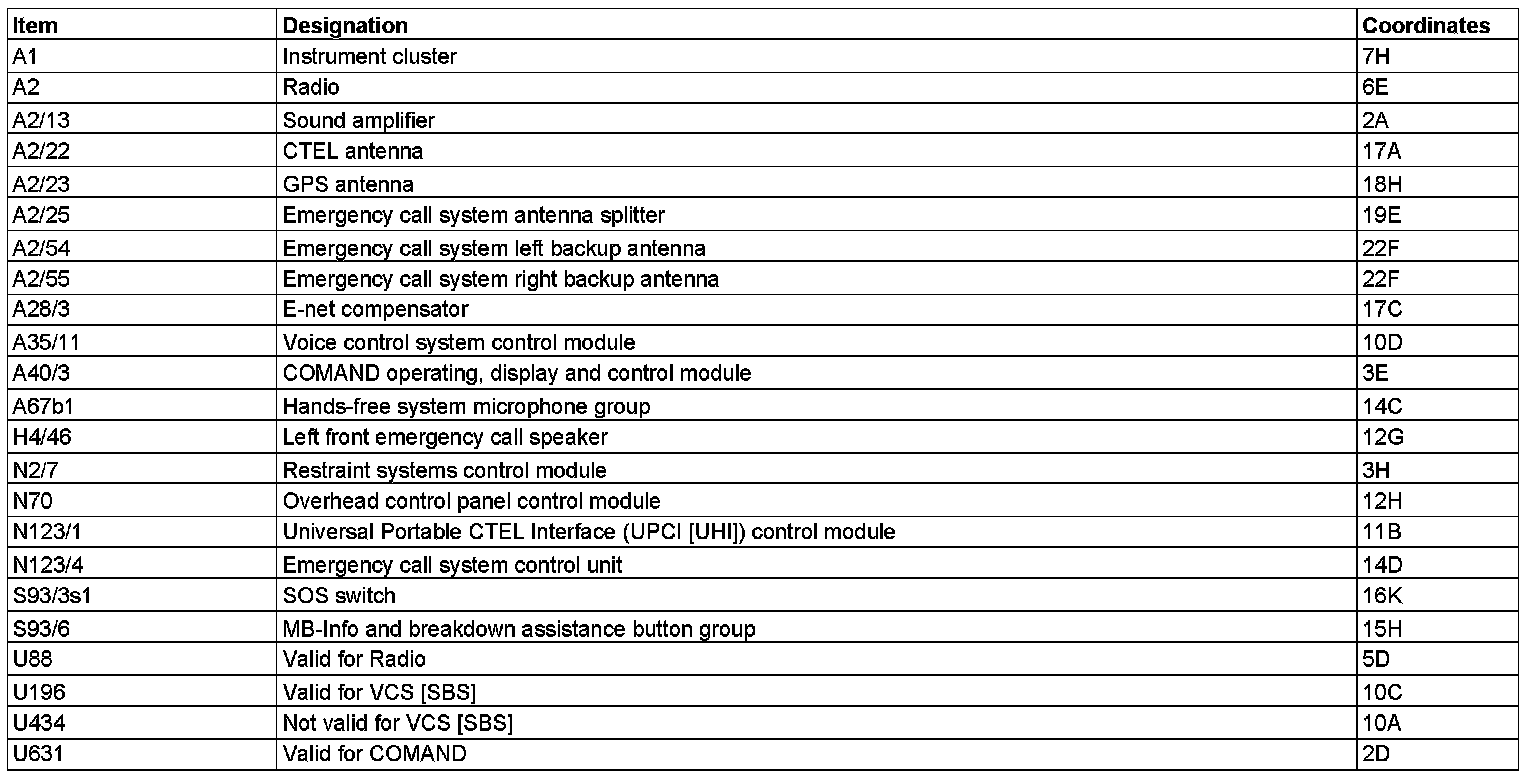

Component Description/Coordinates, A1 To U631:
