Function Diagrams



Function Diagram For Cellular Phone PE82.70-U-2051BA
- with CODE (388) Telephone "Handy", UPCI system

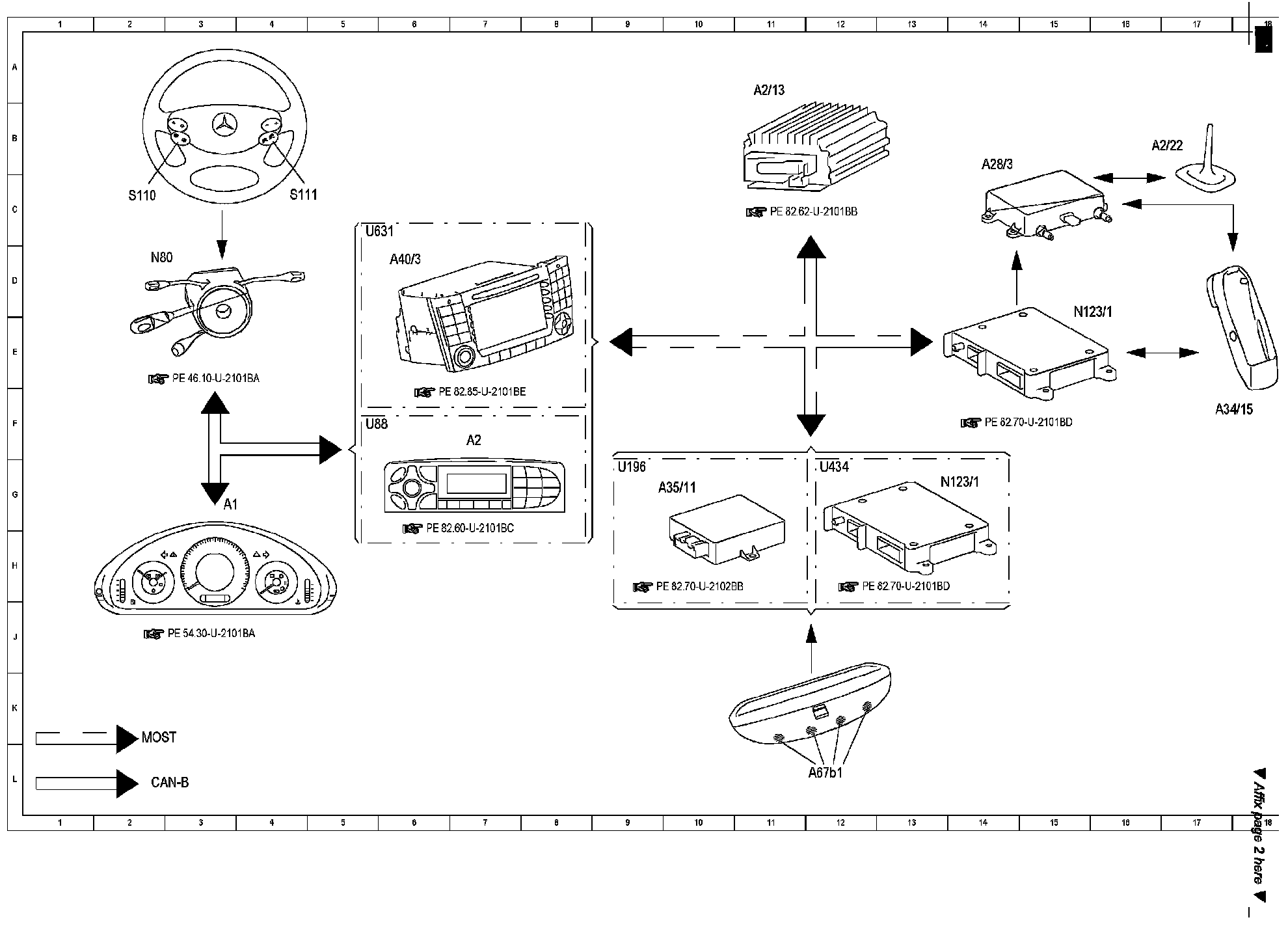

Function Diagram (Part 1):

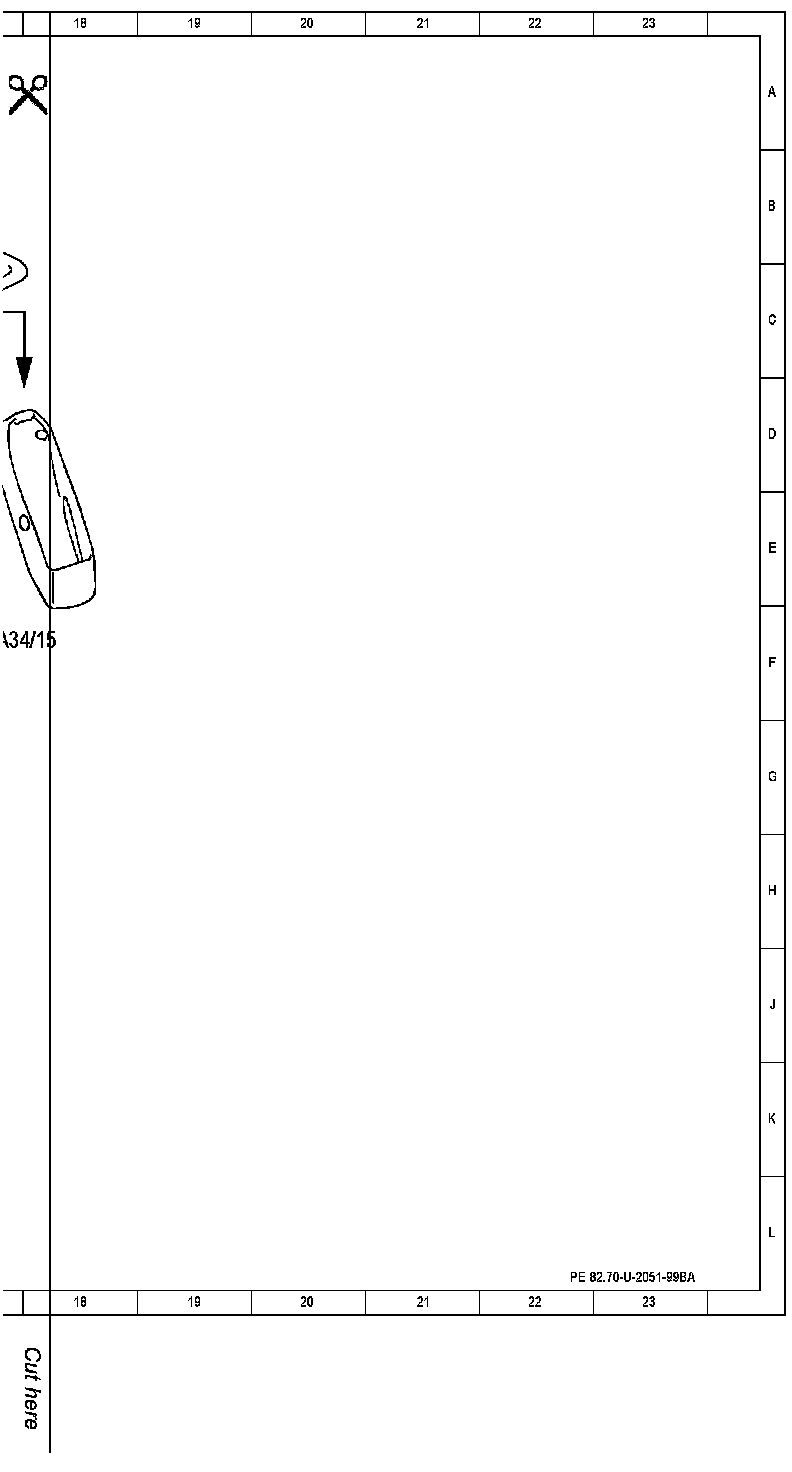

Function Diagram (Part 2):

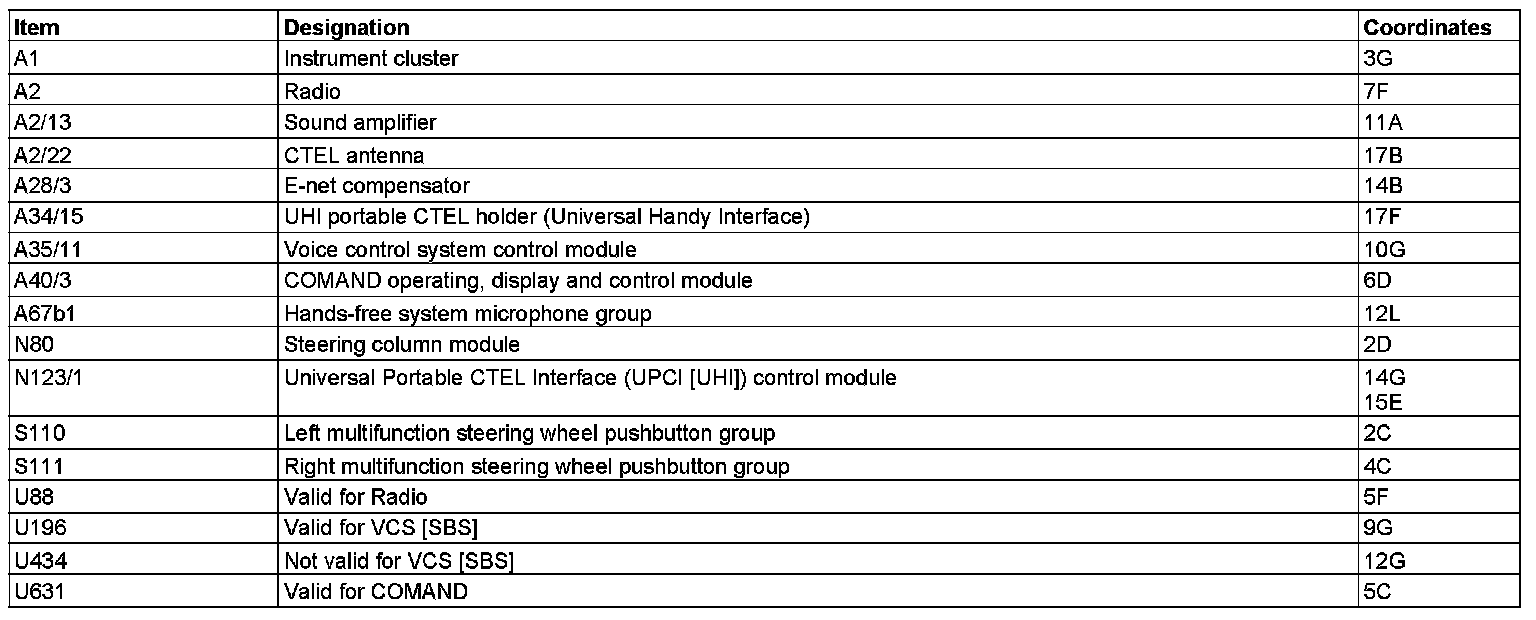

Component Description/Coordinates, A1 To U631:
