Wiper Relay, Stage 1-2
Wiper Relay, Stage 1-2
Wiper Relay, Stage 1-2

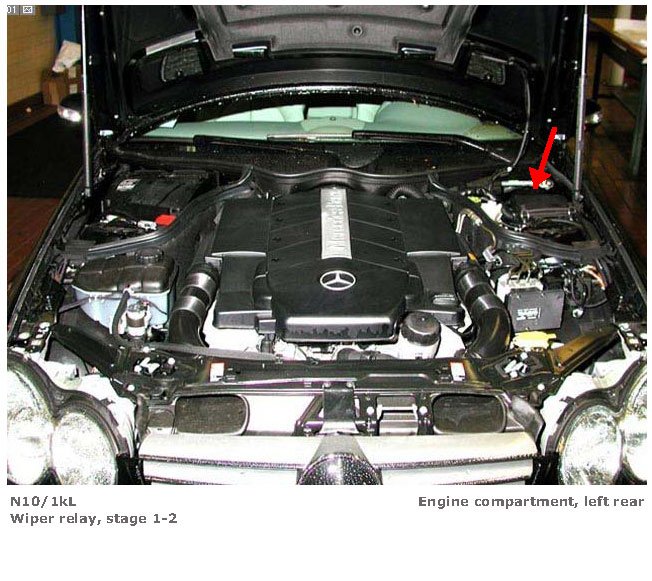

Wiper Relay, Stage 1-2 (View 1):

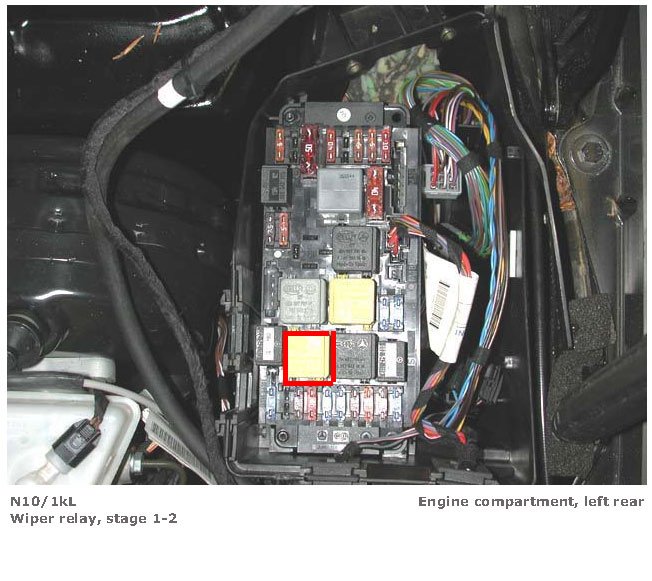

Wiper Relay, Stage 1-2 (View 2):

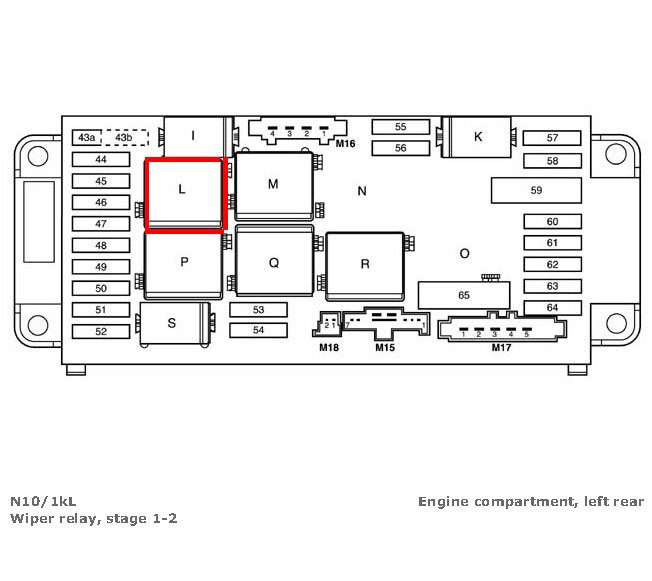

Wiper Relay, Stage 1-2 (View 3):
