AR42.40-P-0820A Remove/Install Left or Right Rear Axle Speed Sensor

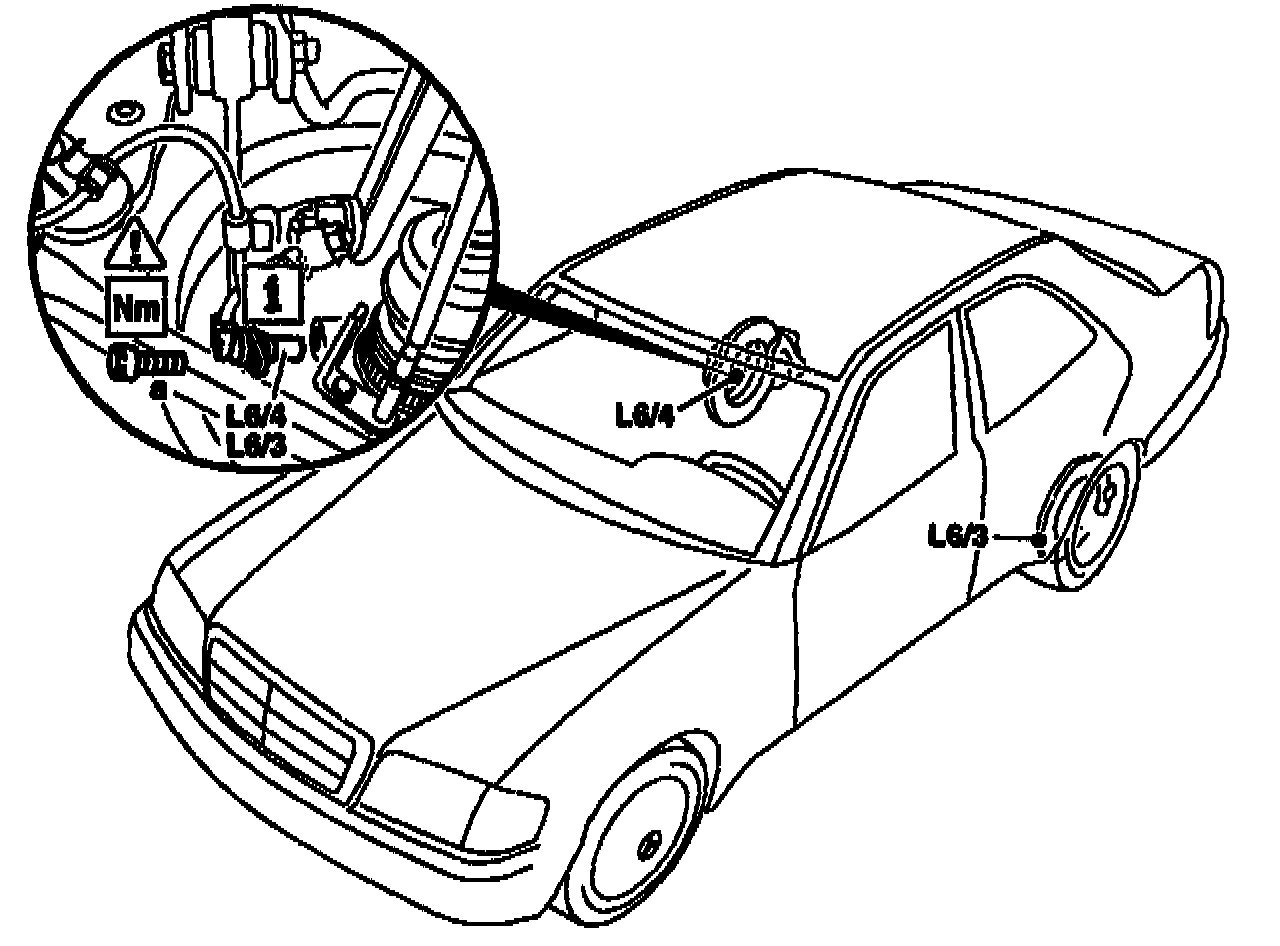

Shown On Model 202:

Item L6/3a, L6/4a Self-locking hexagon socket bolts, rear axle VSS sensor

Item L6/3, L6/4 Rear axle VSS sensor.



Installation:
- Replace bolts.
- Check wheel hub rotor for damage and dirt.
- Pay attention to cleanliness of the magnetic tip.
- Lightly lubricate bore in wheel carrier.
- Tighten self-locking bolt, rear axle VSS sensor to: 8 Nm
