AR42.10-P-0310P Remove/Install Stepped Tandem Master Brake Cylinder

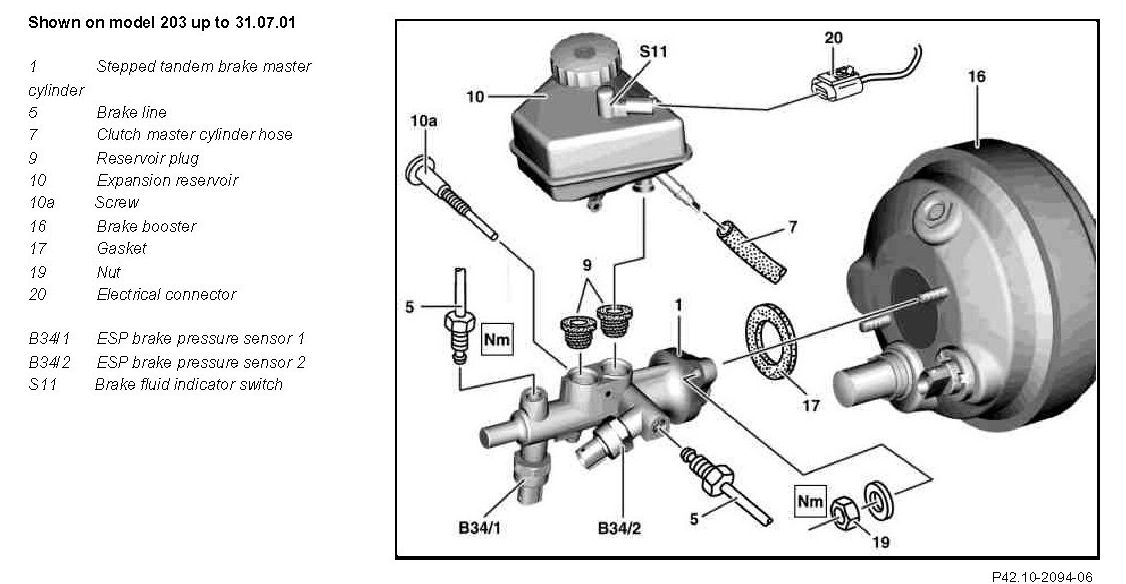

Component Identification:

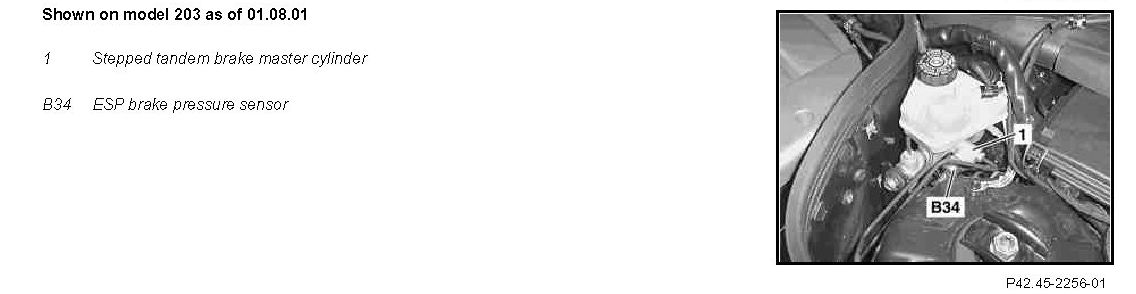

Component Identification:

Modification notes:

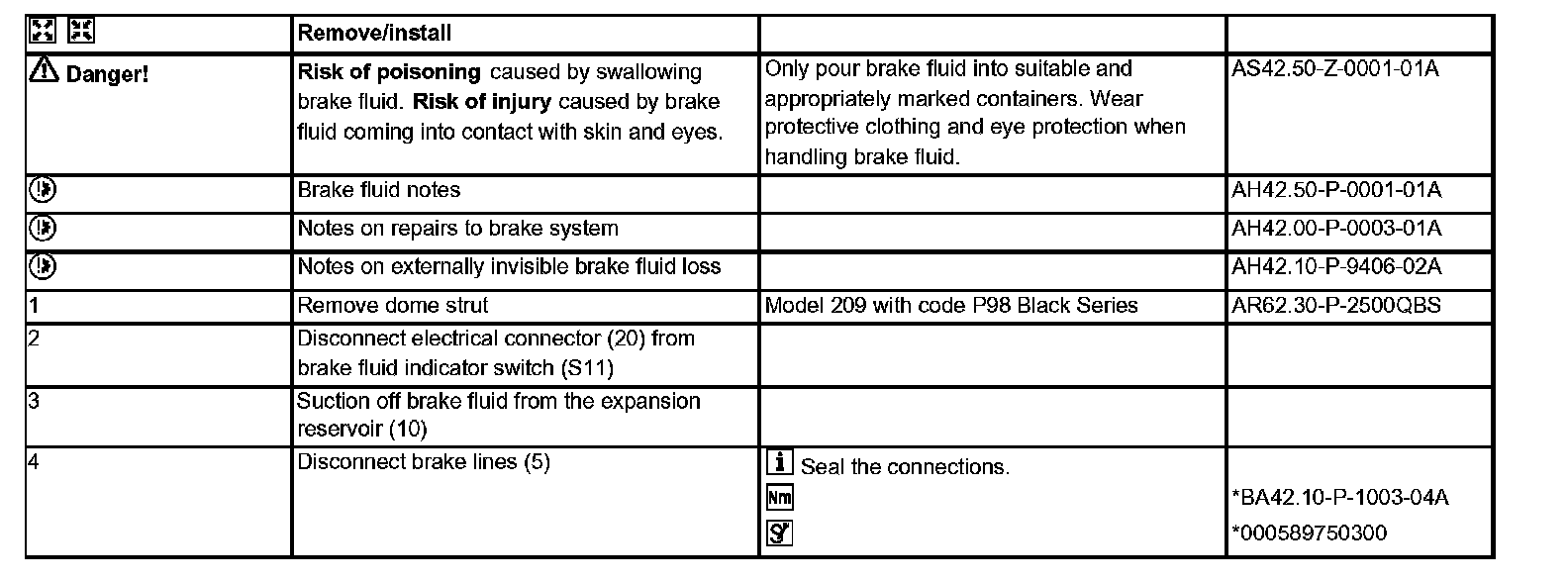

Remove/install Steps 1-4:

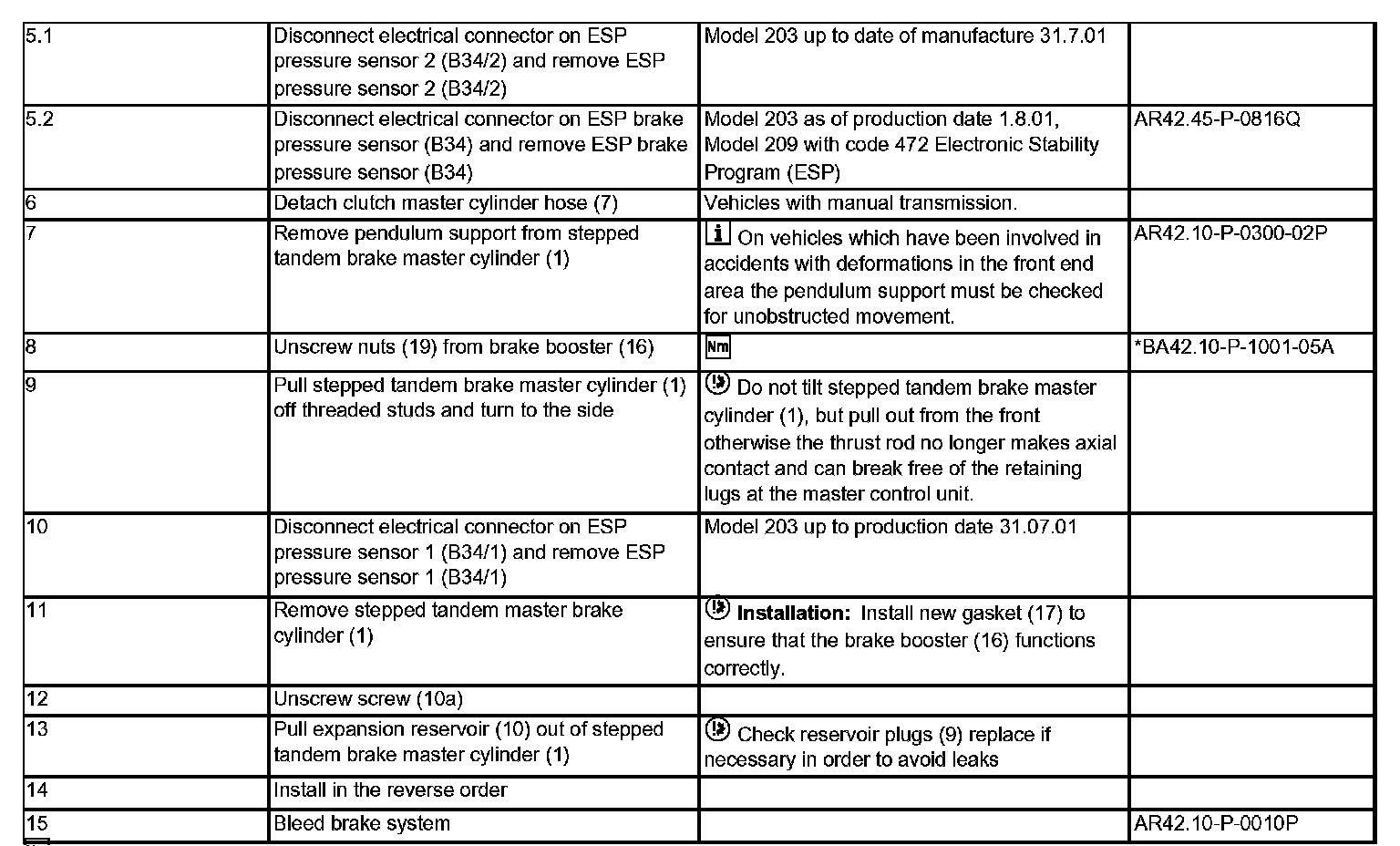

Remove/install Steps 5.1-15:

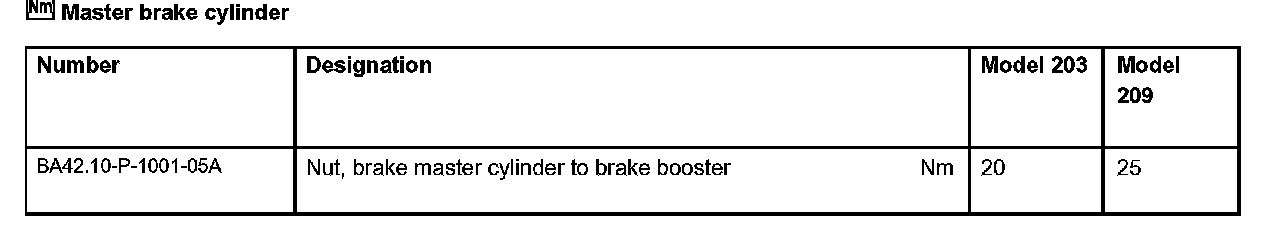

Master brake cylinder:

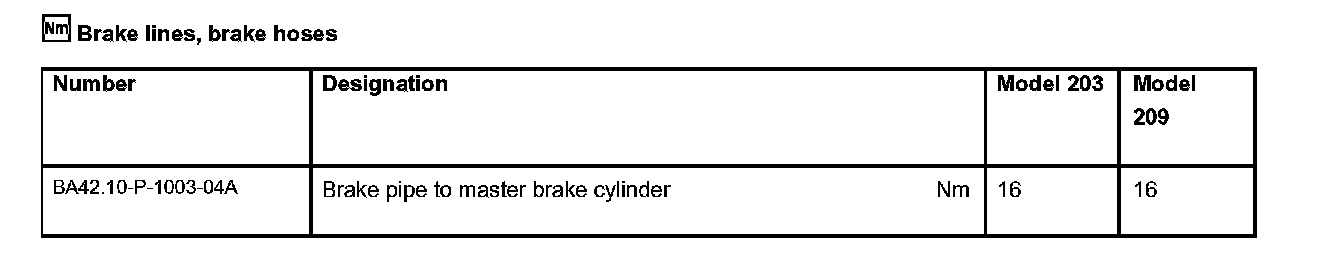

Brake lines, brake hoses:

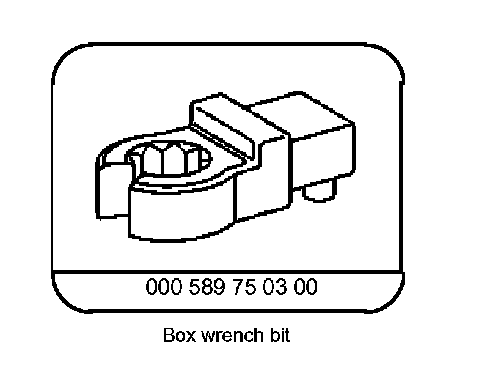

Special Tools:
