AR42.10-P-0300-02P Remove/Install Rocker Pendulum on Master Brake Cylinder

AR42.10-P-0300-02P Remove/Install Rocker Pendulum on Master Brake Cylinder





Remove pendulum support

1 Remove spring nut from the trunnion of the master brake cylinder.

The single-thread nuts must be destroyed to remove the pendulum support (1a) and must therefore always be replaced.

2 Pull pendulum support with grommet off master brake cylinder and detach from side rail.
3 Inspect grommet for damage, replace if necessary.

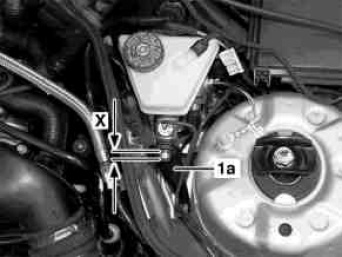

Shown on model 203

X approx. 5 mm

Install pendulum support

4 Fit spring nut.

To prevent the pendulum support slipping off the pins of the master brake cylinder, the single-thread nuts must be pushed on according to dimension (X).
