AR29.10-P-4597P Remove/Install Brake Pedal
AR29.10-P-4597P Remove/Install Brake Pedal
AR29.10-P-4597P Removing and installing brake pedal
- Transmission 716.6

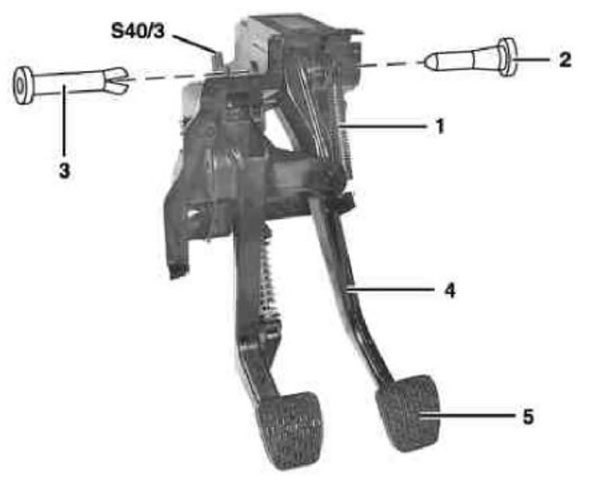

Component Identification:

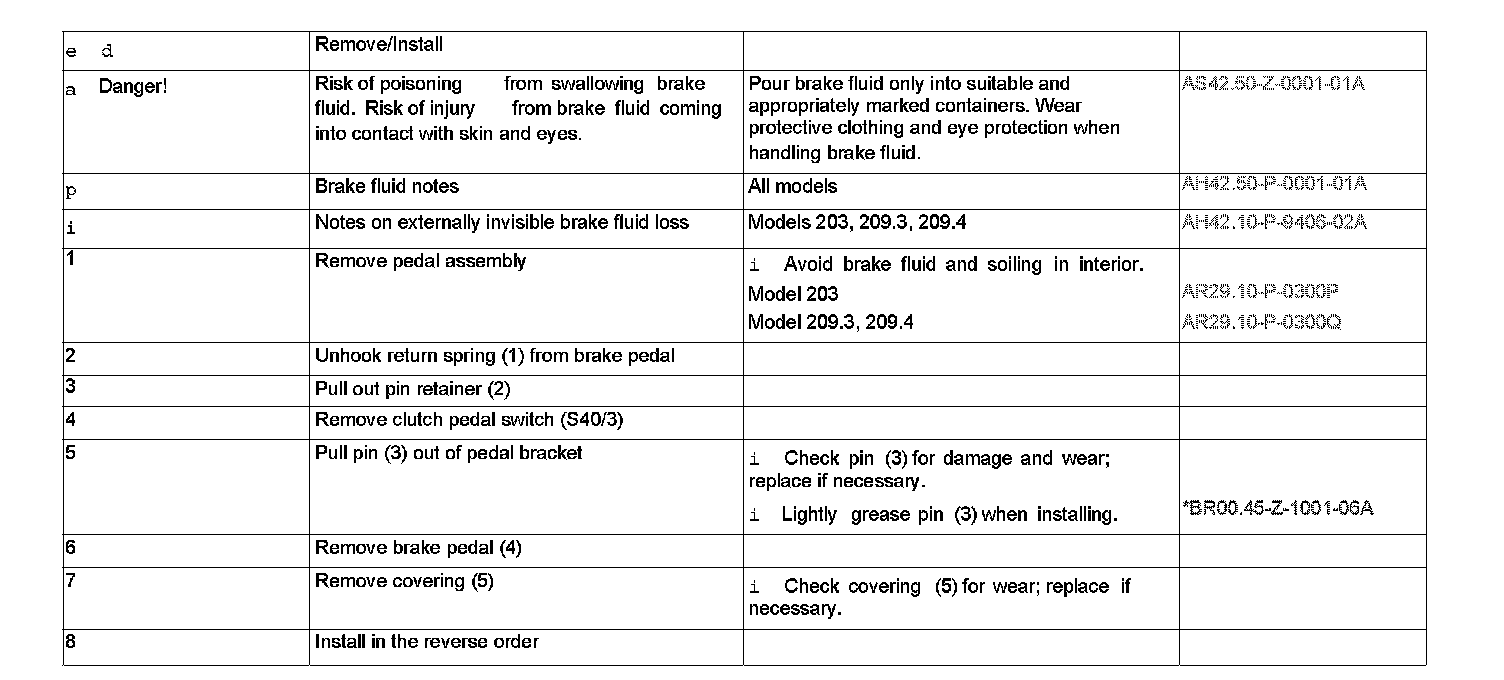

Steps 1-8:

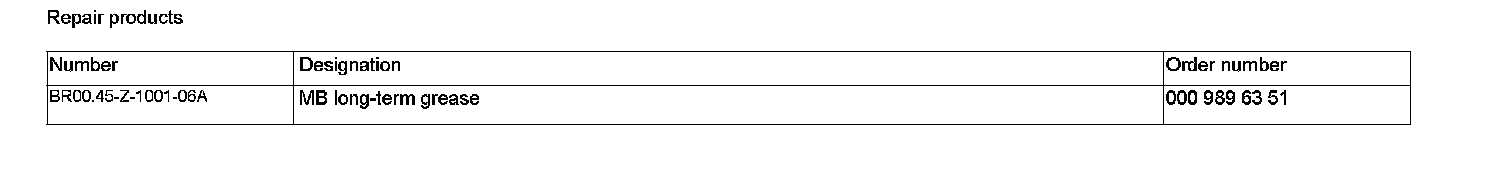

Repair Products:
