AR88.30-P-1000Q Remove/Install Spare Tire Well



AR88.30-P-1000Q Remove/Install Spare Tire Well
- except CODE (550) Trailer hitch

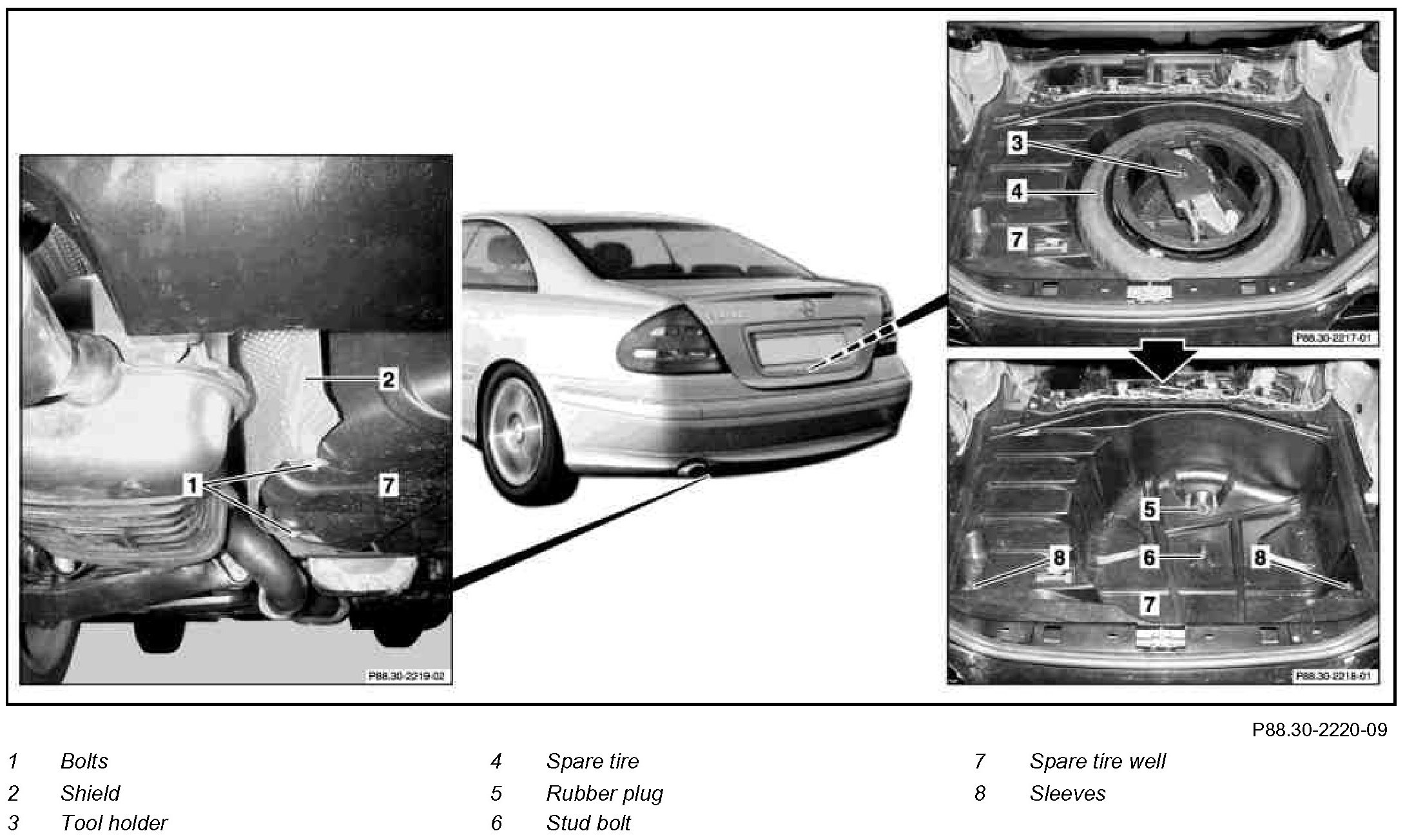

Component Identification:

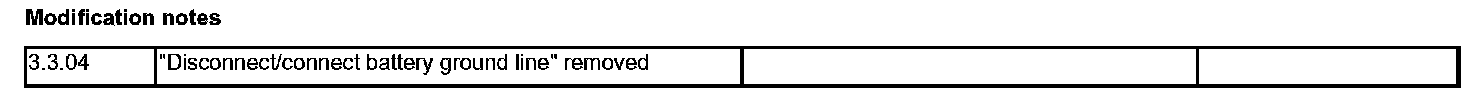

Modification Notes:

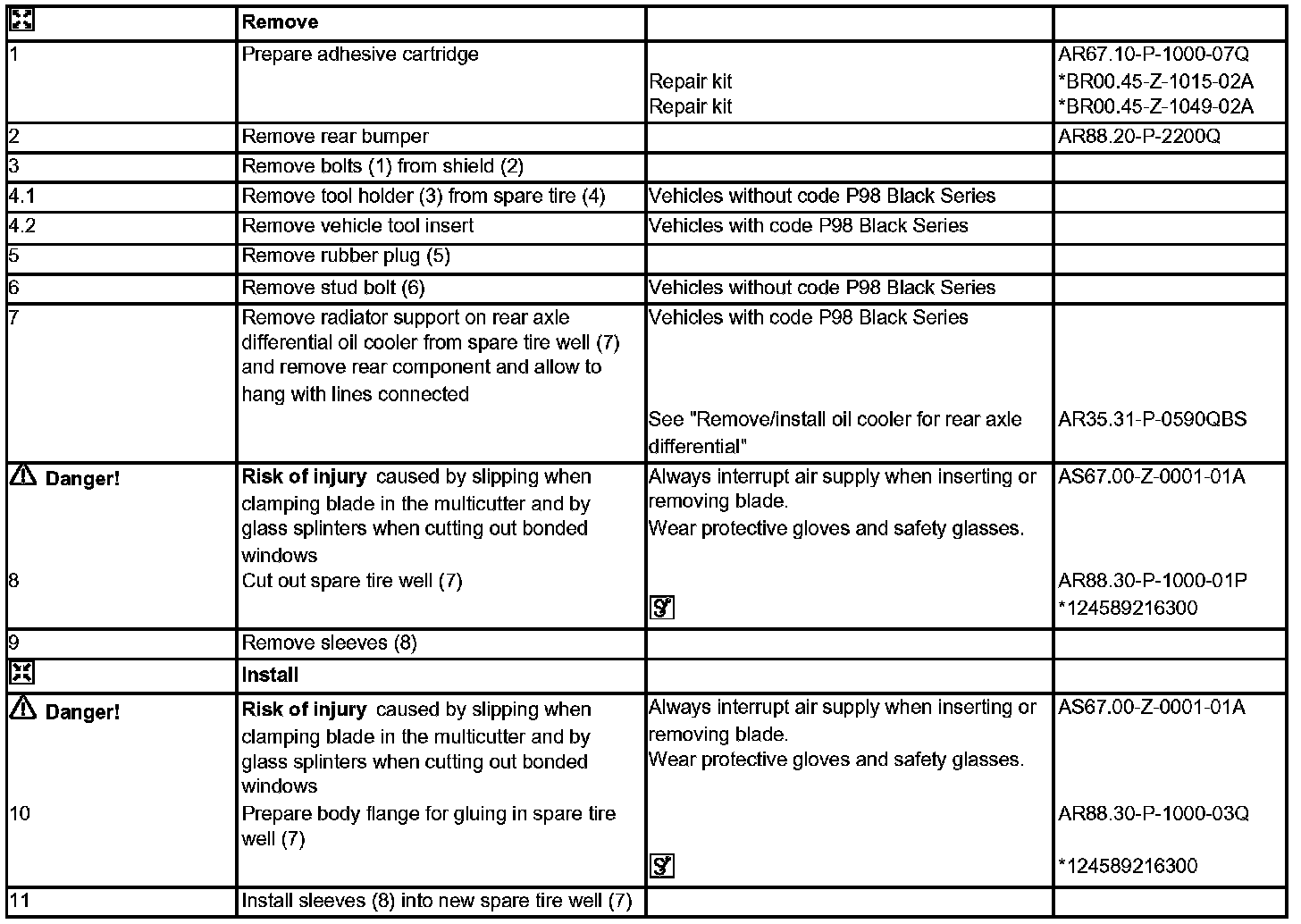

Steps 1 - 11:

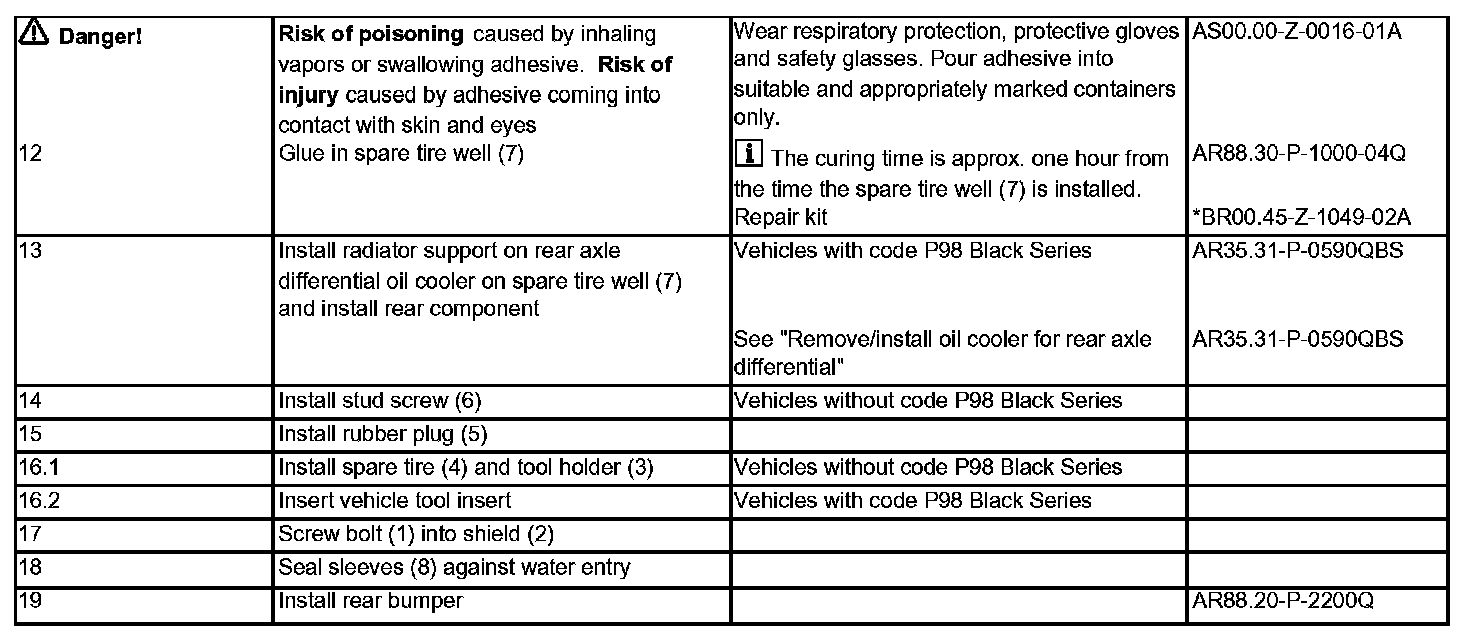

Steps 12 - 19:

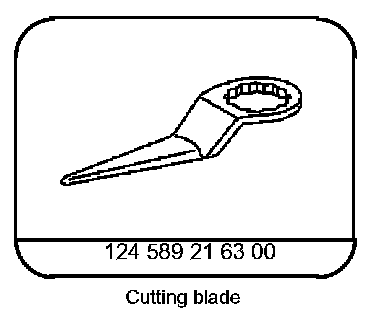

Special Tools:

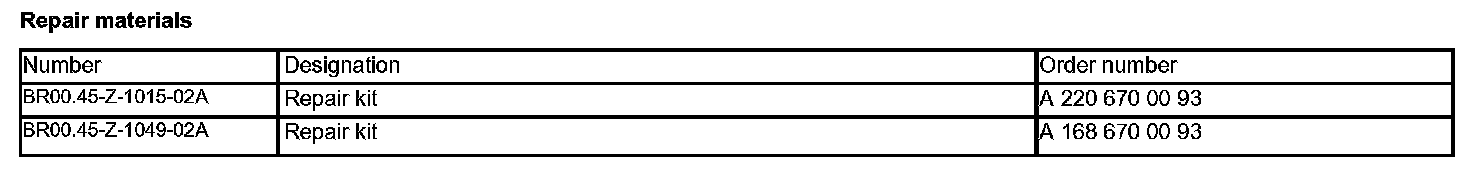

Repair materials:
