AR88.30-P-1000-01P Cut Out Spare Tire Well

AR88.30-P-1000-01P Cut Out Spare Tire Well

Special Tools:

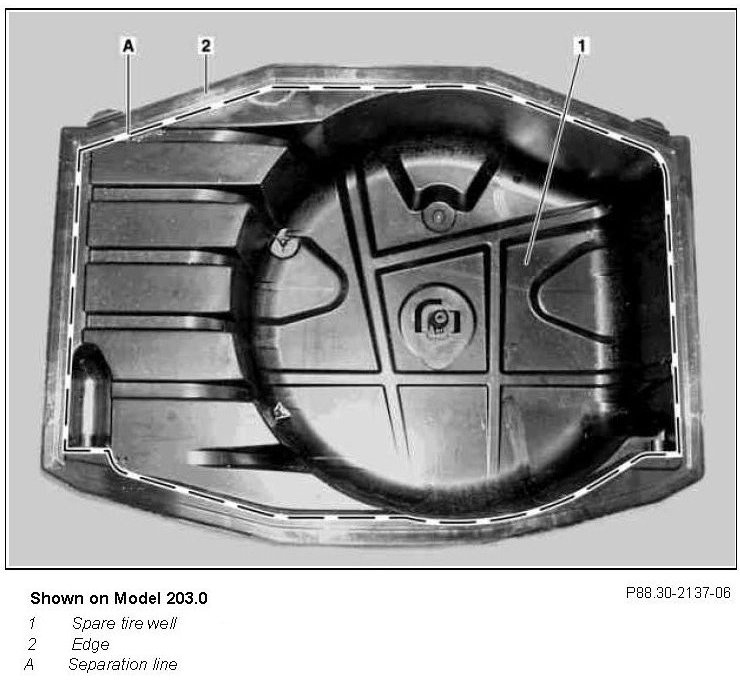

Component Identification:

1. Mark separation line (A) on spare tire well (1).
2. Clamp cutting blade into multicutter.
3. Saw spare tire well (1) vertically along separation line (A).

Avoid damaging paint.

4. Remove spare tire well (1) upward.
5. Clamp blade into multicutter.
6. Moisten whetstone and sharpen both sides of blade with machine switched on.
7. Cut adhesive bead with multicutter all-round.
8. Remove edge (2).
