Vacuum/Pressure Pump: Description and Operation

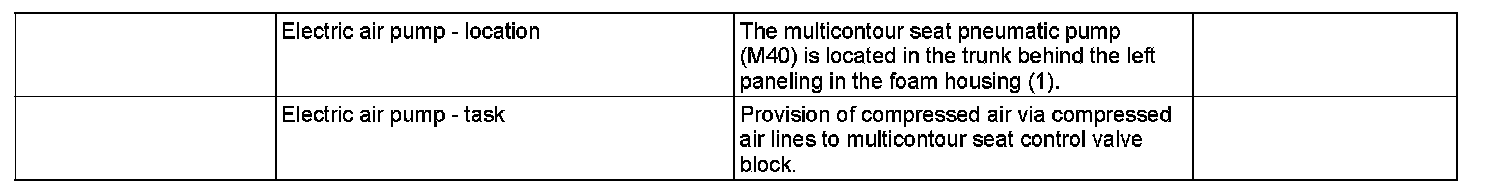

GF91.25-P-2120Q Electric Air Pump, Location/Task
- with CODE (404) Left multicontour seat
- with CODE (405) Right multicontour seat

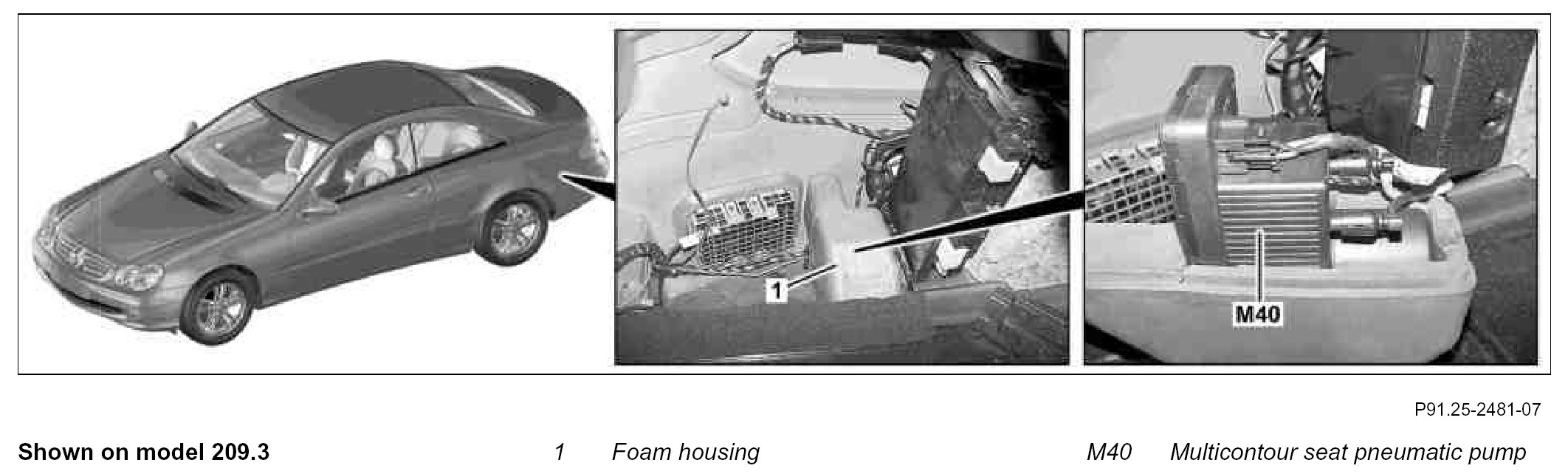

Component Identification:
