AR91.10-P-1450QBS Remove/Install Front Seat Adjustment Mechanism



AR91.10-P-1450QBS Remove/Install Front Seat Adjustment Mechanism
- with CODE (P98) Black Series

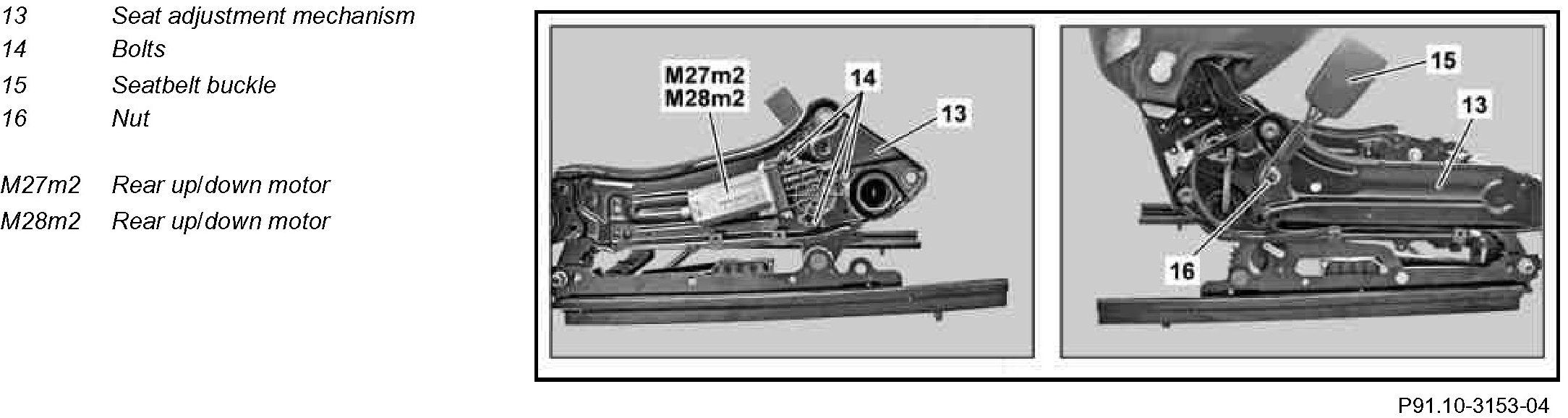

Component Identification:

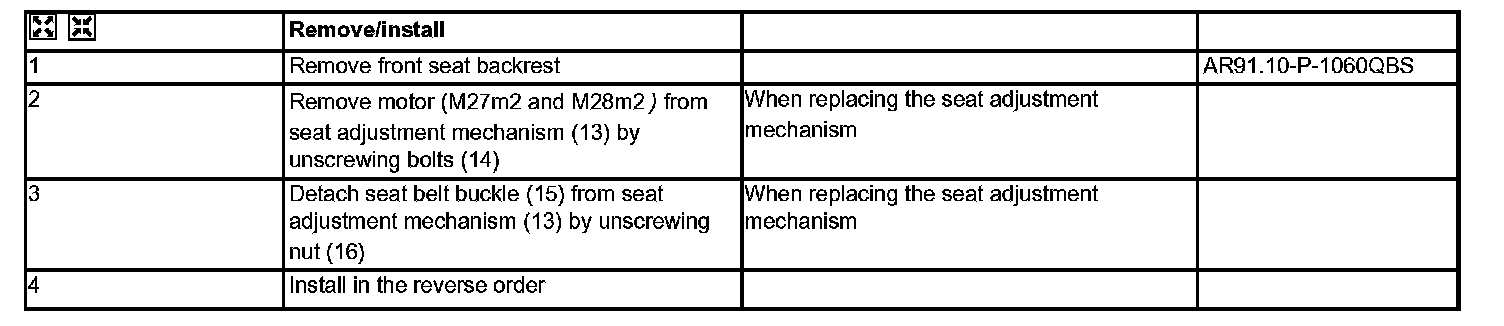

Steps 1 - 4:
