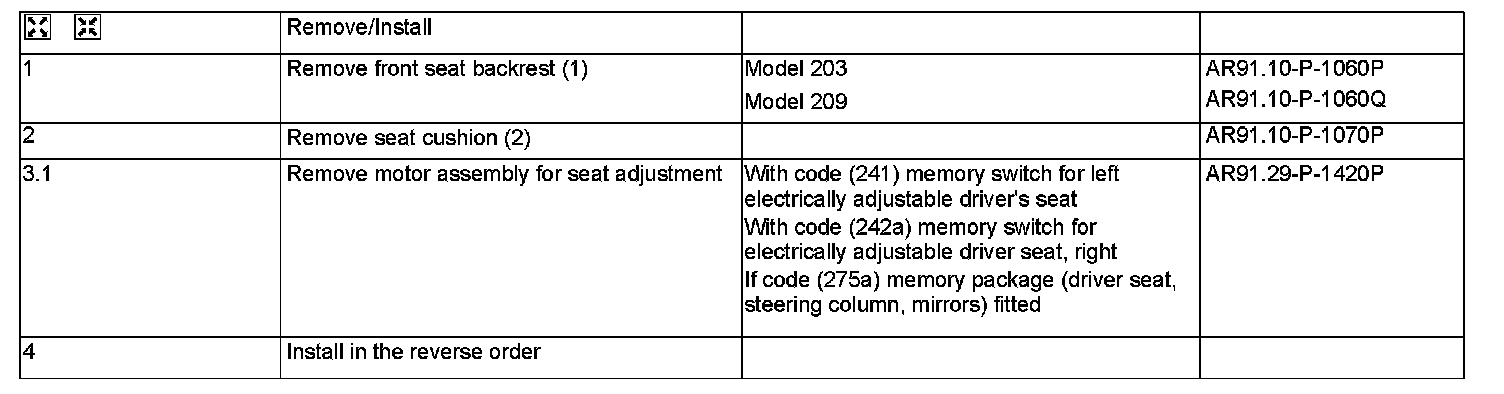

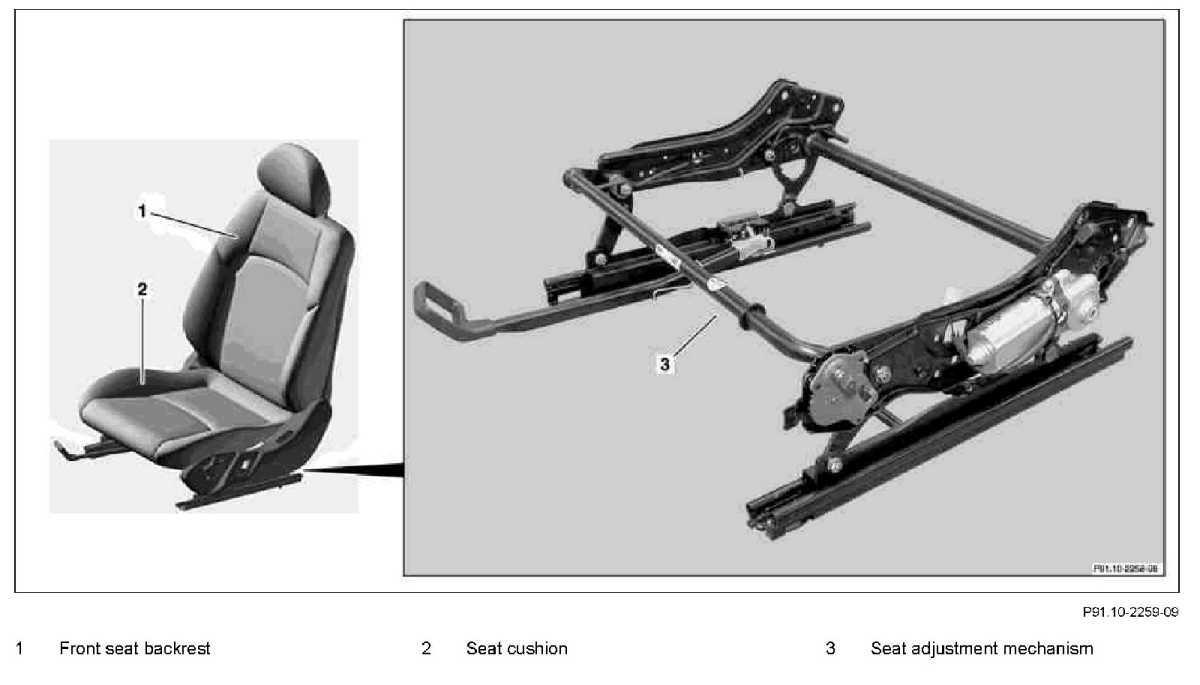

AR91.10-P-1450P Remove/Install Front Seat Adjustment Mechanism



AR91.10-P-1450P Remove/Install Front Seat Adjustment Mechanism
- except CODE (P98) Black Series [models 209]
