Seat Latch: Service and Repair

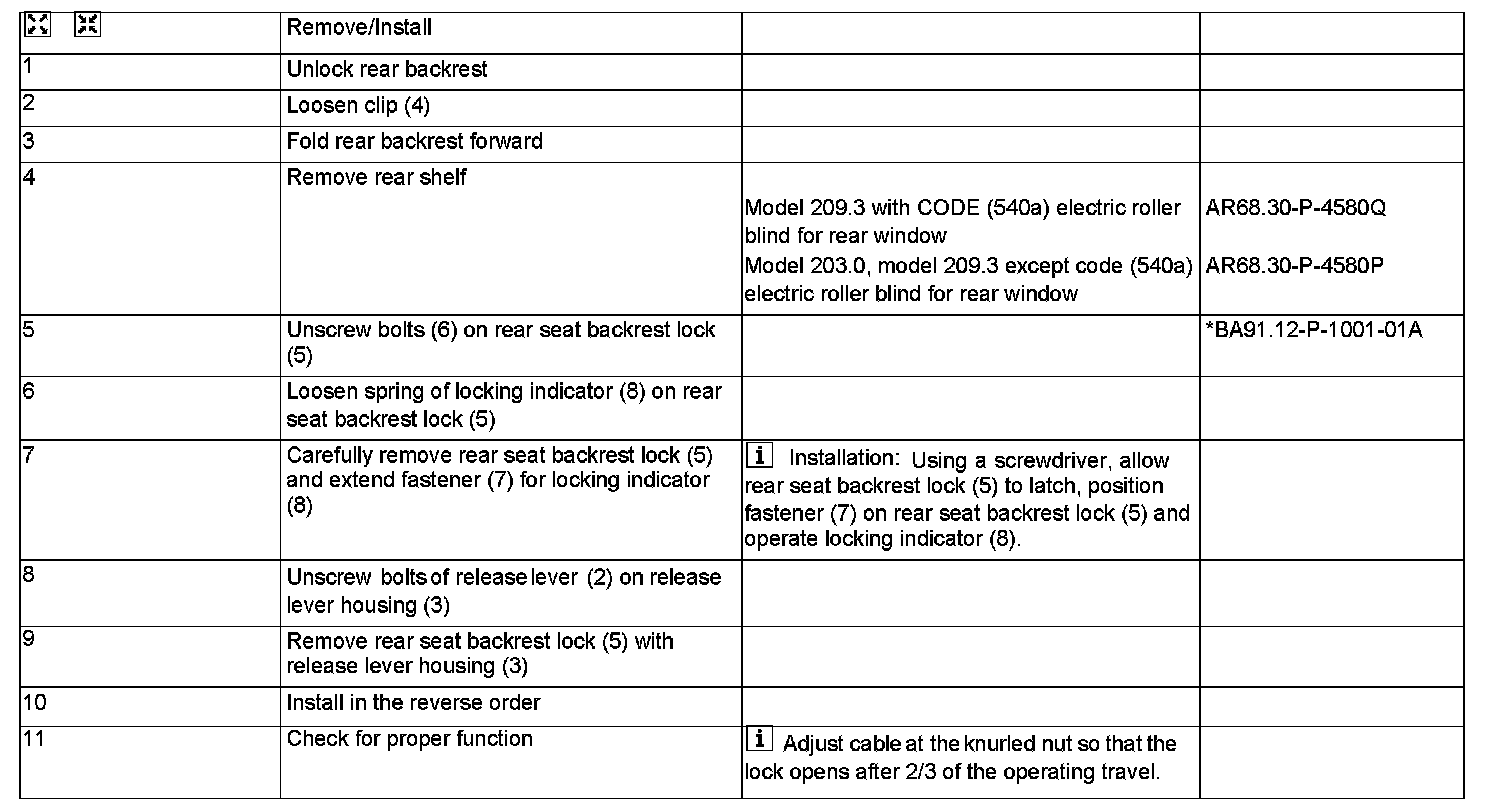

AR91.12-P-1730P Remove/Install Locking Mechanism For Folding Rear Seat Backrest
- with CODE (287) Through-loading feature

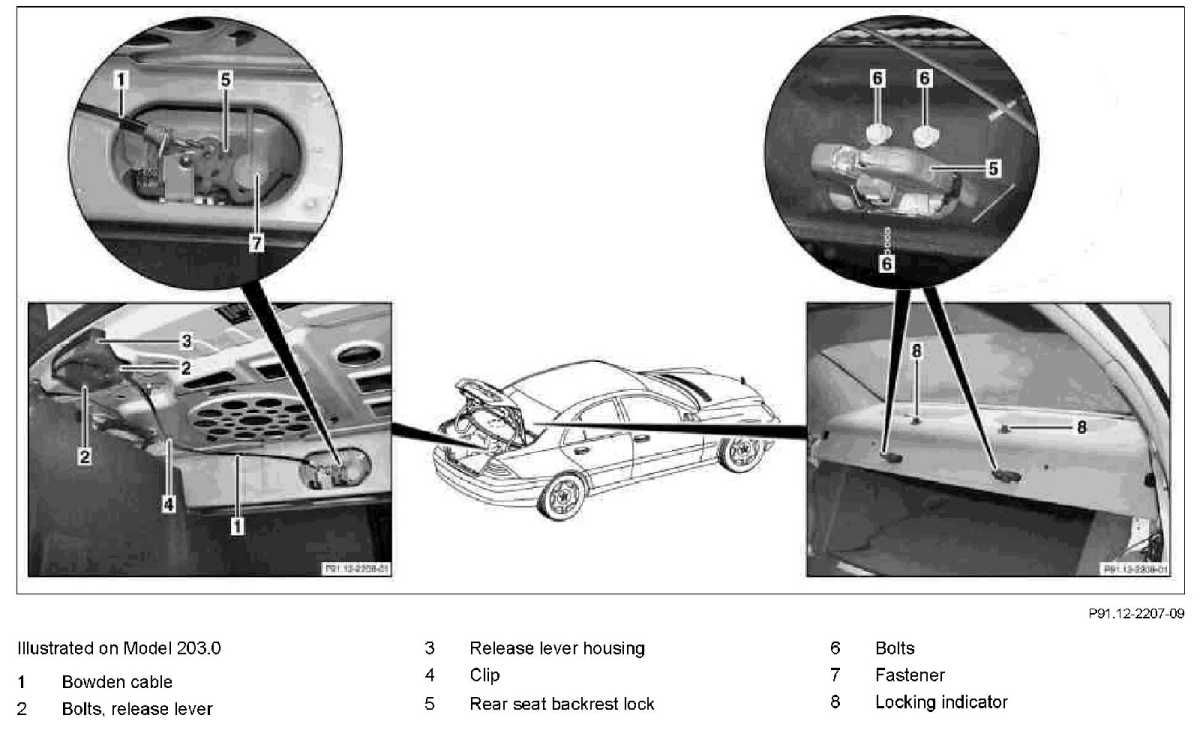

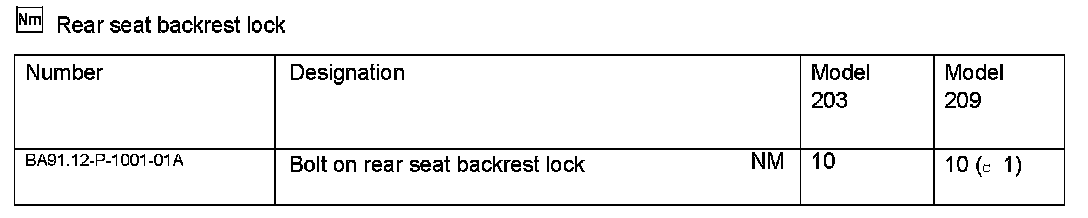

Rear Seat Backrest Lock:
