Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cushion >> Service and Repair >> AR91.12-P-1020P Remove/Install Rear Seat Cushion

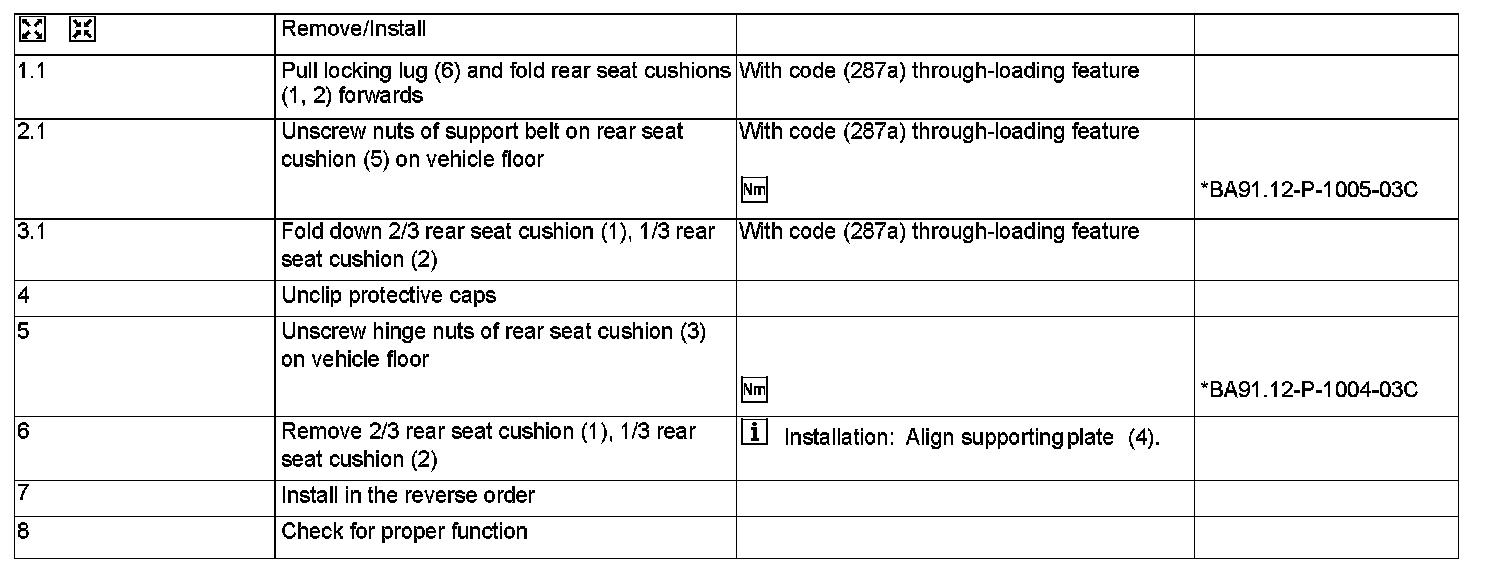

AR91.12-P-1020P Remove/Install Rear Seat Cushion



AR91.12-P-1020P Remove/Install Rear Seat Cushion
- with CODE (287a) Through-loading feature
- except CODE (P98) Black Series [models 209]

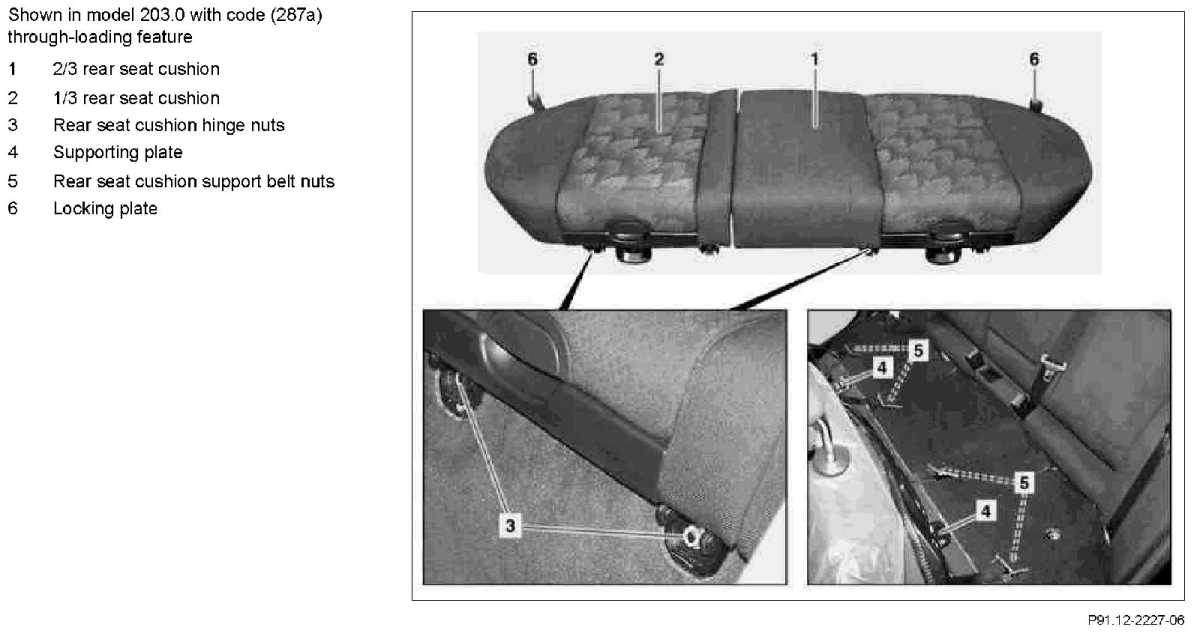

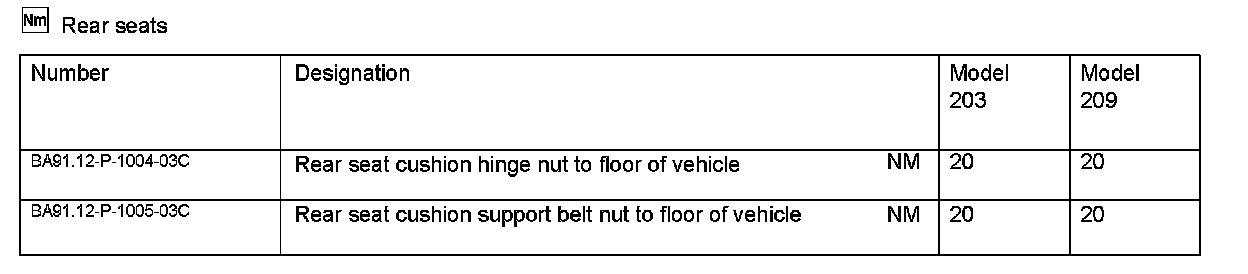

Rear Seats:
