AR91.10-P-3310QBS Remove/Install Seat Cushion



AR91.10-P-3310QBS Remove/Install Seat Cushion
- with CODE (P98) Black Series

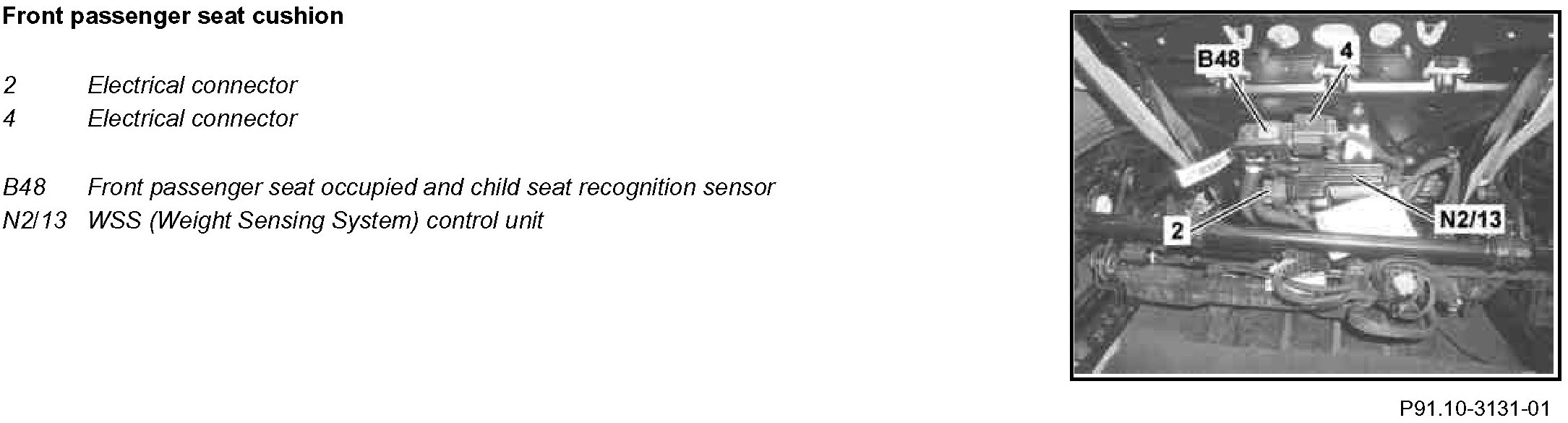

Component Identification:

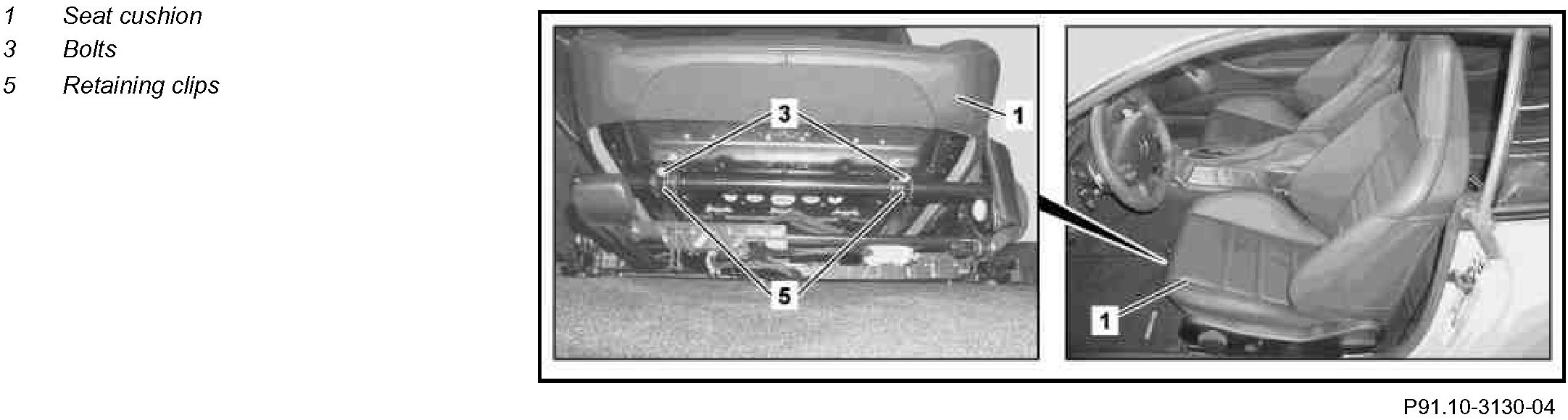

Component Identification:

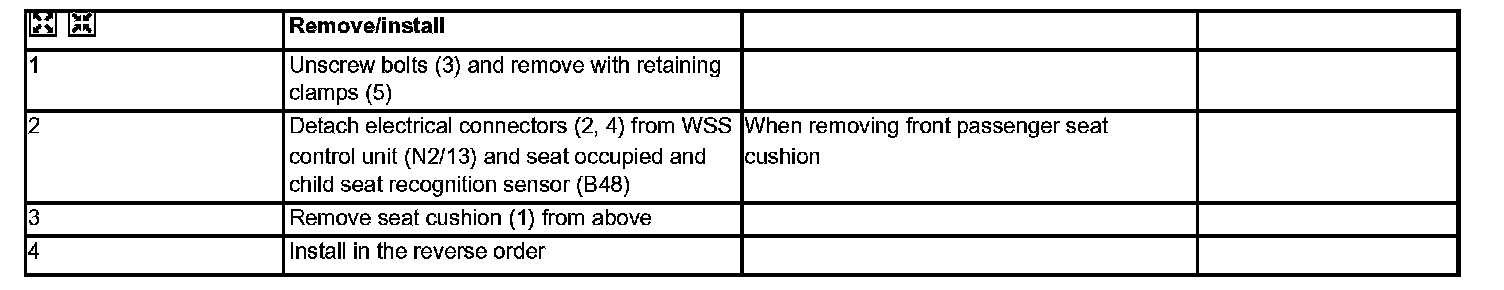

Steps 1 - 4:
