AR91.18-P-1870P Remove/Install Rear Seat Backrest Cover



AR91.18-P-1870P Remove/Install Rear Seat Backrest Cover
- except CODE (P98) Black Series [models 209]

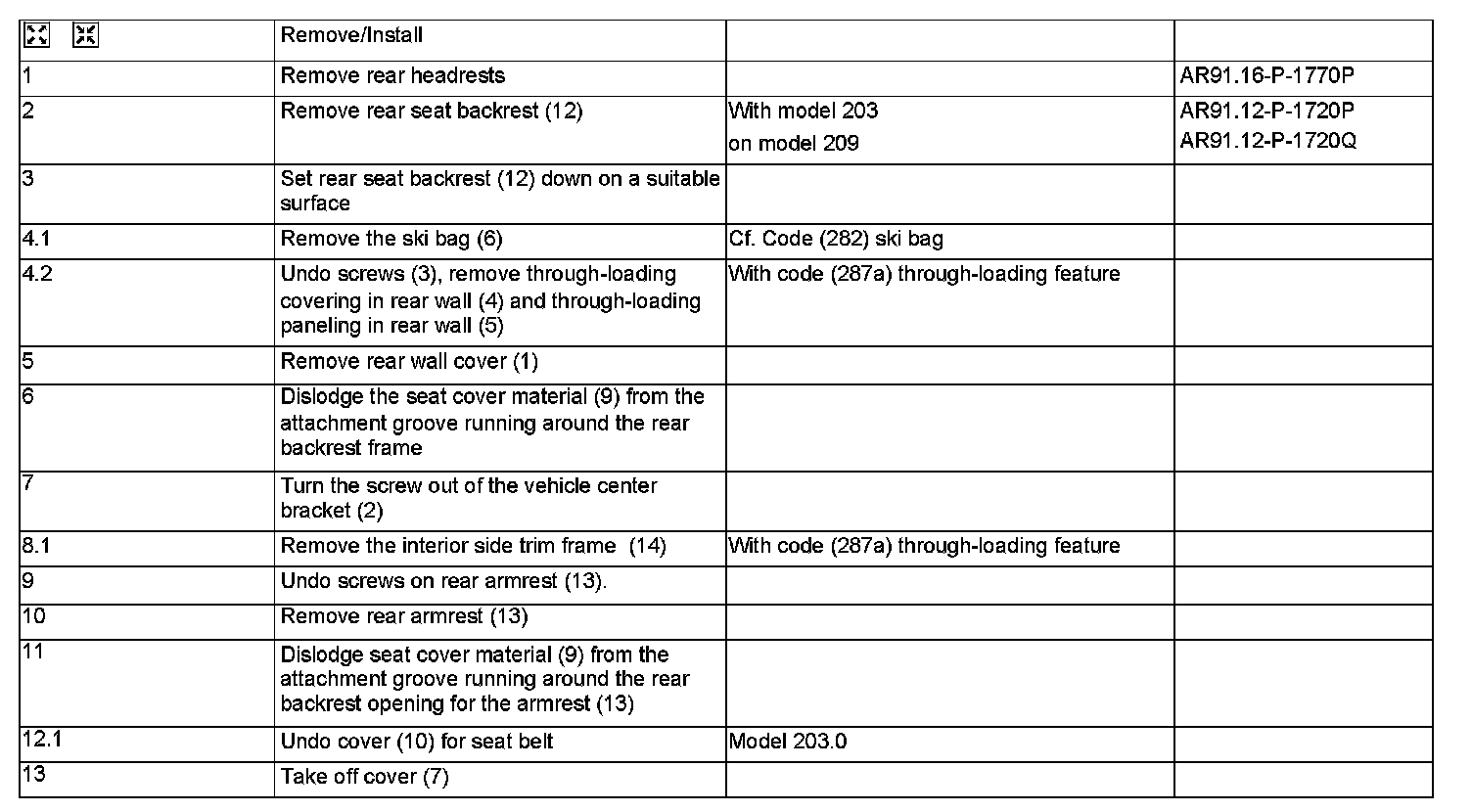

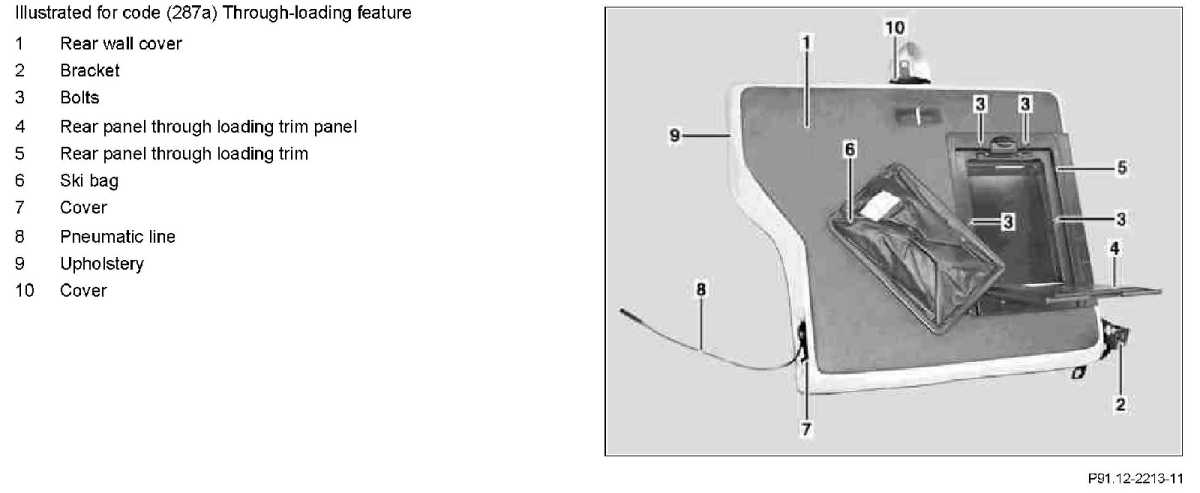

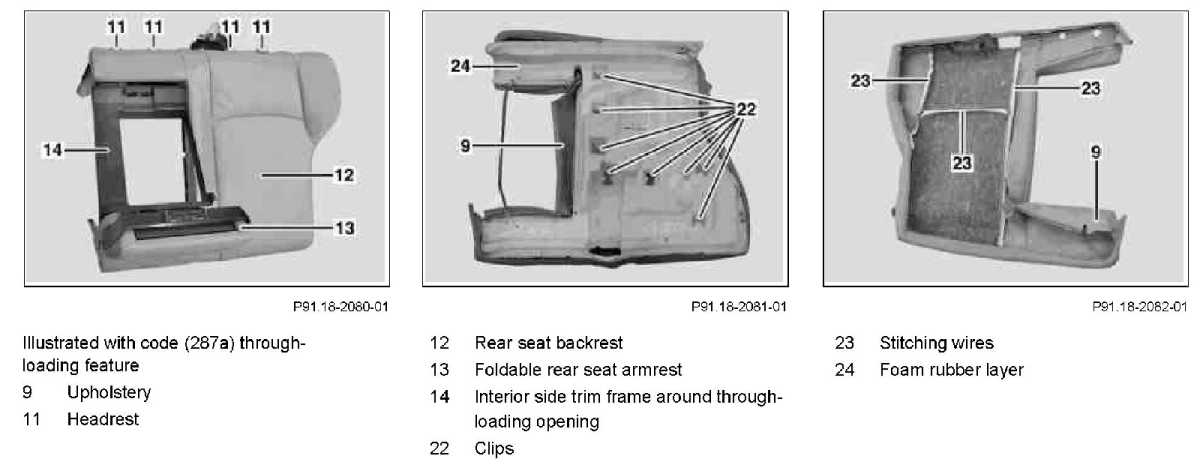

Part 1:

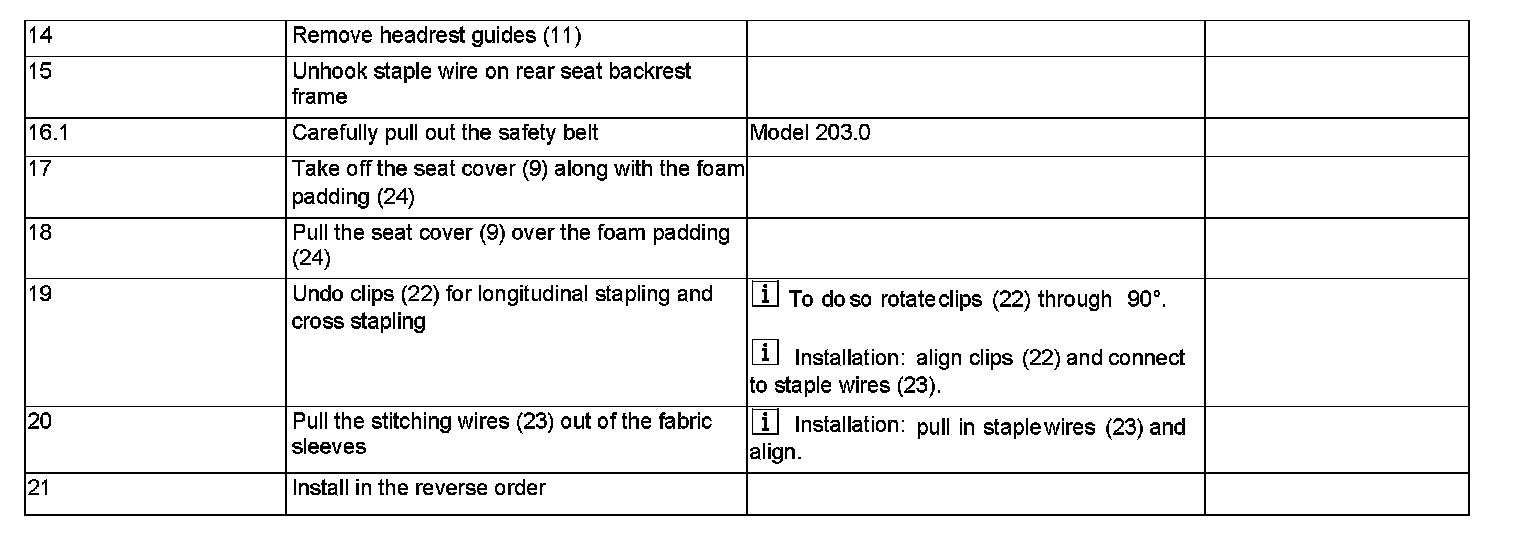

Part 2:
