Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> AR91.18-P-1820P Remove/Install Front Seat Backrest Cover

AR91.18-P-1820P Remove/Install Front Seat Backrest Cover

AR91.18-P-1820P Remove/Install Front Seat Backrest Cover
- except CODE (P98) Black Series [models 209]

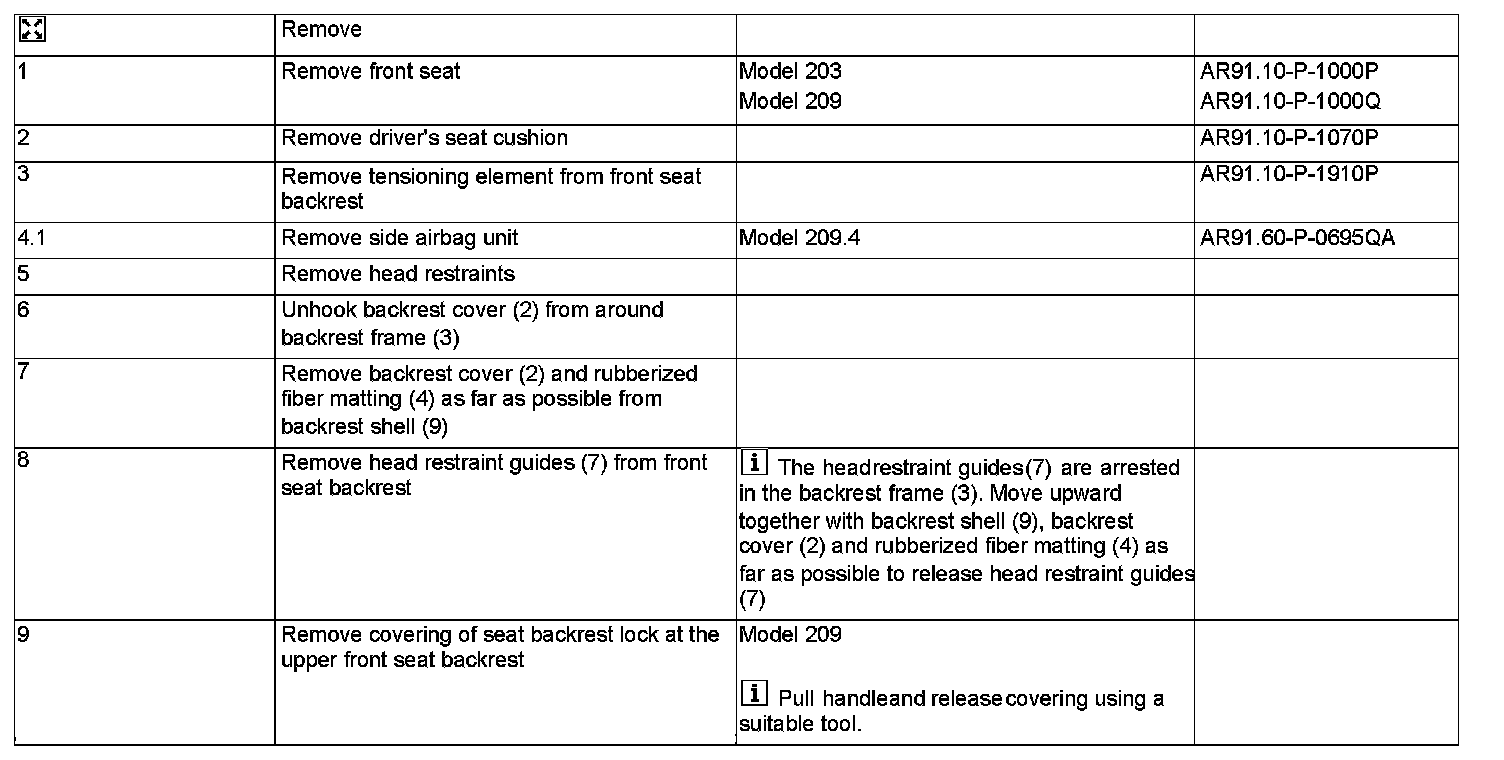

Part 1:

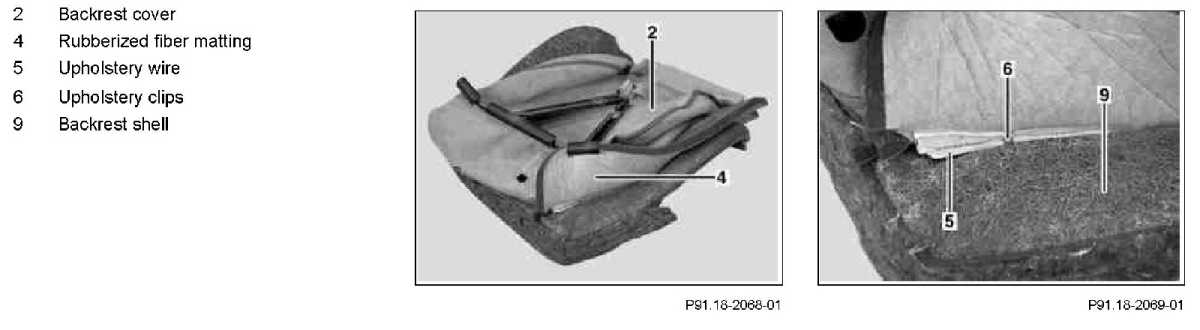

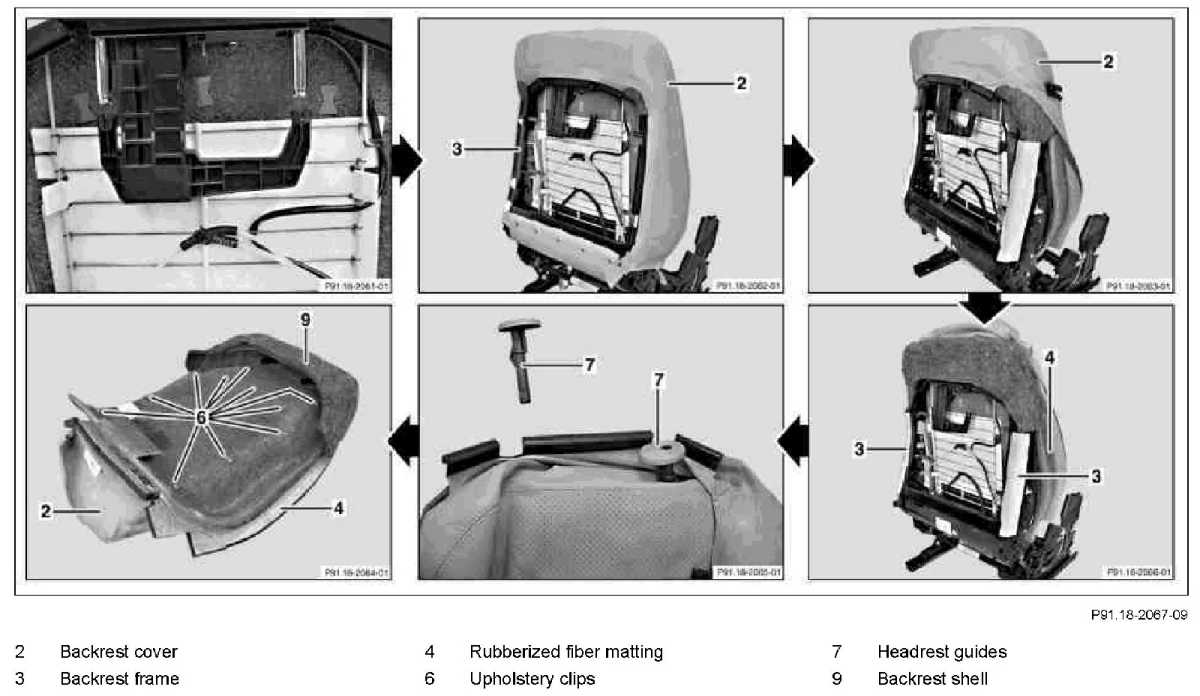

Part 2:
