Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> AR91.18-P-1800QA Remove/Install Front Seat Cushion Covering

AR91.18-P-1800QA Remove/Install Front Seat Cushion Covering



Remove/Install Front Seat Cushion Covering
- Driver Side
- except CODE (P98) Black Series

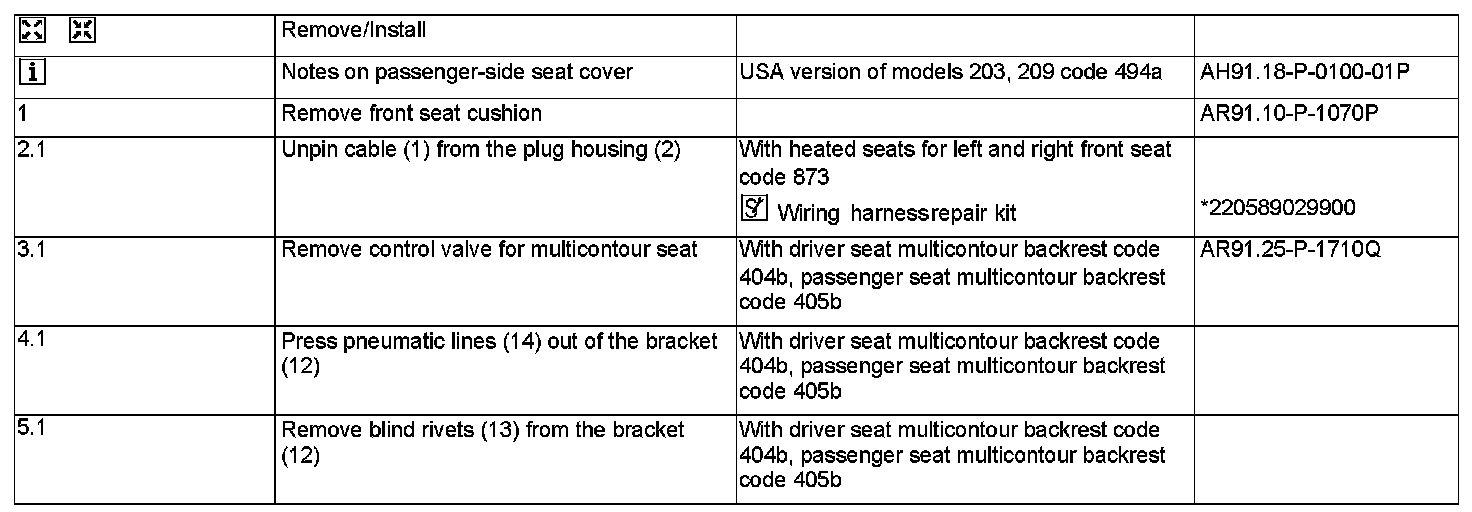

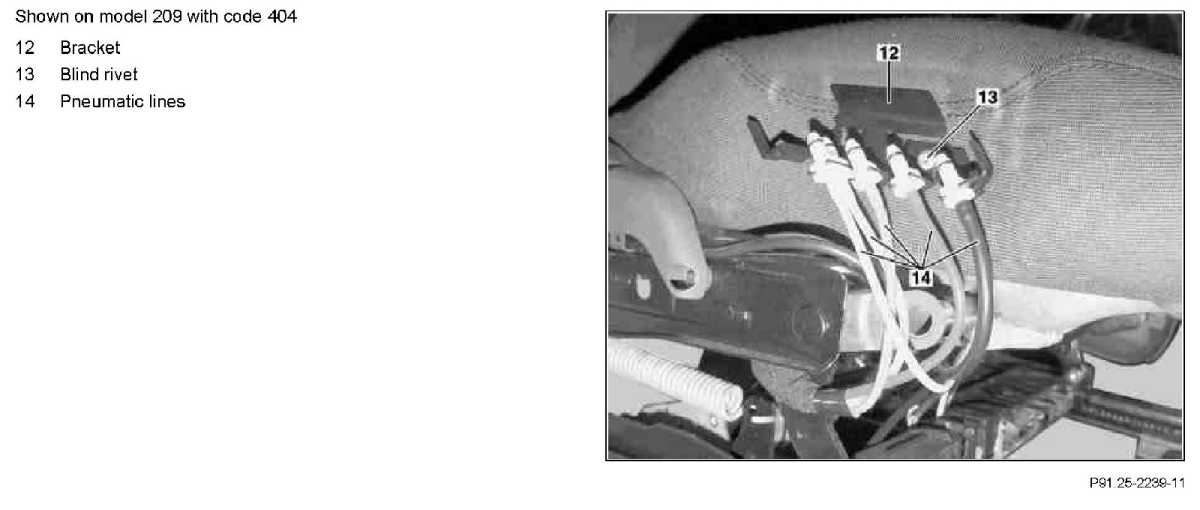

Part 1:

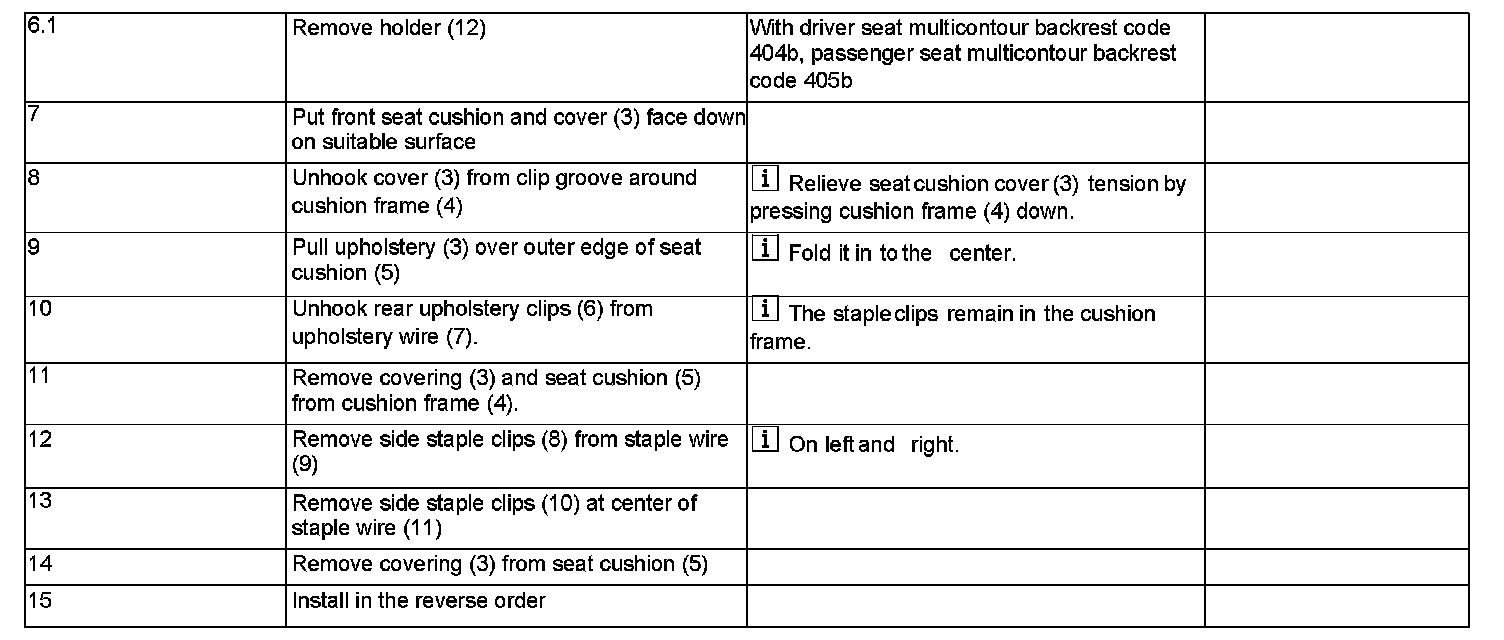

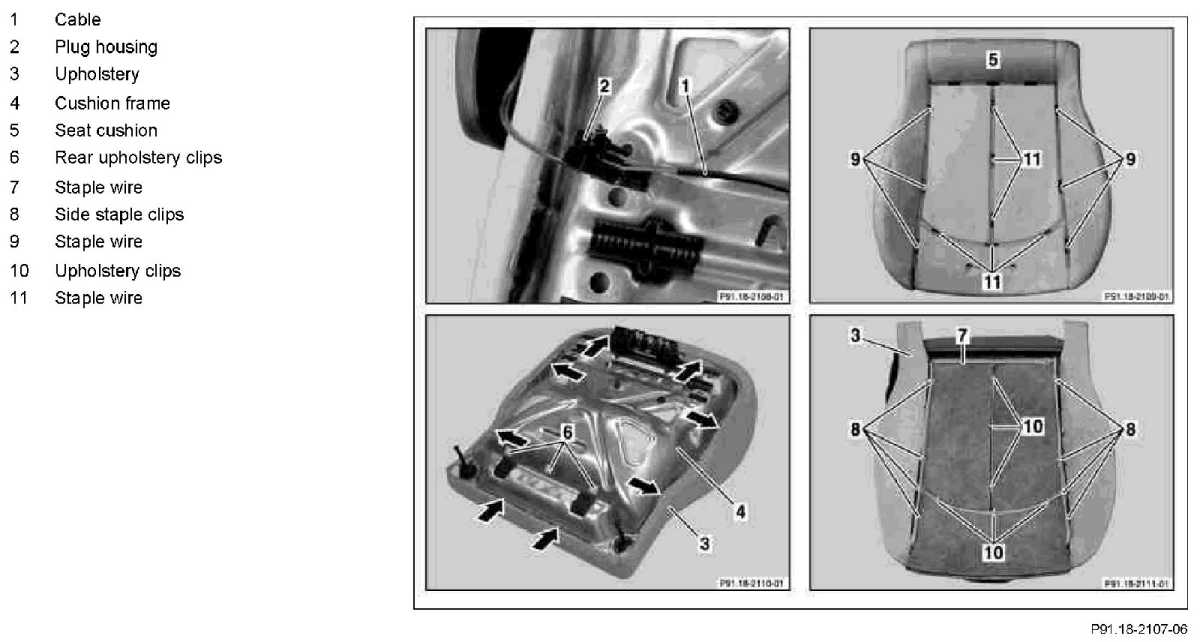

Part 2:
