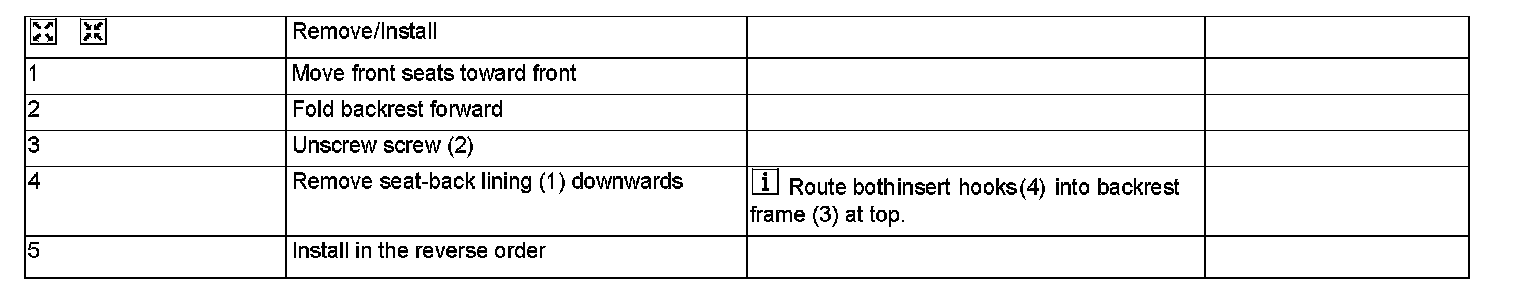

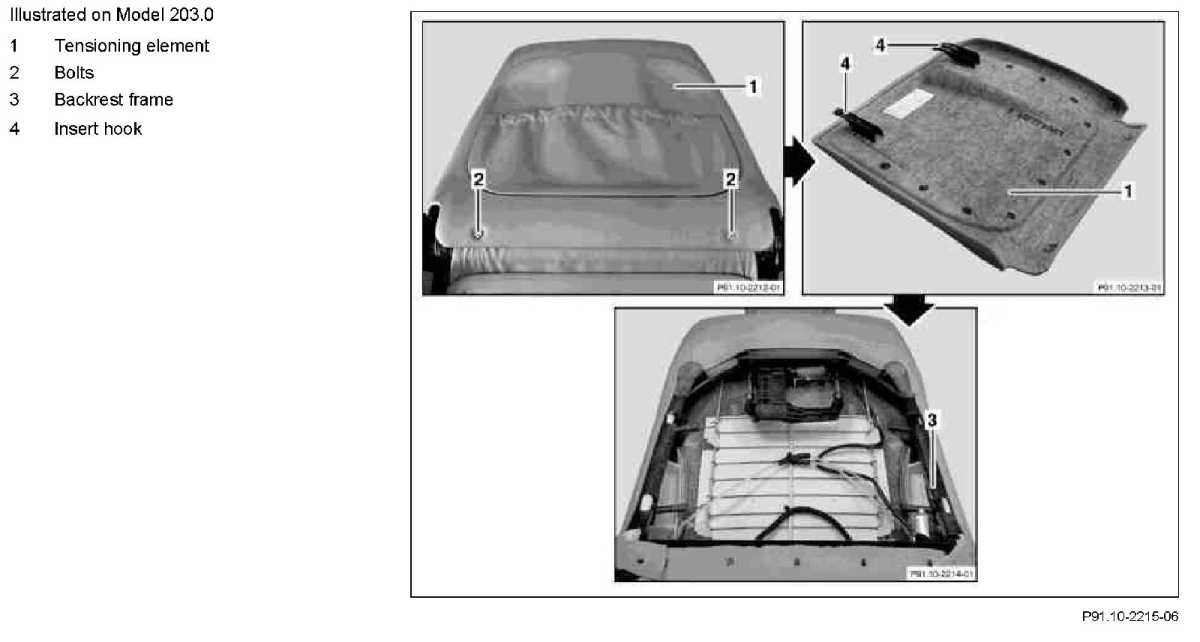

AR91.10-P-1910P Remove/Install Front Seat Backrest Seat-Back Lining



AR91.10-P-1910P Remove/Install Front Seat Backrest Seat-Back Lining
- except CODE (P98) Black Series [models 209]
