Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Service and Repair >> AR91.29-P-1431QBS Remove/Install Backrest Motor For Front Seat

AR91.29-P-1431QBS Remove/Install Backrest Motor For Front Seat



AR91.29-P-1431QBS Remove/Install Backrest Motor For Front Seat
- with CODE (P98) Black Series

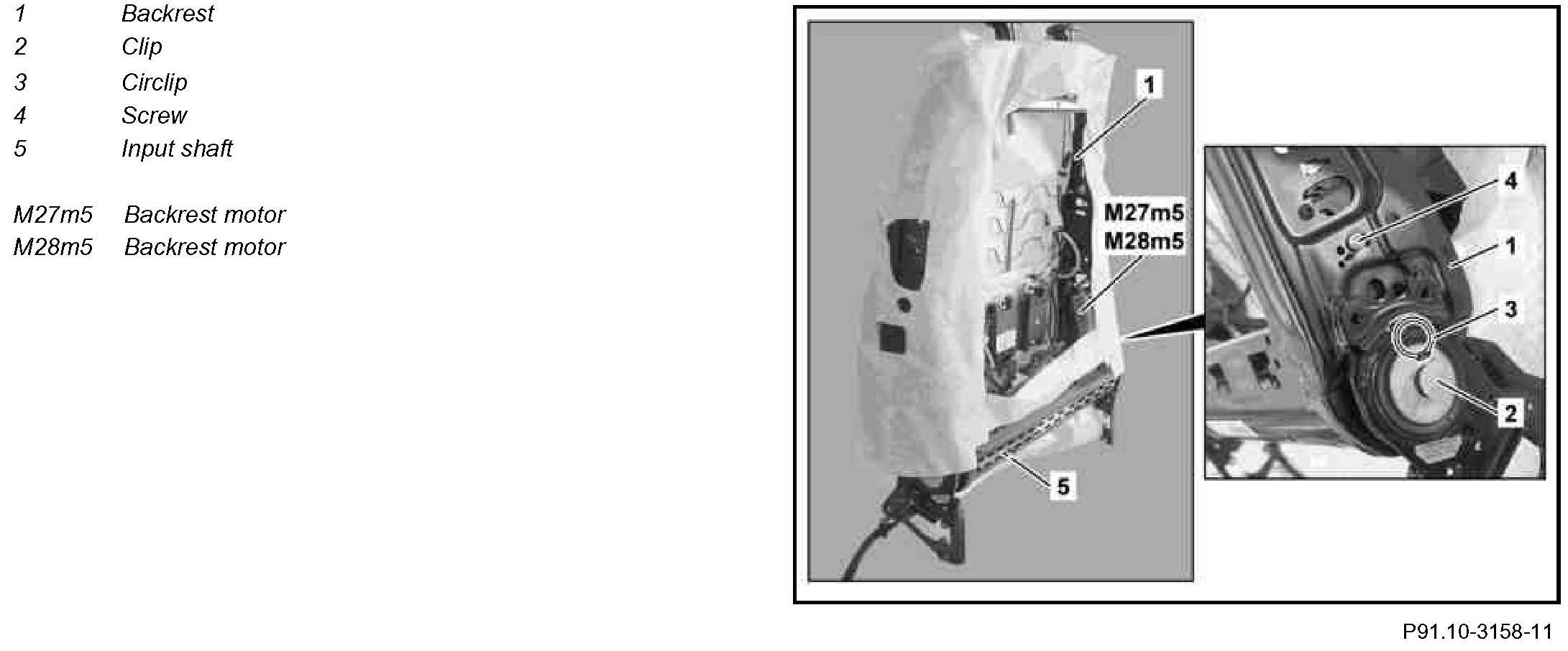

Component Identification:

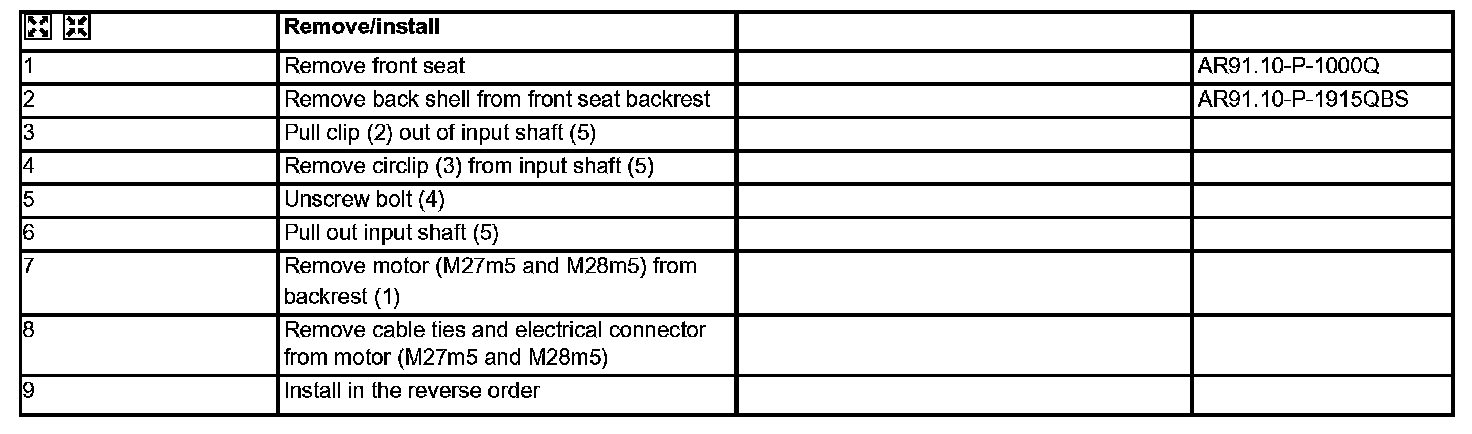

Steps 1 - 9:
