Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Service and Repair >> AR91.29-P-1420P Remove/Install Front Seat (Seat Cushion) Adjusting Motors

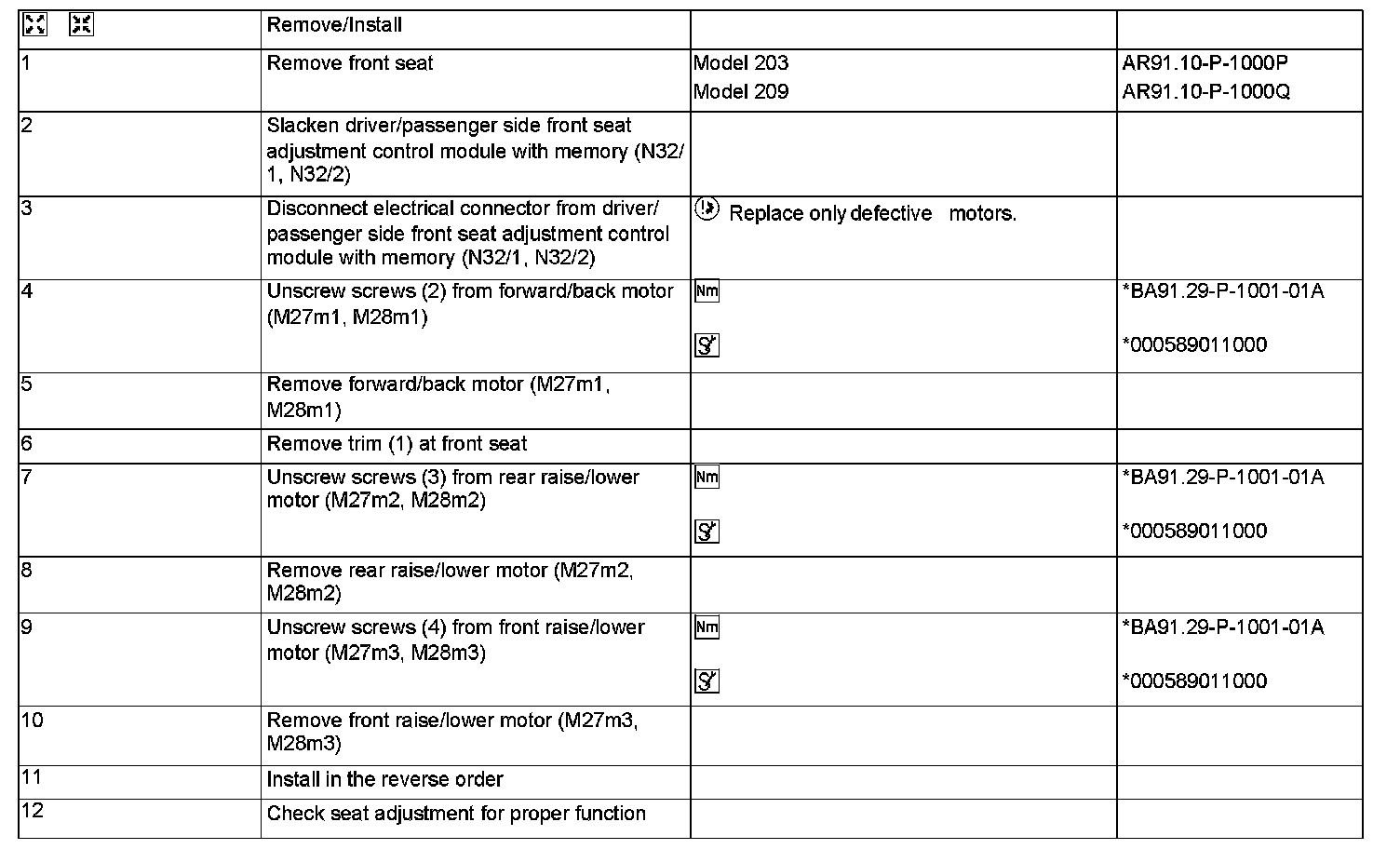

AR91.29-P-1420P Remove/Install Front Seat (Seat Cushion) Adjusting Motors



AR91.29-P-1420P Remove/Install Front Seat (Seat Cushion) Adjusting Motors
- with CODE (241) Memory for electrically adjustable left front seat
- with CODE (242a) Memory for electrically adjustable right front seat
- with CODE (275a) Memory package (driver's seat, steering column, mirrors)

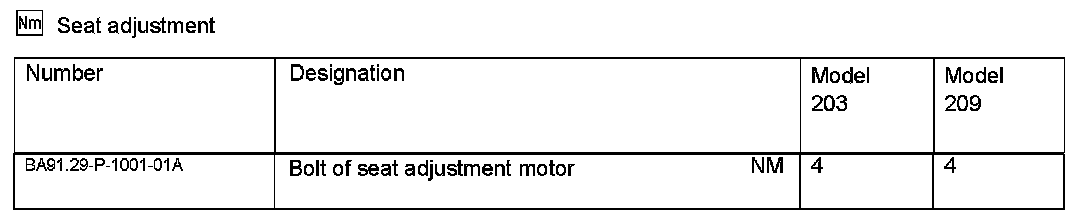

Seat Adjustment:
