FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Head Restraint System >> Head Rest >> Service and Repair >> Removal and Replacement >> AR91.16-P-1780P Remove/Install Rear Head Restraint Mechanical System

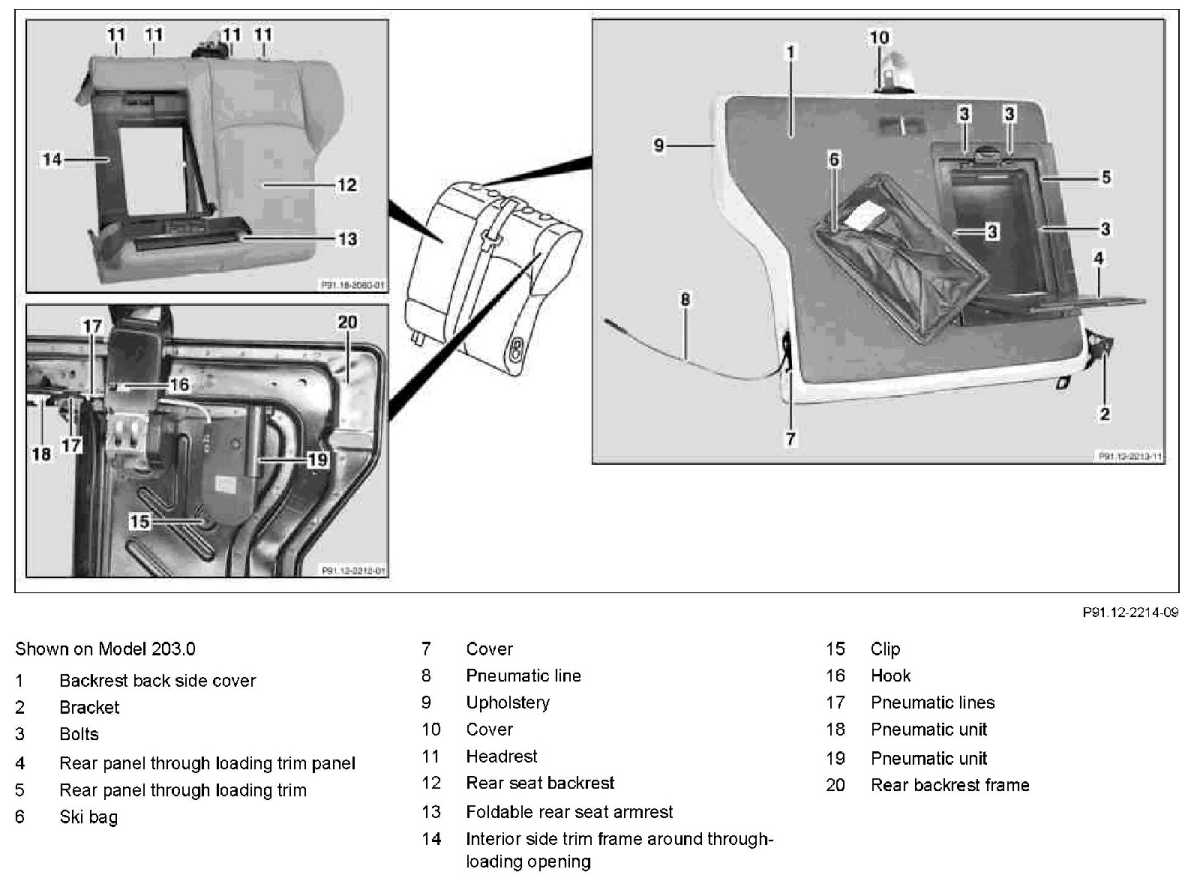

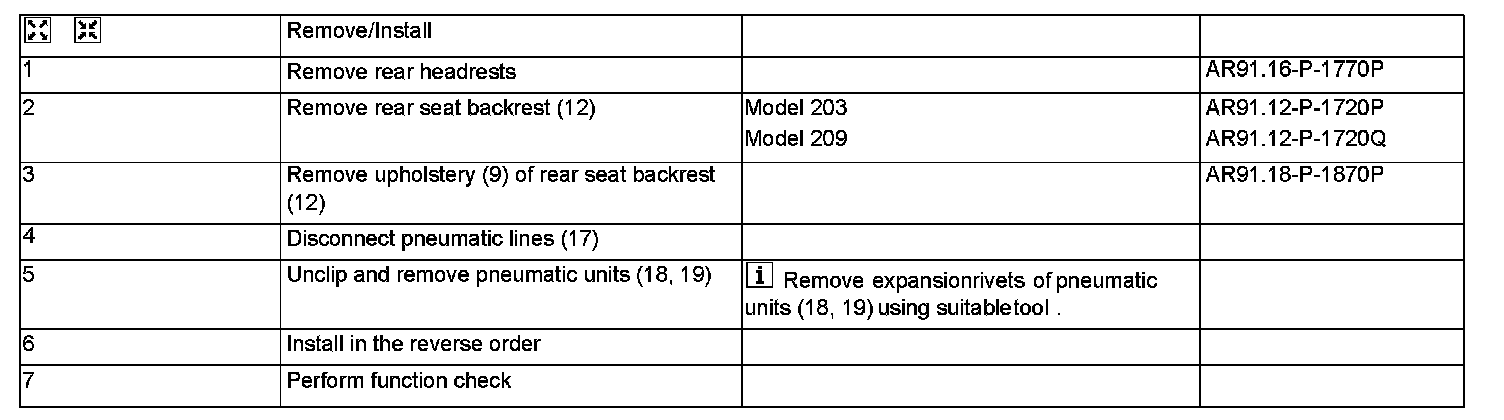

AR91.16-P-1780P Remove/Install Rear Head Restraint Mechanical System



AR91.16-P-1780P Remove/Install Rear Head Restraint Mechanical System
- except CODE (P98) Black Series [models 209]
