Partially Electric Seat Adjustment (ESA) PE91.29-U-2003BA

Partially Electric Seat Adjustment (ESA) PE91.29-U-2003BA
- with CODE (P98) Black Series

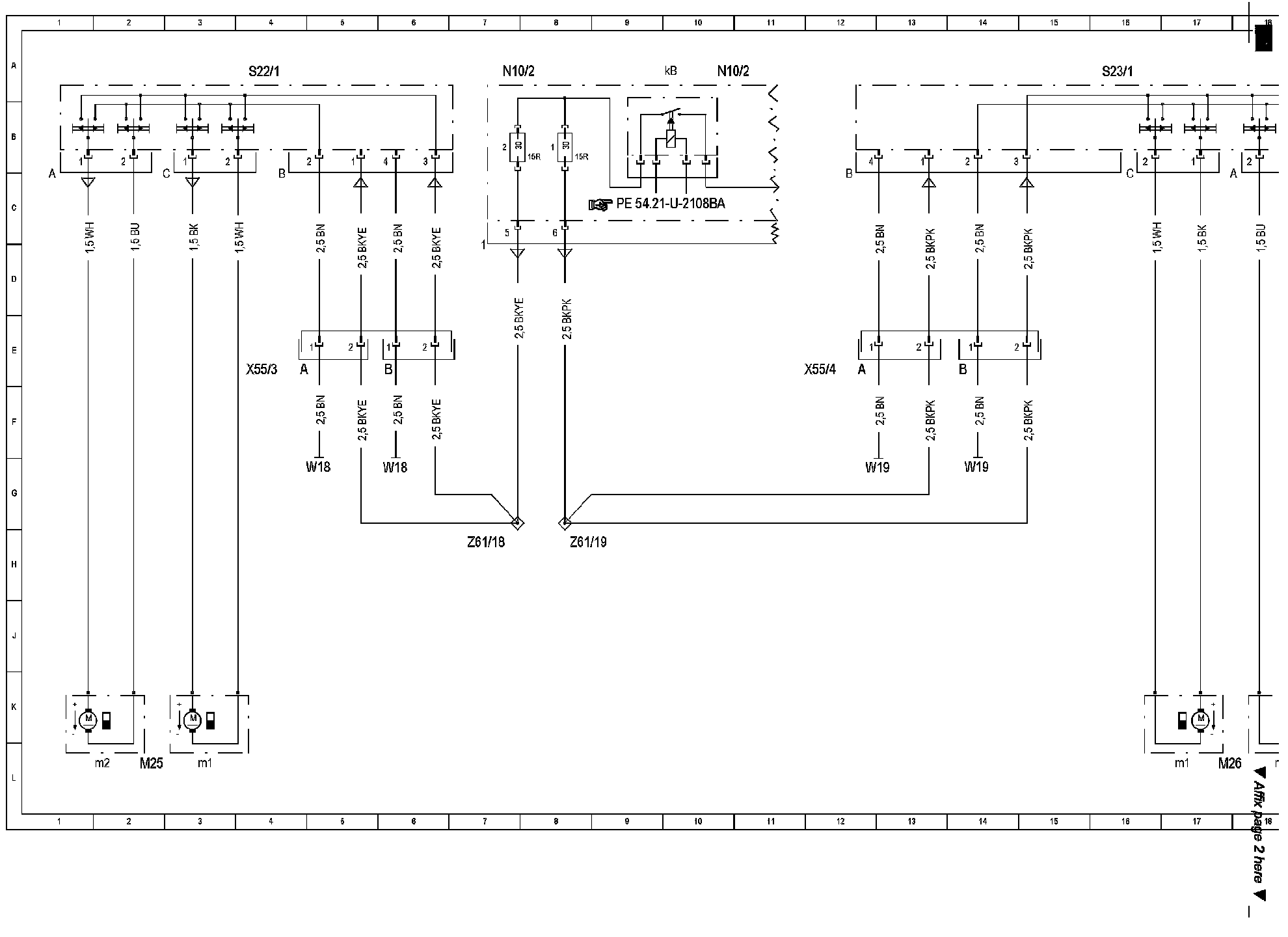

Wiring Diagram (Part 1):

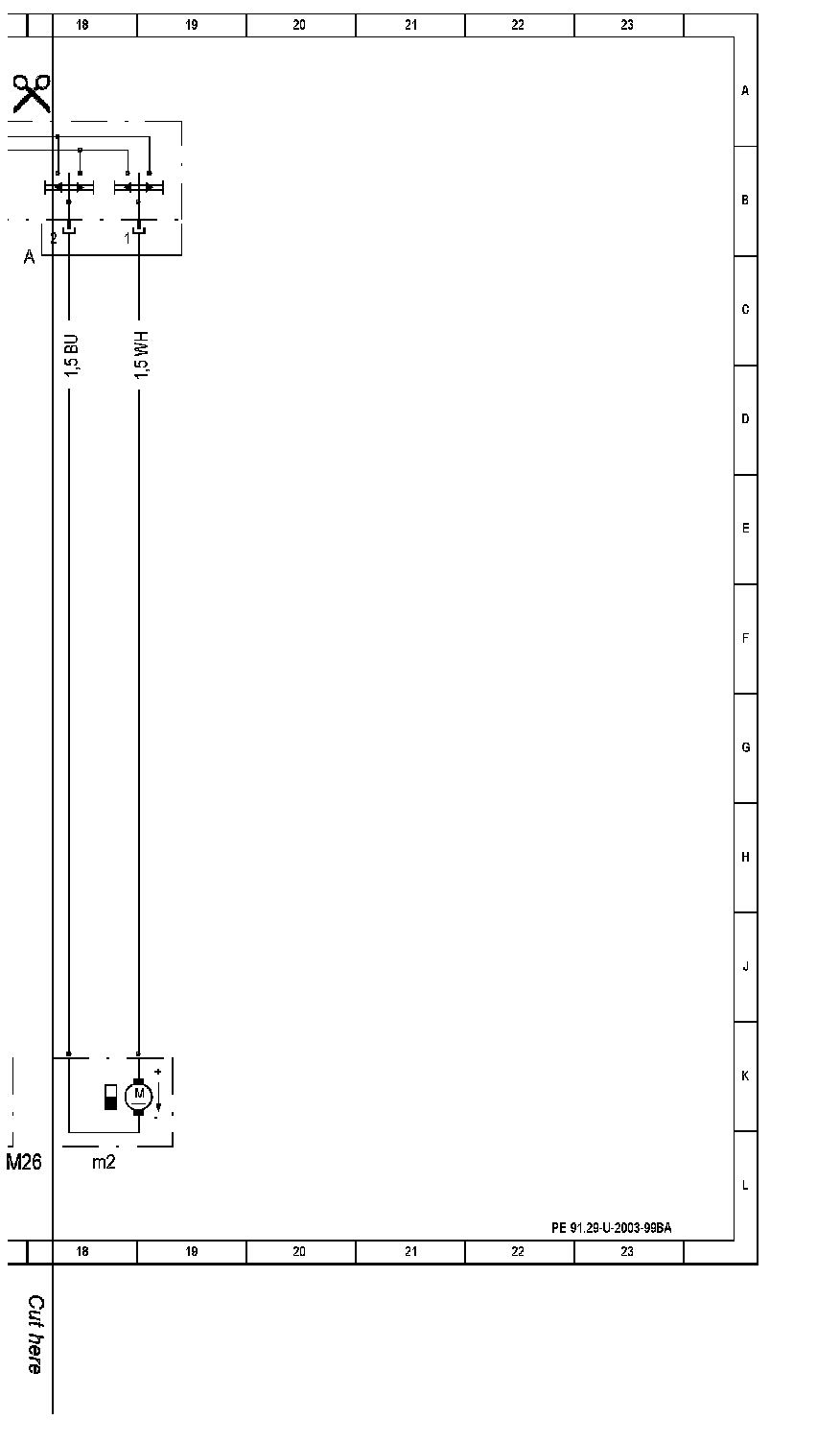

Wiring Diagram (Part 3):

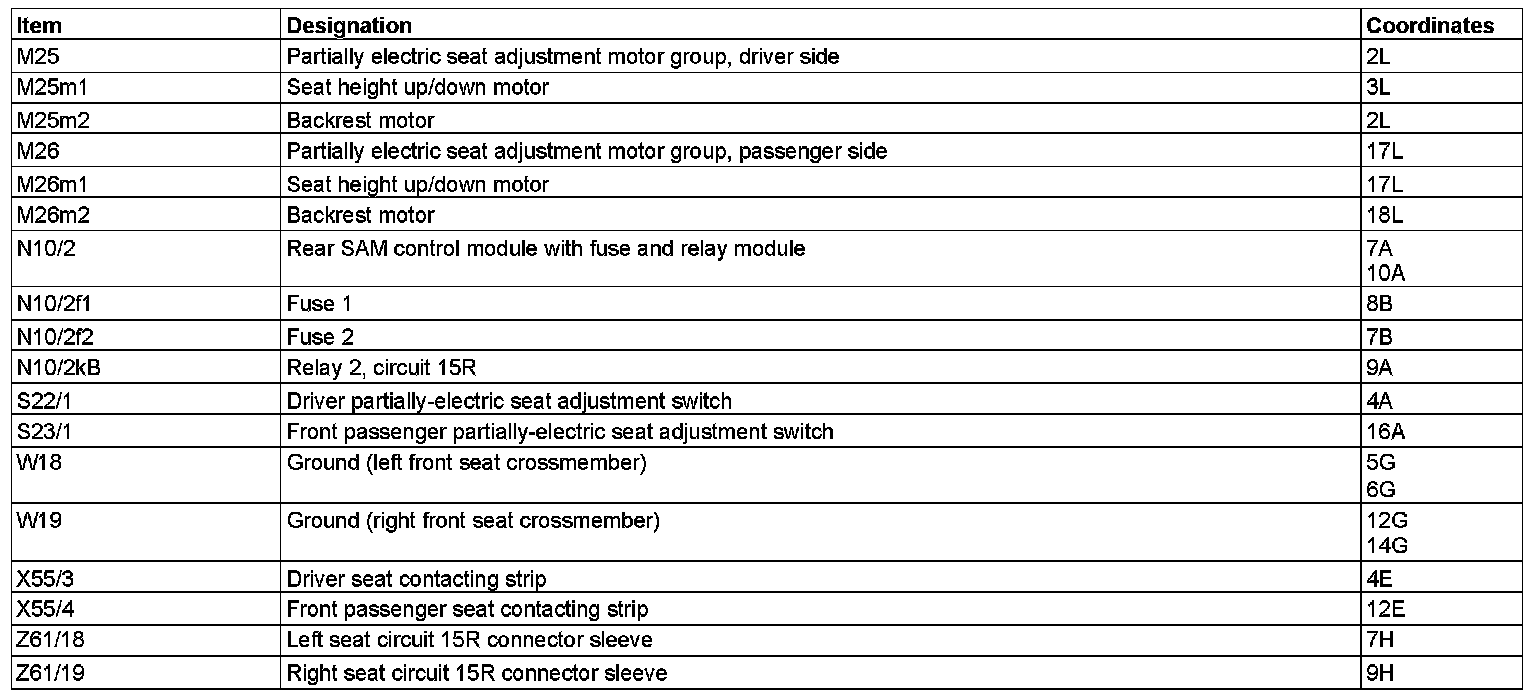

Component Description/Coordinates, M25 To Z61/19:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
