GF91.30-P-0002QA Electric Seat Ventilation, Function

GF91.30-P-0002QA Electric Seat Ventilation, Function
- with CODE (401a) Front luxury seats, including seat heating and seat ventilation
- as of 1.6.04

Component Identification:

Function
The seat ventilation integrated in the driver seat and in the front passenger seat make it possible to ventilate the seat cushion and the backrest in three ventilation stages.

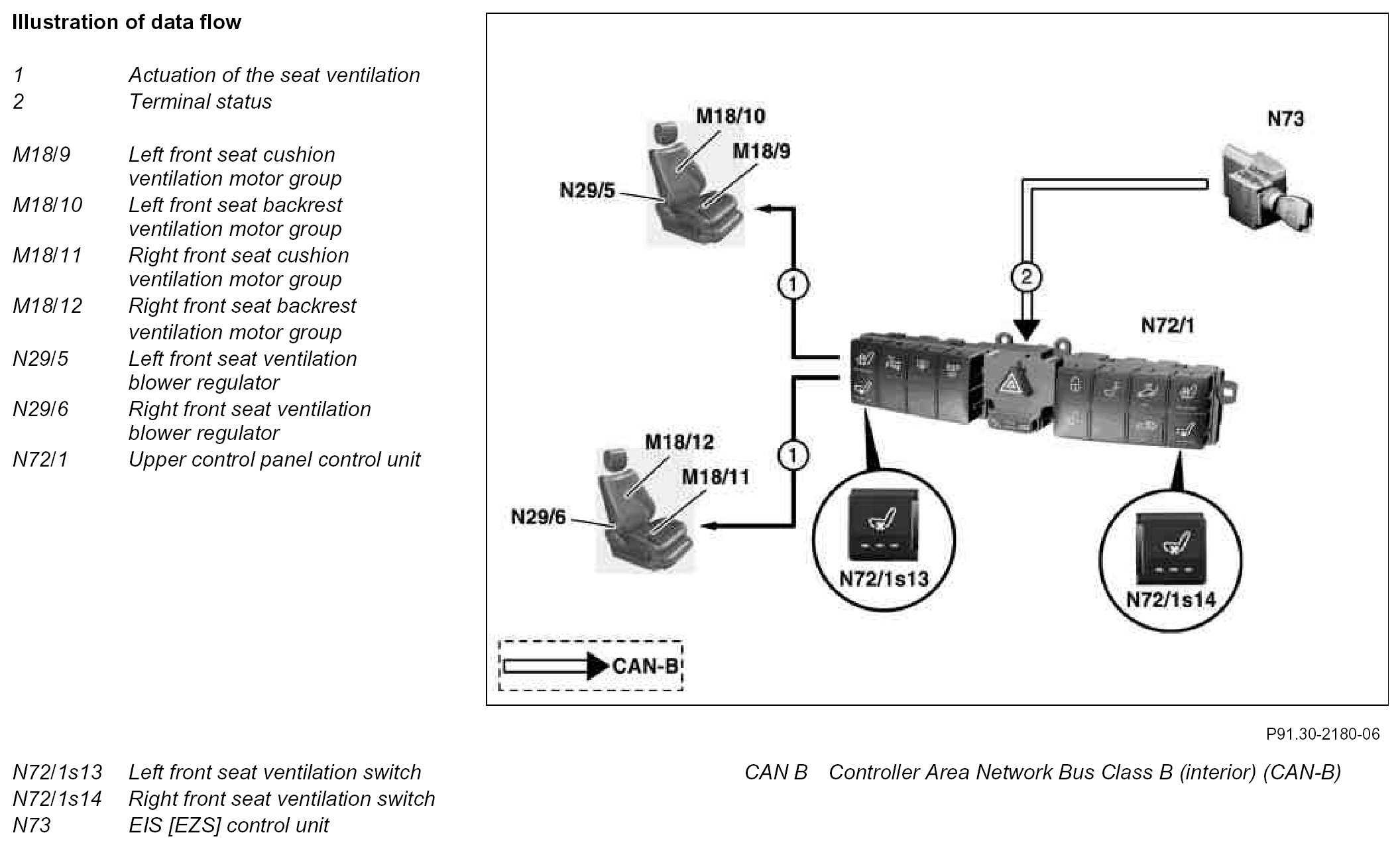

The seat ventilation is actuated via the left front seat ventilation switch (N72/1s13) or the right front seat ventilation switch (N72/1s14) in the upper control panel control unit (N72/1). The left front seat cushion ventilation motor group (M18/9) and the left front seat backrest ventilation motor group (M18/10) are actuated by operating the left front seat ventilation switch (N72/1s13) via the left front seat ventilation blower regulator (N29/5), or the right front seat cushion ventilation motor group (M18/11) and the right front seat backrest ventilation motor group (M18/12) are actuated by operating the right front seat ventilation switch (N72/1s14) via the right front seat ventilation blower regulator (N29/6).

The function conditions are indicated via the three illuminated blue LEDs in the left front seat ventilation switch (N72/1s13) or in the right front seat ventilation switch (N72/1s14).

During comfort opening with the transmitter key (infrared signal), the seat ventilation of the driver seat is switched on in stage 3 for 5 min.
