Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> GF91.25-P-0001-04Q Multicontour Seat (MCS), Location of Components

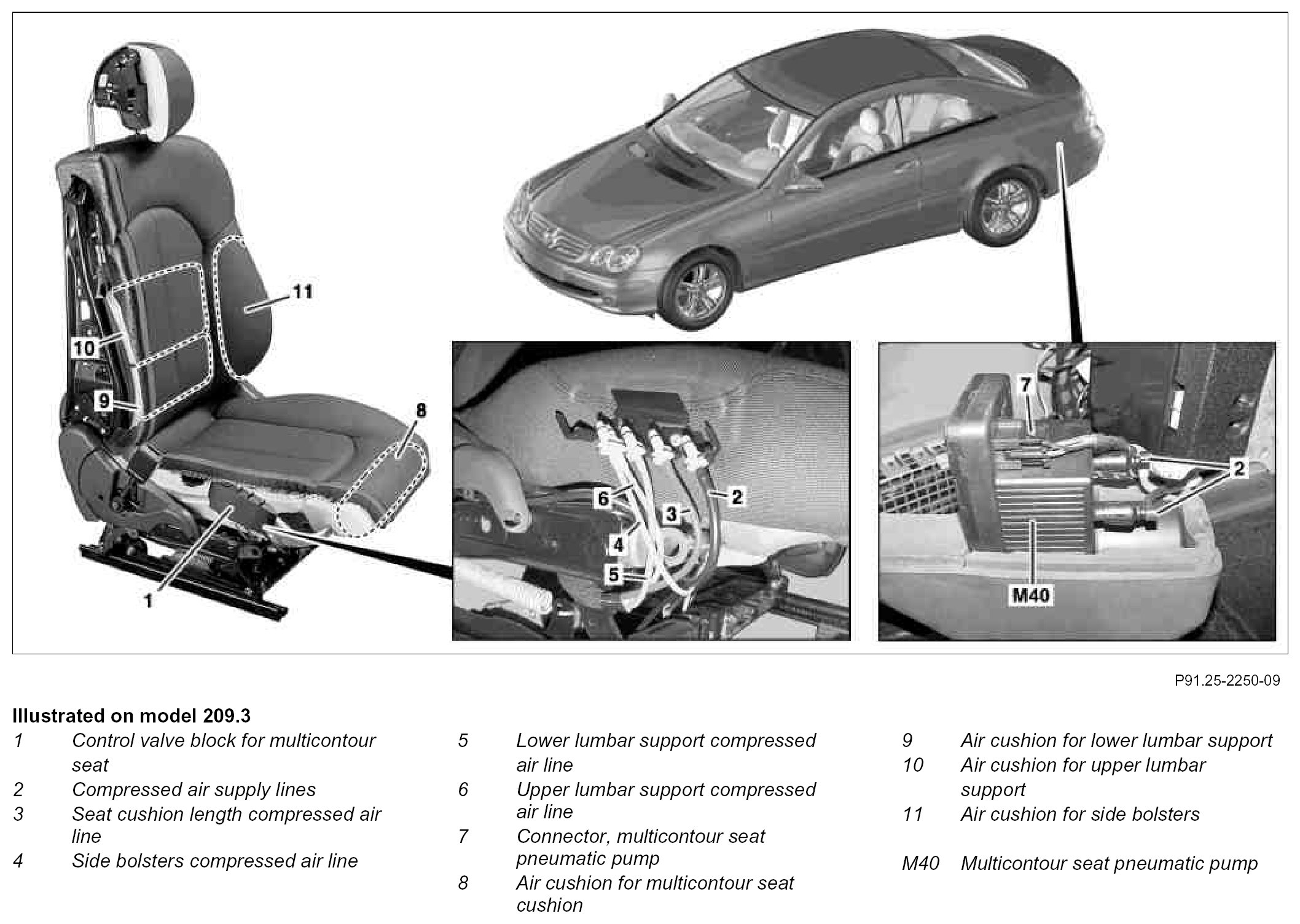

GF91.25-P-0001-04Q Multicontour Seat (MCS), Location of Components



GF91.25-P-0001-04Q Multicontour Seat (MCS), Location Of Components
- with CODE (404) Left multicontour seat
- with CODE (405) Right multicontour seat

Component Identification:
