Sunroof / Moonroof Weatherstrip: Service and Repair

AR77.20-P-1300Q Remove/Install Seal For Sliding/Pop-Up Roof Panel
- with CODE (414a) Electric glass sliding/pop-up roof







Remove

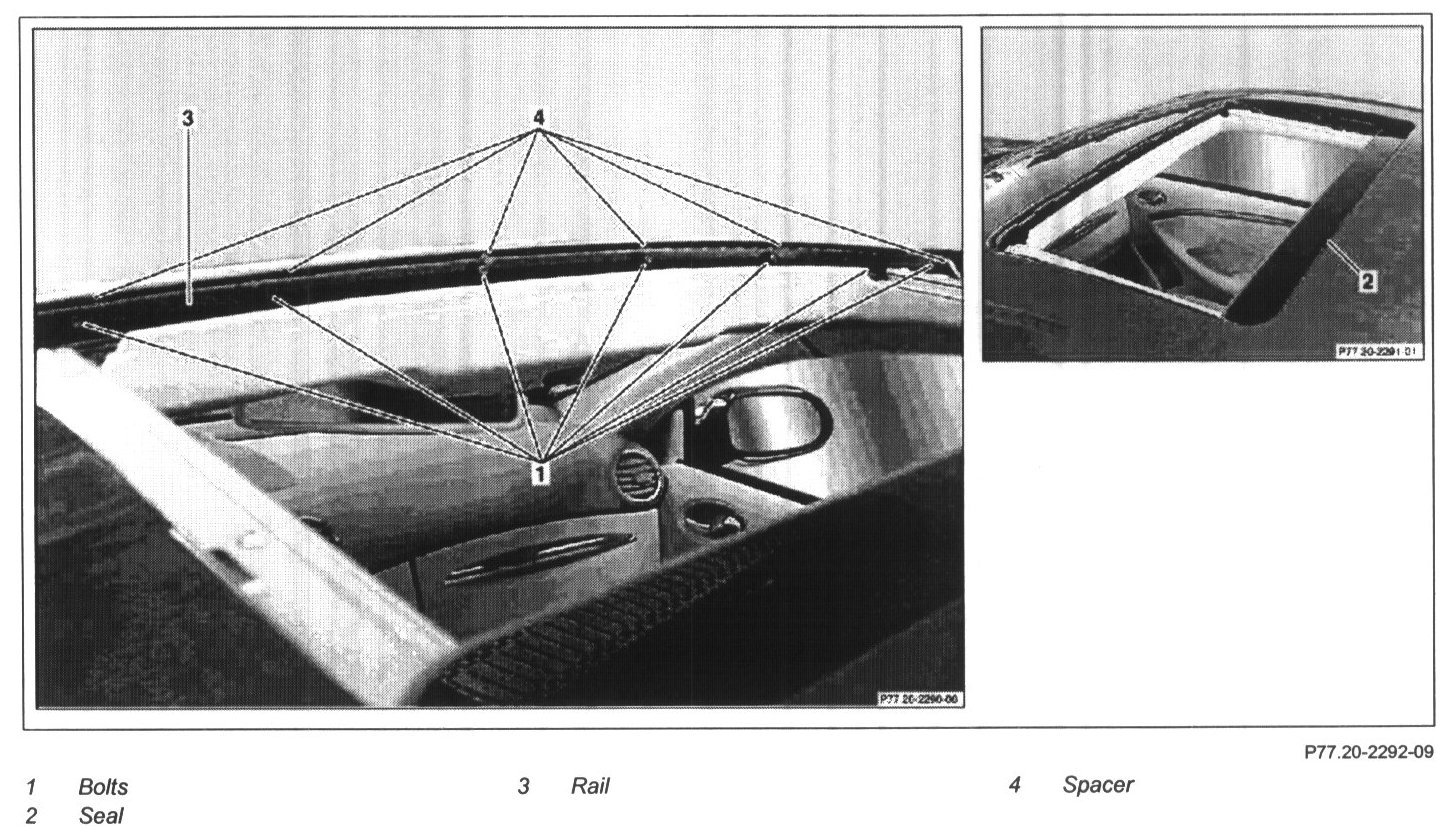

1 Remove wind deflector
2 Loosen screws (1)
3 Pull out seal (2)

Install
4 Push up rail (3)

NOTE: Push up rail (3) until the spacers (4) fit closely at roof.

5 Tighten screws (1)
6 Insert seal (2)

CAUTION!
Use lubricant, in order to avoid damage to the seal (2) and therefore prevent leakage.

NOTE: Insert seal (2) with corrugation toward top.
