Sunroof / Moonroof Panel: Adjustments

AR77.20-P-1100Q Adjusting Sliding/Pop-Up Roof Panel
- with CODE (414a) Electric glass sliding/pop-up roof







1 Detach bellows on both sides
2 Close sliding / pop-up roof

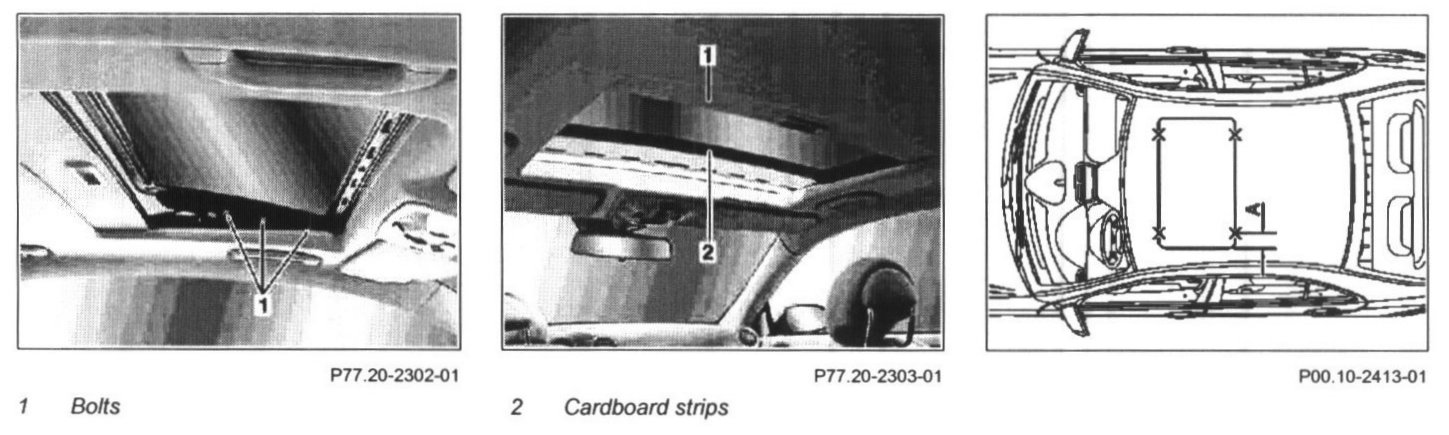

3 Loosen screws (1)
4 Insert cardboard strips (2) into rear sealing joint.

NOTE: The cardboard strips (2) have a length of approx. 500 mm and a thickness of approx. 2 mm.

5 Adjust gaps
6 Carry out height adjustment

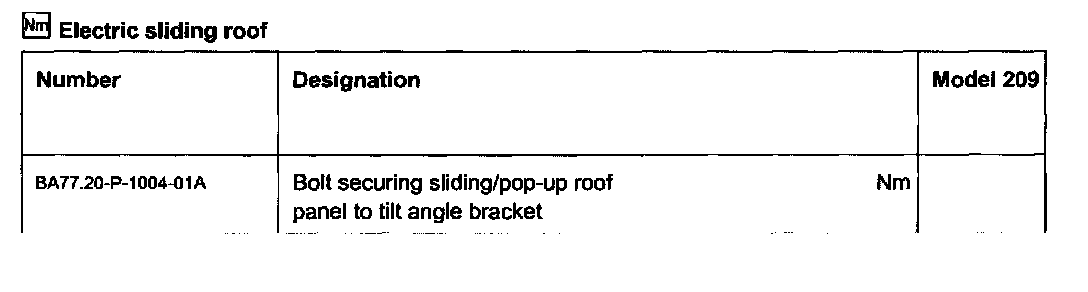

7 Tighten screws (1)

Electric Sliding Roof:

8 Synchronize sliding/pop-up roof

NOTE: To synchronize, move sliding/pop-up roof to pop-up position and hold switch down for 1s.

9 Check sliding/pop-up roof for proper function and fit
10 Install in the reverse order
