Sunroof / Moonroof Motor: Service and Repair

AR77.20-P-1800Q Remove/Install Sliding Roof Drive
- with CODE (414a) Electric glass sliding/pop-up roof







1 Close sliding/pop-up roof
2 Withdraw ignition key

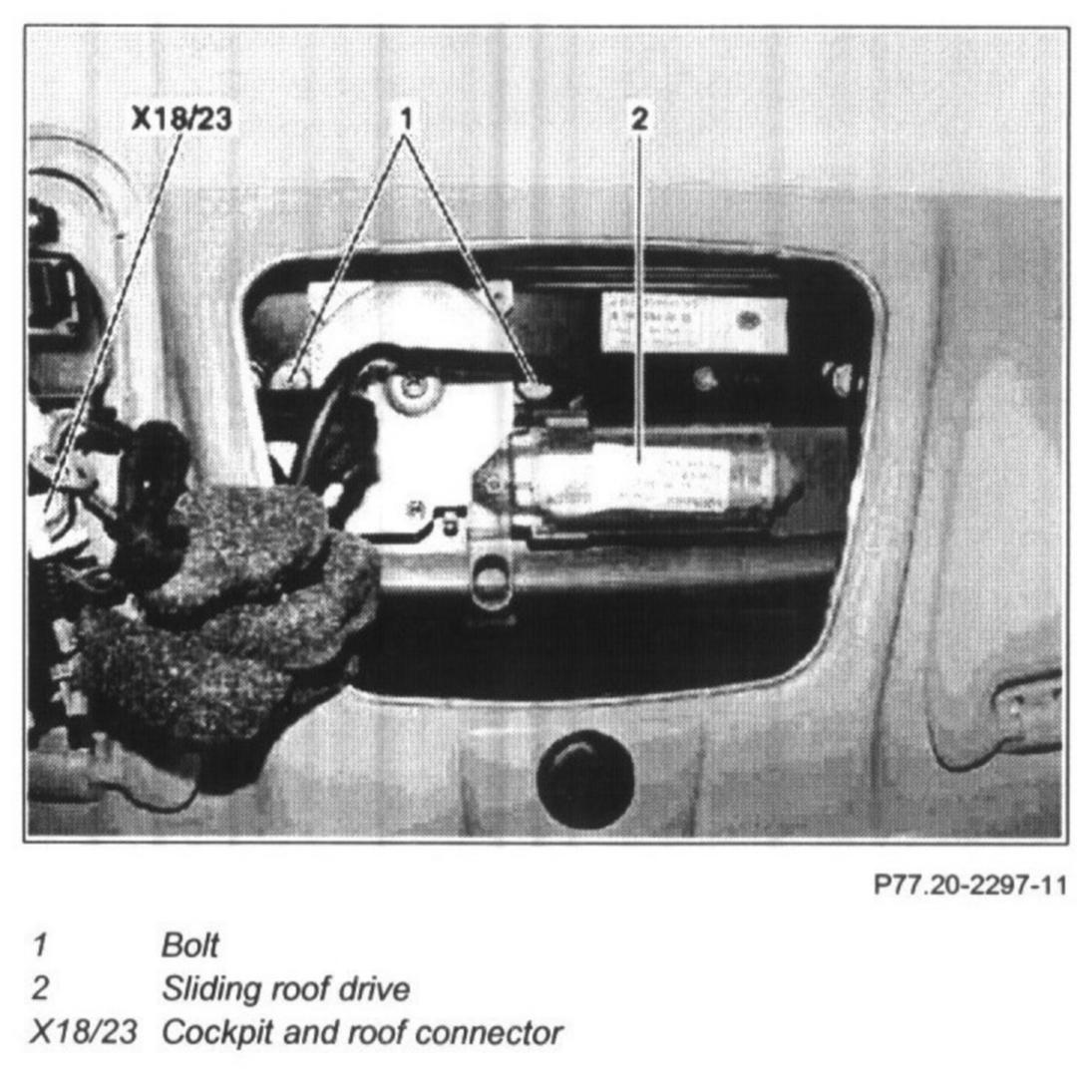

3 Unplug cockpit and roof connector (X18/23)

NOTE: See Remove/Install overhead control panel control module.

4 Unscrew screws (1)
5 Remove sliding roof drive (2)
6 Install in the reverse order
7 Normalize sliding/pop-up roof
