Sunroof / Moonroof Lift Mechanism: Service and Repair

AR77.20-P-1700Q Remove/Install Tilting Bracket on Sliding/Pop-Up Roof
- with CODE (414a) Electric glass sliding/pop-up roof

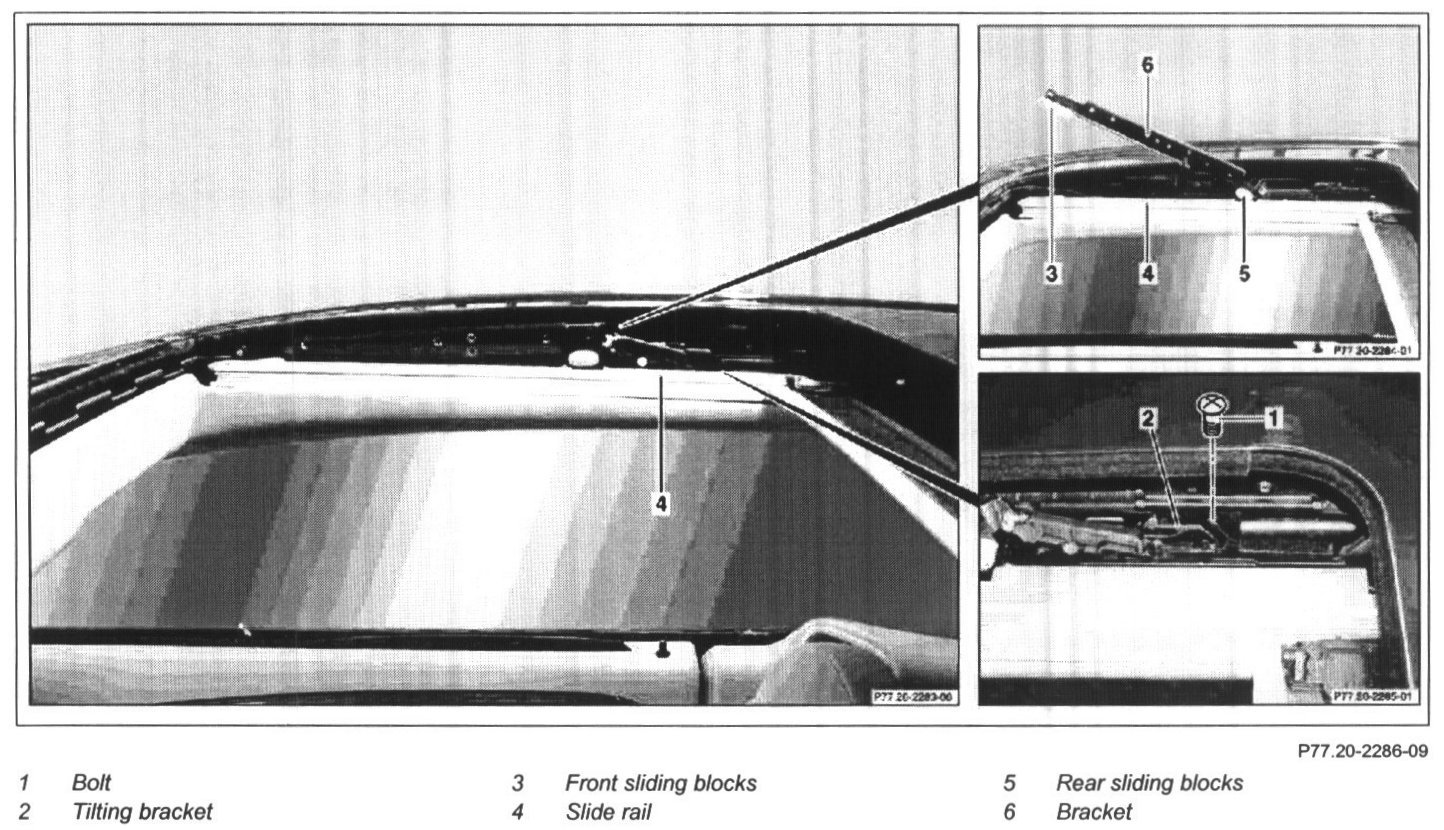

1 Remove water drain trough
2 Unscrew screws (1)
3 Push tilting bracket (2) toward rear

NOTE: Until the front sliding block (3) can be swiveled out of the slide rail (4)

4 Push tilting bracket (2) toward front

NOTE: Until the rear sliding block (5) can be taken out through the opening in the slide rail (4) toward top.

5 Push tilting bracket (2) approx. 30 mm toward front and take out of slide rail (4)
6 Remove bracket (6) from tilting bracket (2)
7 Install in the reverse order
8 Check for proper function
