AR77.20-P-1000Q Remove/Install Sliding/Pop-Up Roof Panel

AR77.20-P-1000Q Remove/Install Sliding/Pop-Up Roof Panel
- with CODE (414a) Electric glass sliding/pop-up roof







DANGER!
Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

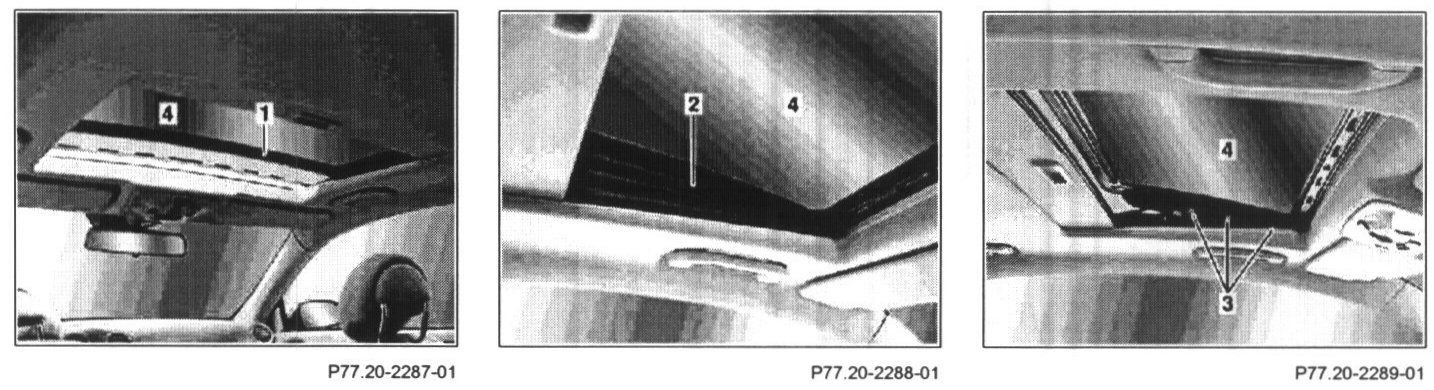

1 Remove cover (1)

2 Move sliding/pop-up roof to tilt position
3 Detach bellows (2) on both sides

NOTE: Do not damage bellows (2).

4 Unscrew screws (3) on both sides
5 Remove sliding/pop-up roof panel (4)
6 Install in the reverse order
7 Adjust sliding/pop-up roof panel
