Sunroof / Moonroof Cable: Service and Repair

AR77.20-P-1400Q Remove/Install Control Cable
- with CODE (414a) Electric glass sliding/pop-up roof







DANGER!
Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Remove water drain funnel
2 Remove sliding roof drive

NOTE:

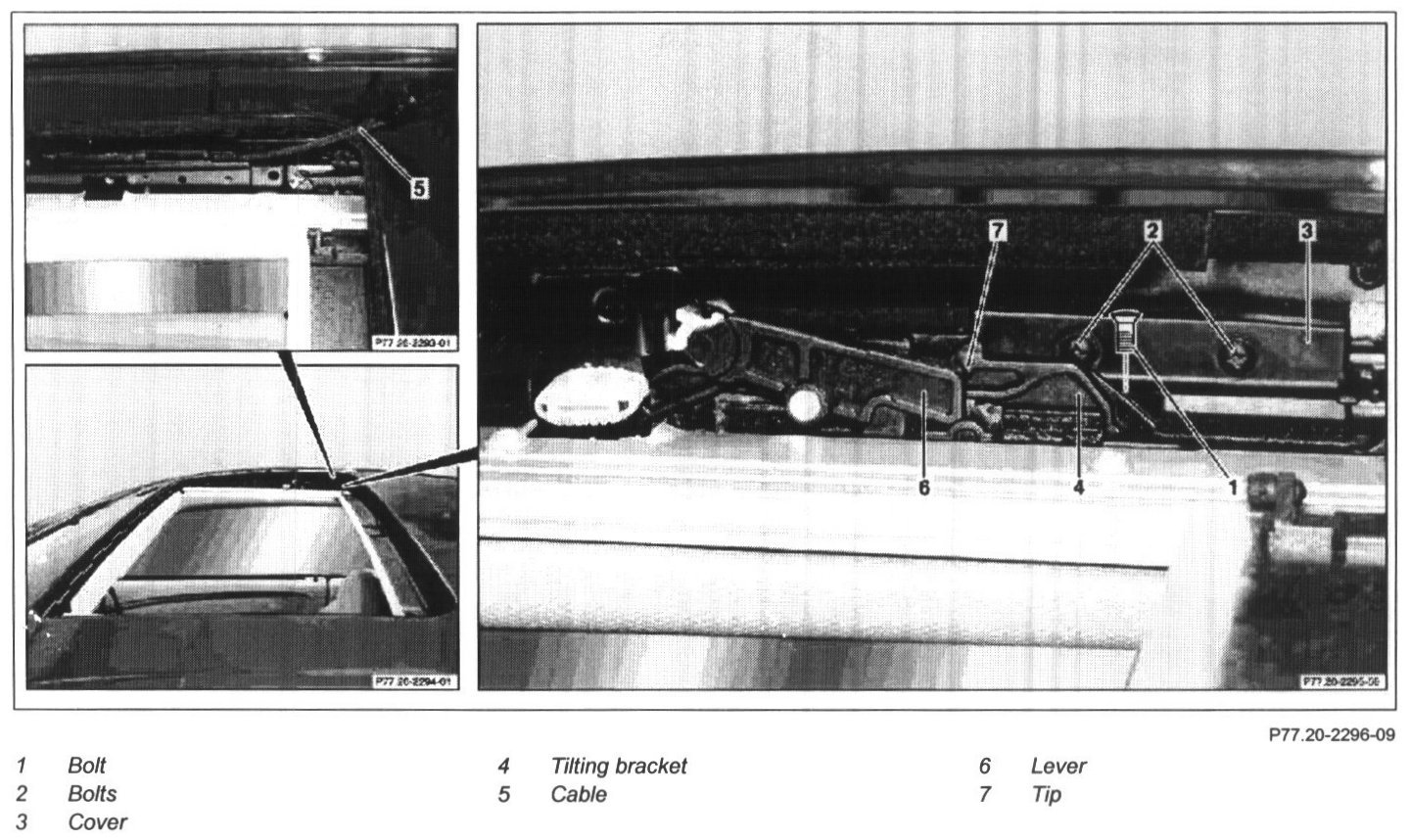

Installation: Displace tilting bracket (4) until the edge of lever (6) is matched with tip (7), then install sliding roof drive.

3 Unscrew screws (1)
4 Unscrew screw (2)
5 Remove cover (3)
6 Push tilting bracket (4) approx. 10 cm toward rear.
7 Pull out control cable (5) toward rear
8 Install in the reverse order
9 Check for proper function
