Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Power Mirror Motor >> Description and Operation >> GF88.79-P-4102Q Outside Rearview Mirror Adjustment Motor, Location/Purpose

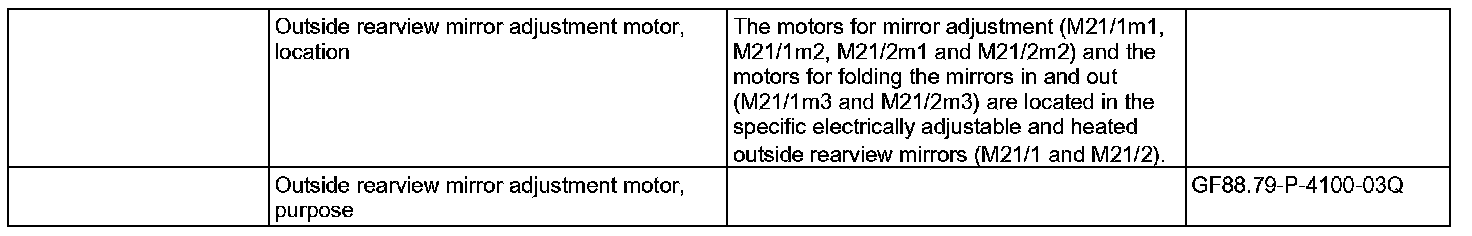

GF88.79-P-4102Q Outside Rearview Mirror Adjustment Motor, Location/Purpose



GF88.79-P-4102Q Outside Rearview Mirror Adjustment Motor, Location/Purpose

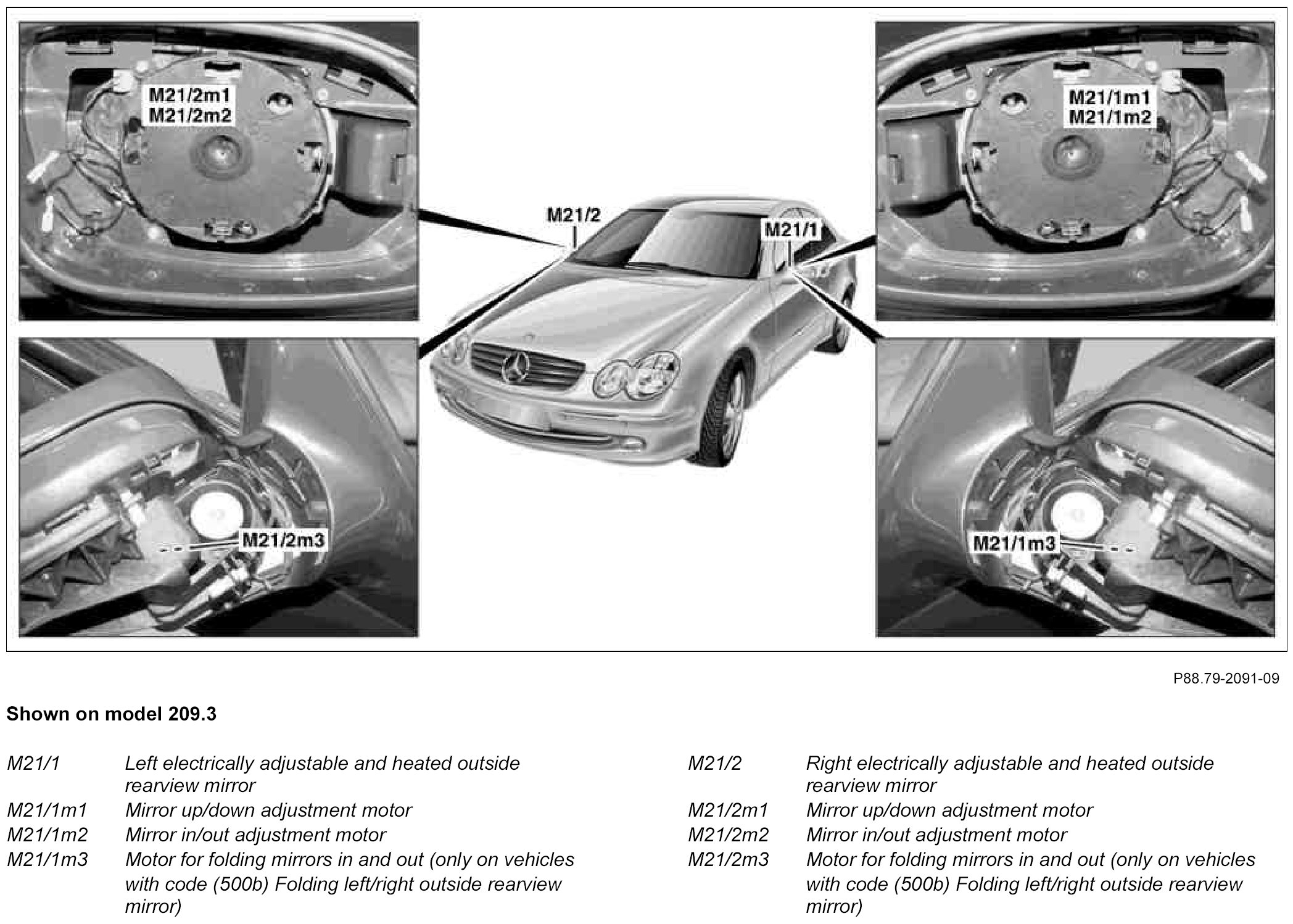

Component Identification:
