Function Diagram of Automatic Inside Rearview Mirror Dimming PE68.49-U-2050BA

PE68.49-U-2050BA Function Diagram Of Electrical System Of Automatic Inside Rearview Mirror Dimming
- with CODE (249) Automatically dimming inside rearview mirror

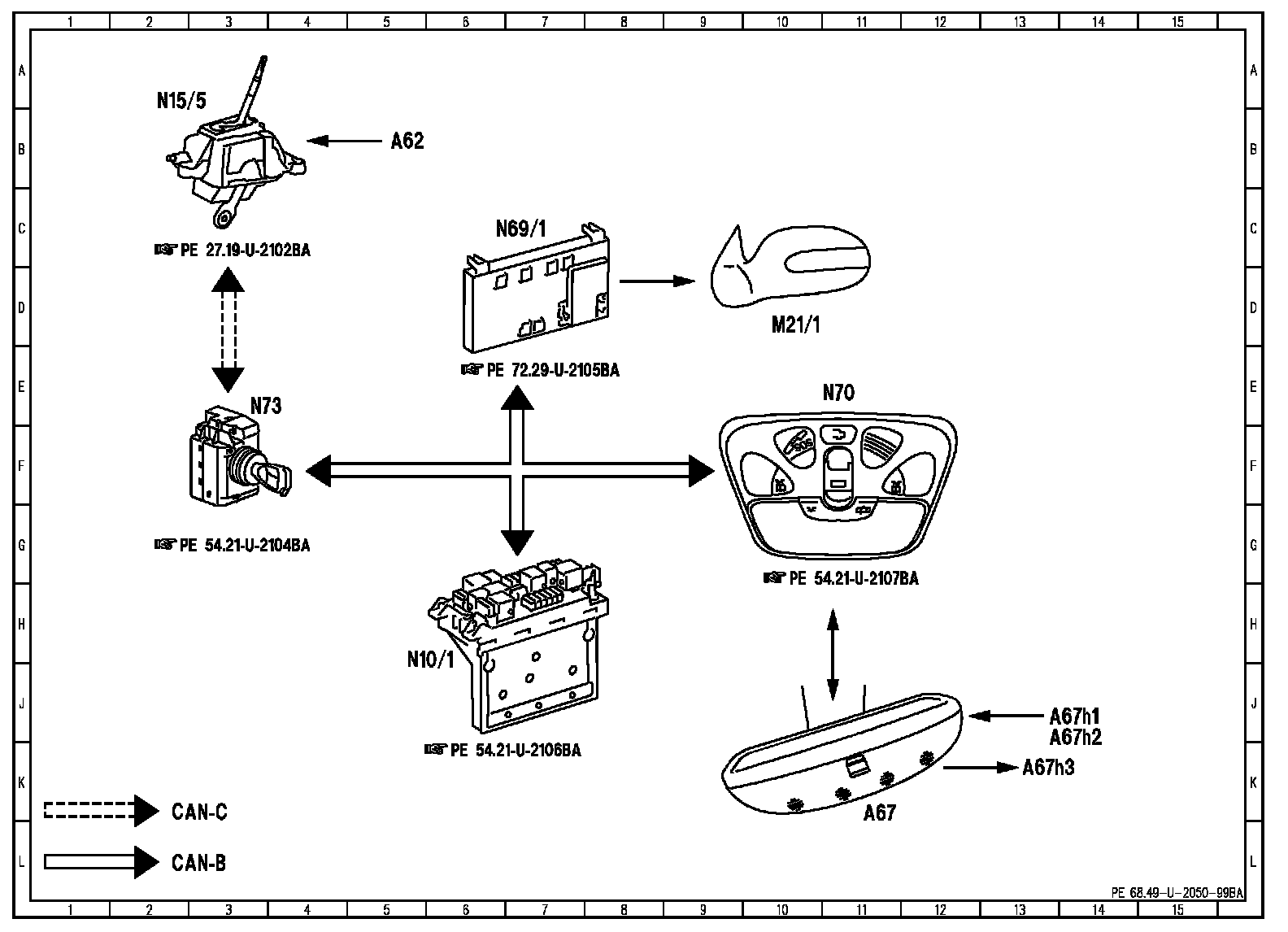

Wiring Diagram:

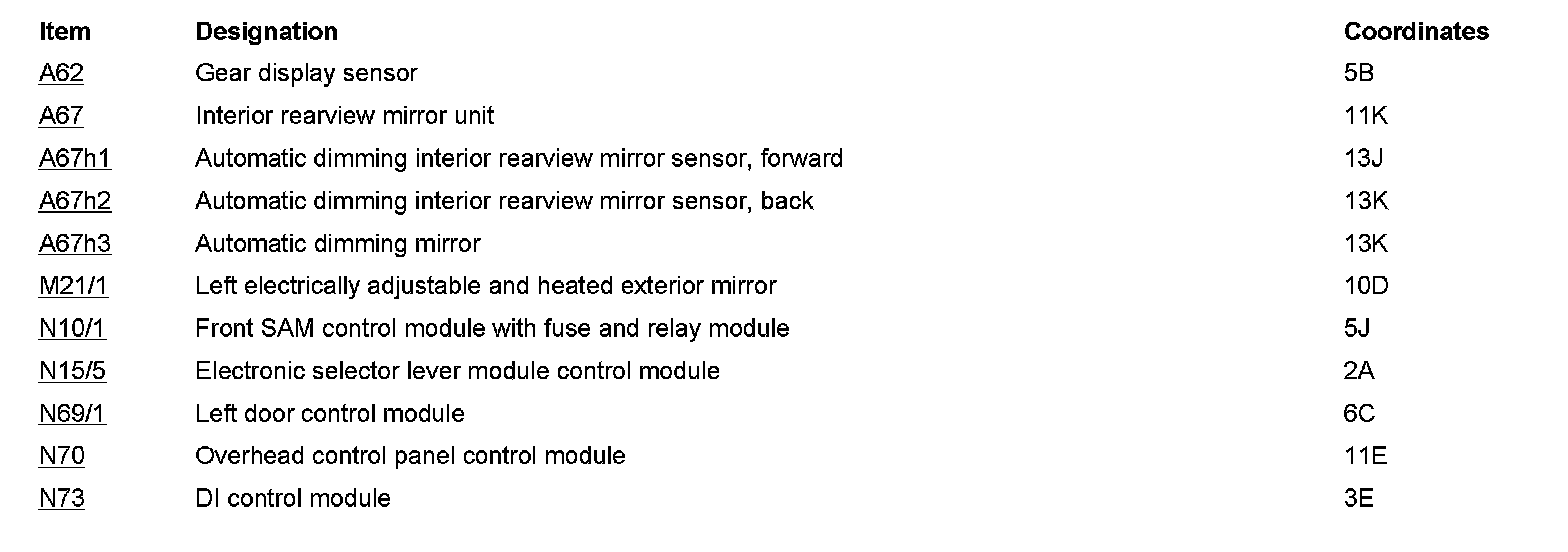

Component Description/Coordinates, A62 To N73:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
